Notebooks Won't Display Images with ArcGIS 3.1

Question

When running a little test notebook with ArcGIS 3.0.3, I am able to display images without issue.

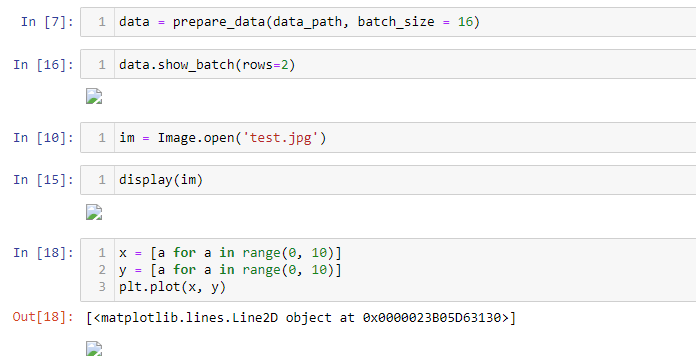

After updating the software to ArcGIS Pro 3.1.0 and running the exact same notebook, I get the following result:

Here are some other examples of failure to display content in an ArcGIS 3.1 notebook:

What could be causing this issue? Again, ArcGIS Pro 3.0.3 works perfectly fine, and updating to 3.1 breaks it.

DavidPinnick · Answer

I have the exact same problem.  IPython display renders HTML in ArcGIS Pro 3.03 but not in ArcGIS Pro 3.1.2.  Not sure why the discussion diverges to deep learning.  It seems IPython display functionality is broken in ArcGIS Pro 3.1.2.  I work at an agency and have very little control over how software is installed.  I also had an AddIn that worked for ArcGIS Pro 2.9.2 but not in ArcGIS Pro 3.03.  I asked an ESRI rep if it was a problem with the AddIn and the rep said that is was a problem with ArcGIS Pro 3.03.

ShaunWalbridge · Answer

OK, is there any chance that you have the deep learning installer laid down for Pro 3.0 still? If you follow the instructions under the "Upgrading from a Previous Version" section of https://github.com/Esri/deep-learning-frameworks/#installation you should be able to get a clean arcgispro-py3 to start with. Once you've confirmed that Pro 3.1 works without the deep learning installer, I would then try to add the 3.1 installer afterward. Unfortunately, this is a gap in our upgrade story as installing the deep learning packages doesn't force an uninstallation of the earlier deep learning packages. If you've already done this, I would uninstall both Pro and DL, then remove anything remaining as in step 3 of those instructions, and then add Pro 3.1 back. Sorry for the hassle!

LivSutton · Answer

Hi Shaun, thanks for your response!

I just tried using a standalone notebook with my arcgispro-py3 environment and it was able to display images, so it's only notebooks within Pro that I can't. Also, I had been using the default arcgispro-py3 environment both in 3.0.3 and in 3.1. I should also note that I'm having this problem on two separate systems--my desktop PC and work laptop. In both cases, the problem only occurs after updating Pro to 3.1.
