Project Packaging in Pro blocked by errors over nonexistent layers

JohnBranum

Attempting to Package my Project in ArcGIS Pro 2.9, i'm blocked by a long list of "High" errors claiming that the sources for Layers i've deleted are inaccessible (error #00003). Esri advises, "Hover over the analyzer message. Click the Options button that appears and click Remove Items With Errors", but "Remove Items With Errors" is not offered. What is offered is "Select Layer In The Contents Pane" which proceeds to reload the item that was long ago deleted.

Months after deleting these layers, the Project has been saved, closed, and reopened; the cache has been cleared (Project > Options > Display > Clear cache - checked, project resaved, closed, and reopened), and i have excluded Toolboxes and History Items, and i've unchecked "Share outside of organization". There are no other Jobs, and the package has no Attachments.

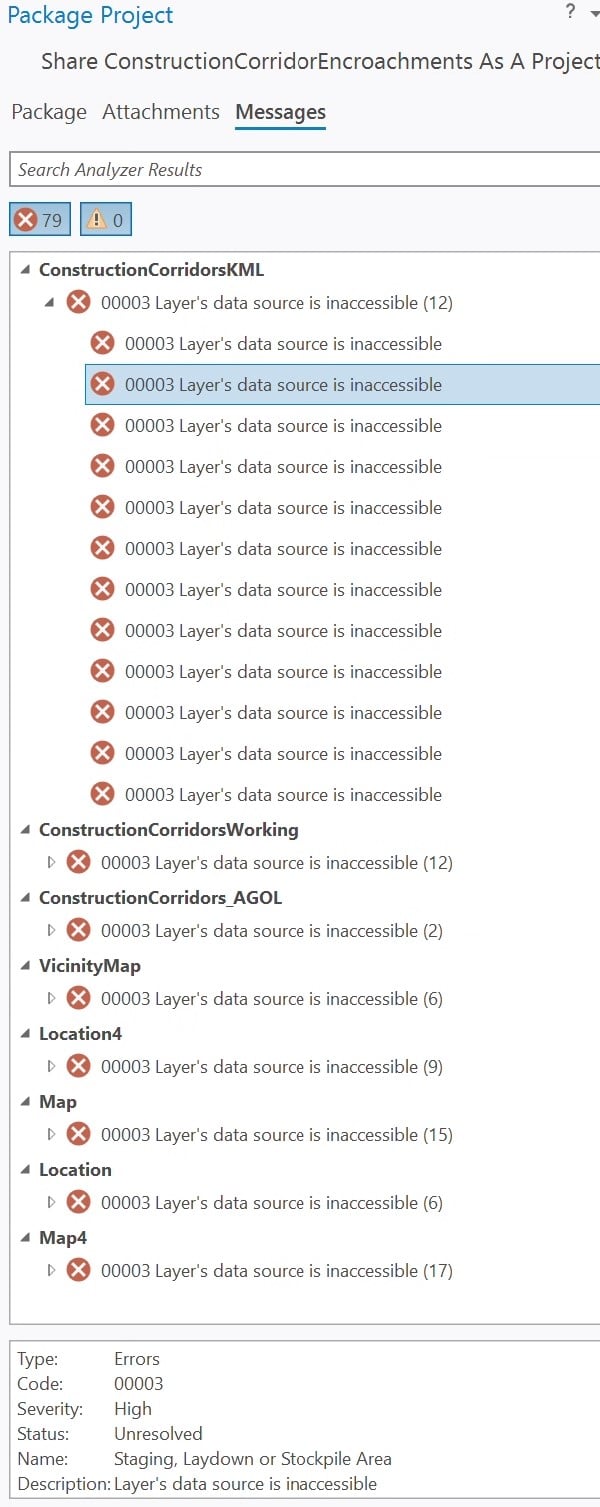

Screenshot 2023-02-10 115400.jpg

Any help...?

Find more posts tagged with

Accepted answers

All comments

jlay

Hello,

What version of ArcGIS Pro are you using? Have you upgraded to the latest version?

Can you please try using the Package Project GP tool? What happens?

Thank you,

Jonah

JohnBranum

Well thank you, Michael. I seem to remember doing that in Map as well, but sadly, it looks like a no-go in Pro. Oddly enough, the Saved As was slightly smaller than the original too.

mvolz47

This is based on my experiences in ArcMap with a similar type issue when publishing services. I have not yet encountered this issue in Pro.

I would record the mxd file size of the orginal file and the copied file and many times this operation drastically reduced the size of the mxd which was holding onto unused items. This would be a check you could do in comparing file sizes of the aprx files.

JohnBranum

So are you saying that just by Saving As it might just drop all the ghosts, or did you have to do something after that?

mvolz47

Have you tried to perform a Save As Copy in Pro to clean up the project?

I used this technique in ArcMap to remove ghost layers that were no longer in ArcMap as they had been deleted but there was still a reference to the data source buried in the mxd.
