Elevation Profile Widget - Create Profile Over Multiple Elevation Surfaces in the Same Graph

iHack

I have multiple elevation surfaces including an elevation ground  surface layer and two other raster layers containing groundwater surface elevation values under different scenarios.  I would like to create a stacked profile similar to how the Stack Profile 3D Analyst GP tool works in ArcGIS Pro.  It seems that the Elevation Profile widget in Experience Builder as well as in the Exploratory 3D Analysis Elevation Profile tool in ArcGIS Pro is limited to only displaying one layer at a time in the profile graph.  Is there a way to show multiple elevation surfaces in a single Elevation Profile graph [on the same axis] using this widget or by any other method in Experience Builder or the Elevation Profile Exploratory Analysis Tool in ArcGIS Pro?

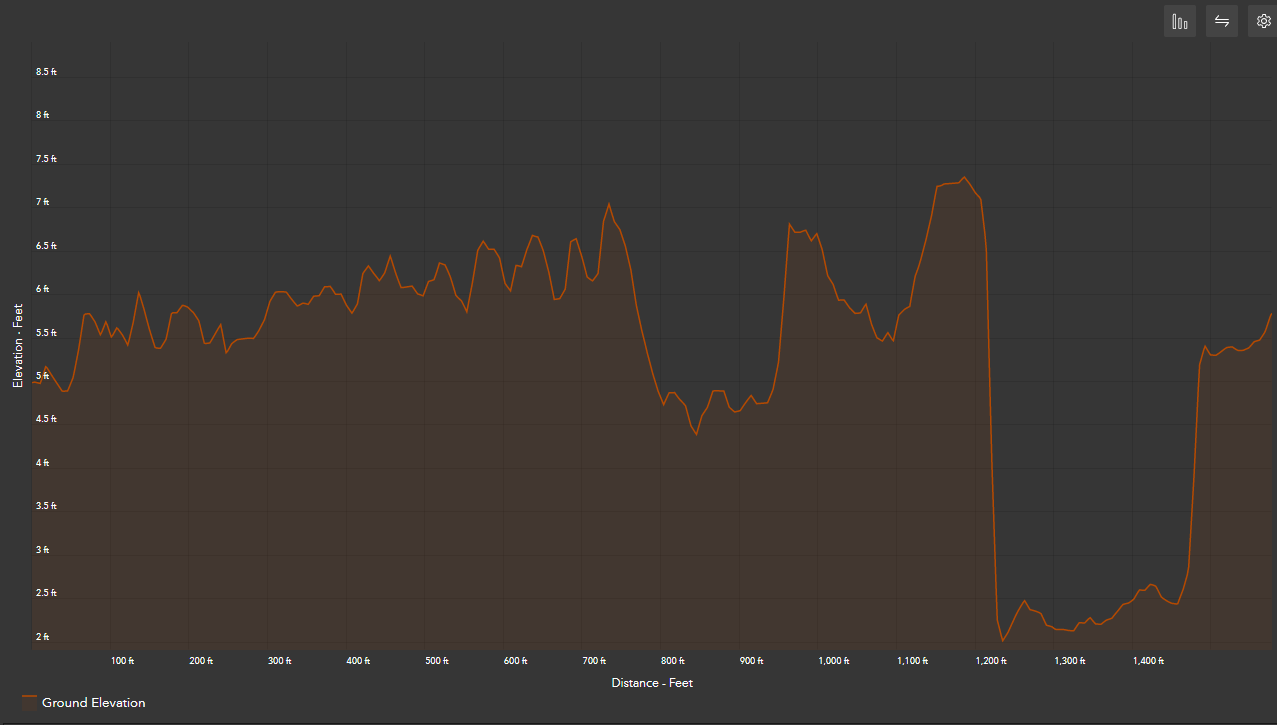

This is how the tool currently looks with only one elevation surface layer (ground surface elevation)

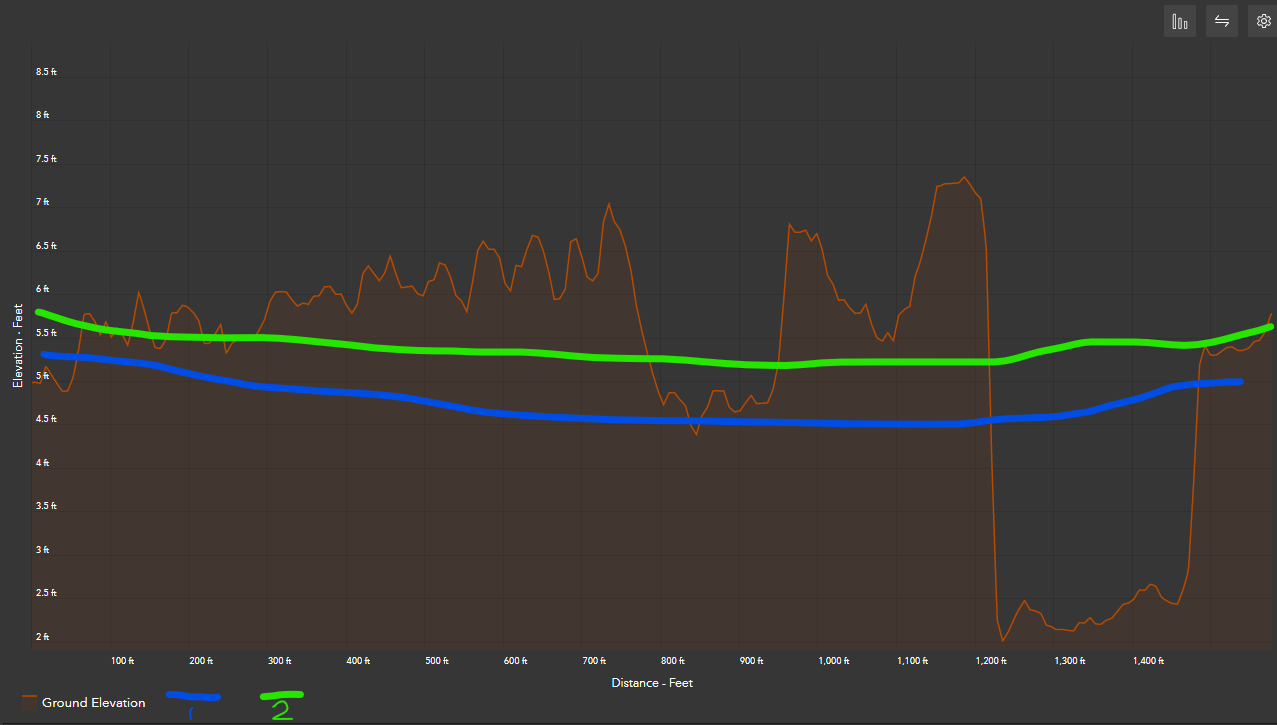

I would like to produce something like this









avezina

Hi @iHack ,

Thank you for your question.

Right now, you can achieve something similar to this with selected line features on the map. You'll need to enable the advanced settings in the configuration a profile will be shown for selected lines accross different layers.



In the upcoming update, we are also going to support Mesh layers along with other volumetric objects. Like in this sample.

There can only be one layer defined as ground, so your other elevation layers would need to be a Mesh or Scene Layer. Now, we're not planning to support multiple "stacked" Scene/Mes layers. They're going to be combined into one representation.

Which means you will only be able to represent the ground elevation profile with only one of your groundwater surfaces at the time.

Another option, but not optimal, is to add the Elevation profile widget multiple times and to change which elevation layer is used (use your groundwater surface elevation layers instead) so it can be compared between widgets.
