What can cause a hosted feature service to be large?

DeniseVachon

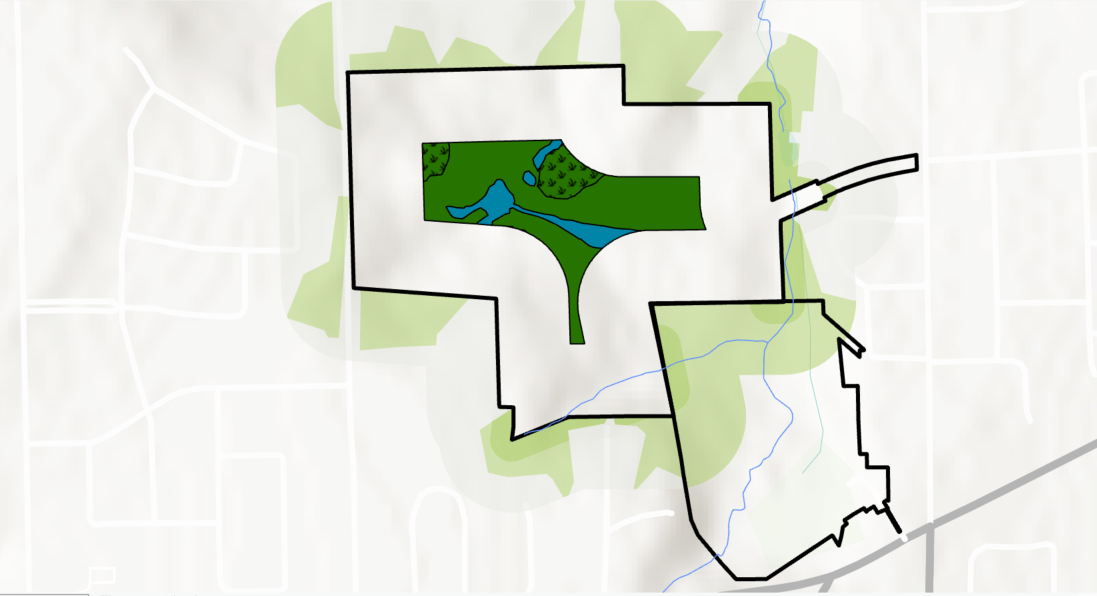

I have a hosted feature service that is reported as being quite large (3.3GB). The service has 15 features in it (line and polygon). Syncing and editing are not enabled. None of the layers are optimized for drawing. The ground area is relatively small (a few neighborhoods).

What could cause a service like this to be so large?

Find more posts tagged with

Data and services

Accepted answers

DeniseVachon

I finally figured this out. The large size reported was due to a definition query that we had on one of the features in the original ArcGIS Pro map document. I found this in the depths of AGOL doc:

"If the layers in the ArcMap or ArcGIS Pro map have definition queries applied to them, ArcGIS applies the definition queries to the published hosted feature layer. However, all data is uploaded to ArcGIS Online. If you want only a subset of the data to be published to and stored in ArcGIS Online, you must export the subset of the data to another feature class and publish that."

Publish hosted feature layers—ArcGIS Online Help | Documentation

All comments

jcarlson

I'd check

number / size of the fields
vertex count on your features
attachments

Has the layer by chance been overwritten in the past? Sometimes the size attribute hangs on from the initial publishing of a layer, and does not reflect the current state of the data.

For instance, I published an empty table, and our Portal says it takes up no storage at all. Since that initial publish, the service has added tens of thousands of records across 7 tables, with multiple attachments on many of them. The only way to get a true sense of the size of our service is to remote into the machine and actually look at the size of the folders where the data is being stored.

jcarlson

Oh and the precision on the location data, too. It would take a LOT of decimal places to add up to multiple gigs, but it's still worth checking.

DeniseVachon

Thanks Josh!

The number of fields is small and there are no attachments, but there are 6000+ vertices. I'm not sure if that is a lot. Do you know?

It seems like it might not be a lot based on the fact that I have a hosted feature service point layer that contains hundreds of thousands of points and takes up less space. But maybe point features are more efficient to store than polygon vertices.

The layer was published yesterday and has not been overwritten.

jcarlson

Whether or not it's a lot depends on the feature, but I don't see it being the cause for such a large size being reported.

Was the layer published from a larger layer with a definition query applied to it?

DeniseVachon

I finally figured this out. The large size reported was due to a definition query that we had on one of the features in the original ArcGIS Pro map document. I found this in the depths of AGOL doc:

Publish hosted feature layers—ArcGIS Online Help | Documentation
