Evaluate Intersection Count Rule

CaseyRayPeterson

Version: Pro 3.0.2

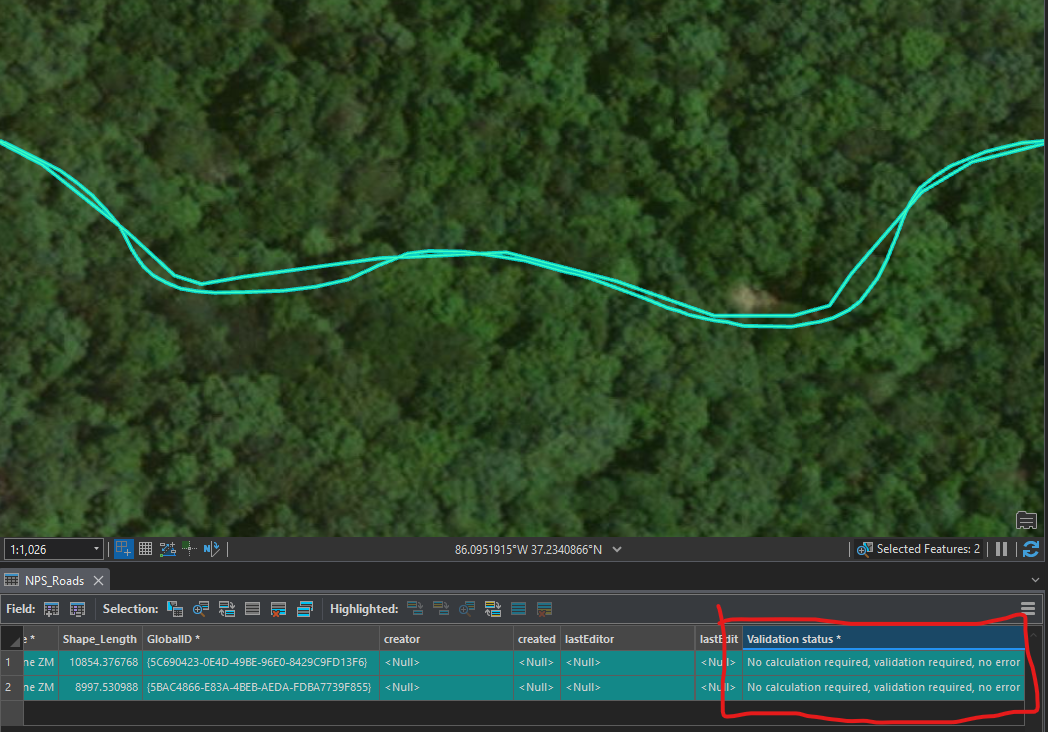

I have a roads polyline feature class. There are some instances, as shown in the screenshot, where there are two different road segments that represent the same road and intersect each other several times.

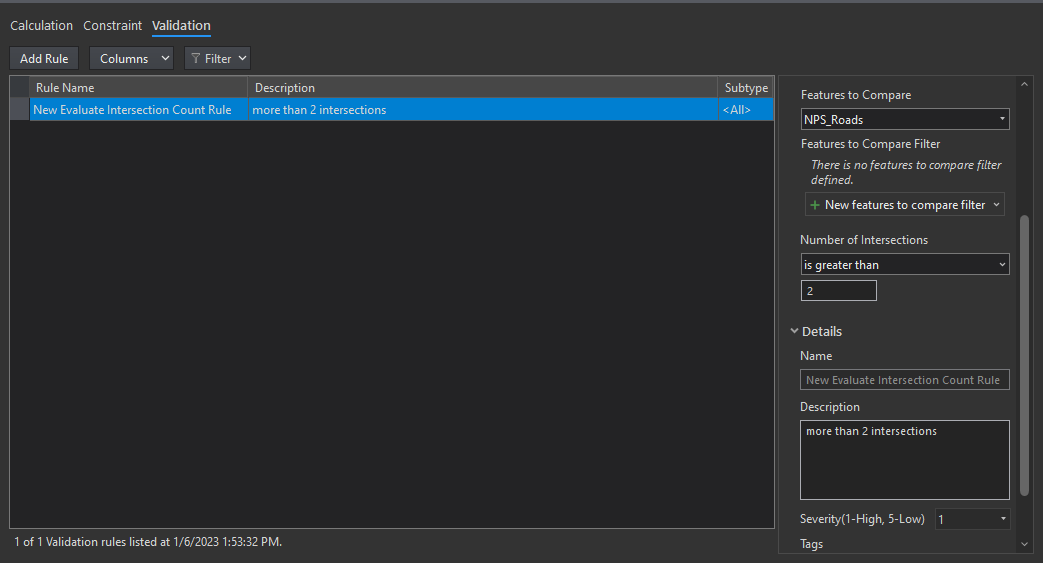

I am trying to use the Evaluate Intersection Count Rule as a validation check to find any lines that intersect more than twice. I have set the rule to compare features to itself and look for intersections greater than 2. The validation status in the attribute table of the feature class does not show any error, however, even though the road segments in the screenshot are a clear example of what it should be looking for.



Any help is appreciated, thank you!



CaseyRayPeterson

Oh I think figured it out. I came across this page that documents the process for running validation rules: run validation rules

After setting up the validation rules in Data Design>Attribute Rules:
1. Right click feature class in Contents Pane and select Add Error Layers.
2. On Edit tab, in Manage Edits group, select Error Inspector.
3. In Error Inspector, select dropdown arrow next to Evaluate Rules to verify rules and extent.
4. Click Evaluate Rules.

Doing this correctly identified the two road segments in question.

Thank you for responses, it just took some digging into documentation to understand how the tool/rules actually work.
