ClosestFacilityTask - failed to execute task

maglourenco1

Greetings everyone,

I'm trying to execute a Closest Facility Task using the ArcGIS location service in the following link

Spoiler

https://route-api.arcgis.com/arcgis/rest/services/World/ClosestFacility/NAServer/ClosestFacility_World

https://route-api.arcgis.com/arcgis/rest/services/World/ClosestFacility/NAServer/ClosestFacility_World

I've run the following code to query the features used as facilities

private void queryAvailableWaterPoints() {
        if (hasGeodatabaseLoad) {
            for (Layer layer : mMapView.getMap().getOperationalLayers()) {
                if (layer.getName().equals("Pontos_de_Água")) {

                    // queryAvailableWaterPoints is already working
                    FeatureLayer featureLayer = (FeatureLayer) layer;
                    FeatureTable featureTable = featureLayer.getFeatureTable();
                    featureTable.loadAsync();
                    featureTable.addDoneLoadingListener(new Runnable() {
                        @Override
                        public void run() {
                            QueryParameters query = new QueryParameters();
                            query.setWhereClause("Capacidade > 500 AND Tipo LIKE 'Autotanque'");
                            query.setMaxFeatures(0);

                            final ListenableFuture<FeatureQueryResult> queryFeaturesAsync = featureTable.queryFeaturesAsync(query);
                            queryFeaturesAsync.addDoneListener(() -> {
                                try {
                                    FeatureQueryResult result = queryFeaturesAsync.get();
                                    Iterator<Feature> resultIterator = result.iterator();
                                    int numFeatures = 0;

                                    ArrayList<Facility> mFacilities = new ArrayList<>();
                                    ArrayList<Incident> mIncidents = new ArrayList<>();

                                    // Loop through the diffrent water points and add them as facilities
                                    while (resultIterator.hasNext()) {
                                        Feature feature = resultIterator.next();
                                        numFeatures++;
                                        }

                                        // Store the water points as Facilities for the 'Find closest facility to an incident' task
                                        mFacilities.add(new Facility((Point) feature.getGeometry()));
                                    }

                                    // Store the user's current location as Incident for the 'Find closest facility to an incident' task
                                    mIncidents.add(new Incident(new Point(location.getLongitude(), location.getLatitude(), mMapView.getSpatialReference())));

                                    // Enable the closeRoute button and disable the remaining ActionBar buttons
                                    enableDisableRouteMode(true);
                                    //createProgressDialog();

                                    executeClosestFacilityTask(mFacilities, mIncidents);
                                    Log.i("feature", String.valueOf(numFeatures));
                                } catch (Exception e) {
                                    Log.i("FeatureQueryResult", "There was an error");
                                }
                            });
                        }
                    });
                }
            }
        } else {
            Toast.makeText(mContext, "Carregue a base de dados", Toast.LENGTH_SHORT).show();
        }
    }

After this, I stored them as Facilities and the user location as an Incident.

In the executeClosestFacilityTask method, I ran the following code

private void executeClosestFacilityTask(ArrayList<Facility> mFacilities, ArrayList<Incident> mIncidents) {
        // task to find the closest route between an incident and a facility
        mClosestFacilityTask = new ClosestFacilityTask(this, getString(R.string.closest_facility));
        mClosestFacilityTask.loadAsync();
        mClosestFacilityTask.addDoneLoadingListener(() -> {
            if (mClosestFacilityTask.getLoadStatus() == LoadStatus.LOADED) {
                ListenableFuture<ClosestFacilityParameters> closestFacilityParametersFuture = mClosestFacilityTask.createDefaultParametersAsync();
                closestFacilityParametersFuture.addDoneListener(() -> {
                    try {
                        mClosestFacilityParameters = closestFacilityParametersFuture.get();
                        // set new parameters to find route
                        Log.i("mFacilities", String.valueOf(mFacilities.size()));
                        Log.i("mIncidents", String.valueOf(mIncidents.size()));

                        mClosestFacilityParameters.setFacilities(mFacilities);
                        mClosestFacilityParameters.setIncidents(mIncidents);
                        mClosestFacilityParameters.setReturnRoutes(true);
                        mClosestFacilityParameters.setOutputSpatialReference(mMapView.getSpatialReference());
                        // mClosestFacilityParameters.setPointBarriers(pointBarriers);
                        // mClosestFacilityParameters.setPolylineBarriers(polylineBarriers);
                        // mClosestFacilityParameters.setPolygonBarriers(polygonBarriers);

                        // solve closest facilities
                        try {
                            // use the task to solve for the closest facility
                            ListenableFuture<ClosestFacilityResult> closestFacilityTaskResult = mClosestFacilityTask
                                    .solveClosestFacilityAsync(mClosestFacilityParameters);
                            closestFacilityTaskResult.addDoneListener(() -> {
                                try {
                                    ClosestFacilityResult closestFacilityResult = closestFacilityTaskResult.get();
                                    // find the closest facility for each incident
                                    for (int i = 0; i < mIncidents.size(); i++) {
                                        if (closestFacilityResult.getRankedFacilityIndexes(i).size() > 0) {
                                            // get the index of the closest facility to incident
                                            Integer closestFacilityIndex = closestFacilityResult.getRankedFacilityIndexes(i).get(0);
                                            // get the route to the closest facility
                                            ClosestFacilityRoute closestFacilityRoute = closestFacilityResult.getRoute(closestFacilityIndex, i);
                                            // display the route on the graphics overlay
                                            mRouteOverlay.getGraphics().add(new Graphic(closestFacilityRoute.getRouteGeometry()));
                                            // Hide the ProgressDialog
                                            hideProgressDialog();
                                        }
                                    }
                                } catch (ExecutionException e) {
                                    e.printStackTrace();
                                } catch (InterruptedException e) {
                                    e.printStackTrace();
                                }
                            });
                        } catch (Exception ex) {
                            String error = "Error solving the closest facility task: " + ex.getMessage();
                            Toast.makeText(getApplicationContext(), error, Toast.LENGTH_LONG).show();
                            Log.e("tag", error);
                        }
                    } catch (ExecutionException | InterruptedException e) {
                        String error = "Error generating parameters: " + e.getMessage();
                        Log.e("error", error);
                    }
                });
            } else {
                String error = "Closest facility task failed to load: " + mClosestFacilityTask.getLoadError().getCause();
                Log.e("error", error);
                Toast.makeText(this, "Tarefa 'Calcular ponto de água mais próximo' falhou'", Toast.LENGTH_LONG).show();
            }
        });

    }

which yield the following error

com.example.testsample2              W  java.util.concurrent.ExecutionException: com.esri.arcgisruntime.io.JsonEmbeddedException: Unable to complete operation.
2022-11-23 16:36:55.686  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.concurrent.b.get(SourceFile:18)
2022-11-23 16:36:55.686  7879-7879  System.err              com.example.testsample2              W  	at com.example.testsample2.MainActivity.lambda$executeClosestFacilityTask$0$com-example-testsample2-MainActivity(MainActivity.java:902)
2022-11-23 16:36:55.686  7879-7879  System.err              com.example.testsample2              W  	at com.example.testsample2.MainActivity$$ExternalSyntheticLambda5.run(Unknown Source:6)
2022-11-23 16:36:55.686  7879-7879  System.err              com.example.testsample2              W  	at android.os.Handler.handleCallback(Handler.java:938)
2022-11-23 16:36:55.687  7879-7879  System.err              com.example.testsample2              W  	at android.os.Handler.dispatchMessage(Handler.java:99)
2022-11-23 16:36:55.687  7879-7879  System.err              com.example.testsample2              W  	at android.os.Looper.loopOnce(Looper.java:201)
2022-11-23 16:36:55.687  7879-7879  System.err              com.example.testsample2              W  	at android.os.Looper.loop(Looper.java:288)
2022-11-23 16:36:55.687  7879-7879  System.err              com.example.testsample2              W  	at android.app.ActivityThread.main(ActivityThread.java:7839)
2022-11-23 16:36:55.688  7879-7879  System.err              com.example.testsample2              W  	at java.lang.reflect.Method.invoke(Native Method)
2022-11-23 16:36:55.688  7879-7879  System.err              com.example.testsample2              W  	at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:548)
2022-11-23 16:36:55.689  7879-7879  System.err              com.example.testsample2              W  	at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1003)
2022-11-23 16:36:55.689  7879-7879  System.err              com.example.testsample2              W  Caused by: com.esri.arcgisruntime.io.JsonEmbeddedException: Unable to complete operation.
2022-11-23 16:36:55.689  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.io.JsonEmbeddedException$b.a(SourceFile:43)
2022-11-23 16:36:55.690  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.io.JsonEmbeddedException$b.deserialize(SourceFile:1)
2022-11-23 16:36:55.690  7879-7879  System.err              com.example.testsample2              W  	at com.google.gson.internal.bind.TreeTypeAdapter.read(TreeTypeAdapter.java:69)
2022-11-23 16:36:55.690  7879-7879  System.err              com.example.testsample2              W  	at com.google.gson.Gson.fromJson(Gson.java:991)
2022-11-23 16:36:55.691  7879-7879  System.err              com.example.testsample2              W  	at com.google.gson.Gson.fromJson(Gson.java:956)
2022-11-23 16:36:55.692  7879-7879  System.err              com.example.testsample2              W  	at com.google.gson.Gson.fromJson(Gson.java:905)
2022-11-23 16:36:55.692  7879-7879  System.err              com.example.testsample2              W  	at com.google.gson.Gson.fromJson(Gson.java:876)
2022-11-23 16:36:55.693  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.io.JsonEmbeddedException.fromJson(SourceFile:1)
2022-11-23 16:36:55.693  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.l.b(SourceFile:3)
2022-11-23 16:36:55.693  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.m.a(SourceFile:61)
2022-11-23 16:36:55.695  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.m.a(SourceFile:2)
2022-11-23 16:36:55.695  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.c.a(SourceFile:169)
2022-11-23 16:36:55.696  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.c.f(SourceFile:1)
2022-11-23 16:36:55.696  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.r.x(SourceFile:1)
2022-11-23 16:36:55.697  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.r.d(SourceFile:1)
2022-11-23 16:36:55.697  7879-7879  System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.c$a.call(SourceFile:1)
2022-11-23 16:36:55.697  7879-7879  System.err              com.example.testsample2              W  	at java.util.concurrent.FutureTask.run(FutureTask.java:266)
2022-11-23 16:36:55.698  7879-7879  System.err              com.example.testsample2              W  	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
2022-11-23 16:36:55.699  7879-7879  System.err              com.example.testsample2              W  	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
2022-11-23 16:36:55.699  7879-7879  System.err              com.example.testsample2              W  	at java.lang.Thread.run(Thread.java:920)

I've tried to understand what is causing this bug but can't figure out.

If someone can help me into understanding what is behind this, I'll greatly thank and appreciate.

Thank you.

Cheers

Accepted answers

All comments

maglourenco1

I thank you very much for all the support you've given me on this issue.

I honestly don't know any potential reason that is causing this bug. In the past, I used a custom Network Dataset and had no problem. The San Diego closest facility service is also working now, so something else is happening.

Anyway, I will close this issue because matter of fact I intend to use a custom Network Dataset so no need to worry about not making the Closest Facility location service work.

I really appreciate your help.

Cheers

RChintapalli

Yes, you seem to have the required scope for the api key.

Charles (on Mac) or Fiddler (on Windows) are network traffic debug tools. You can also reach out to Esri Support to debug this further.

Typically we see that error on the solveClosestFacility operation when there are missing facilities or incidents etc in the request parameters. It is weird that the sample is not working for you after switching to generic Closest Facility location service.

Thanks
Rama

maglourenco1

Thank you for the answer.

I'm sorry but my reply didn't appear. I noticed the San Diego message was hard-coded and that was not the problem. The problem was probably in handling the message from the closest facility service since in my ArcGIS for Developers Dashboard I could see that I was requesting the Closest Facility service.

As you can see in the picture attached, my API KEY has the Closest Facility service activated thus that shouldn't cause the problem.

What is that Charles or Fiddler network traffic tracker? Is it some feature of Android Studio?

Thanks


RChintapalli

You are seeing the error 'Incident not within the San Diego Area!' , because you are still getting the unable to complete operation from the service and hence the toast message hardcoded in the sample,

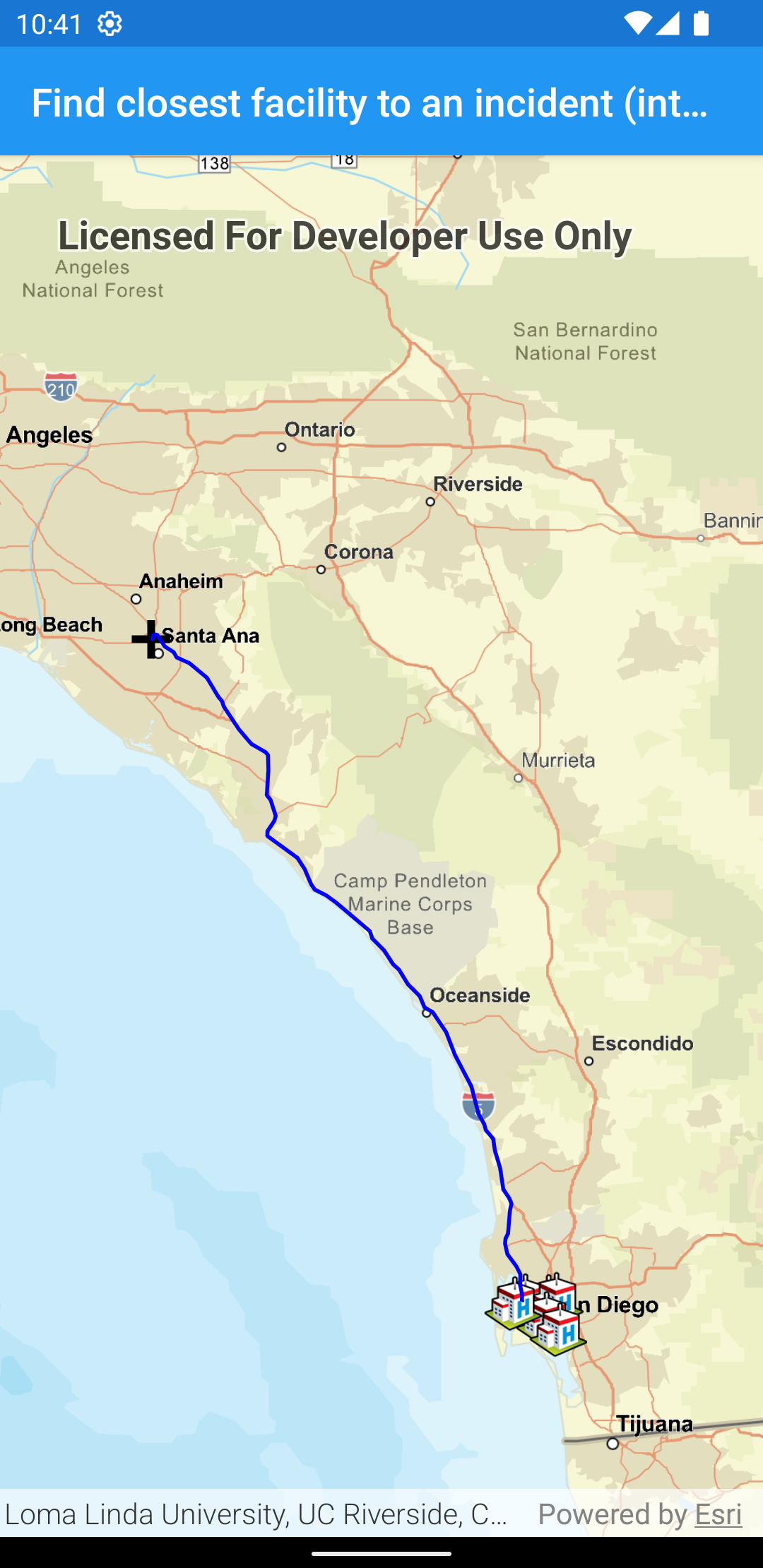

I just tried switching the sample to use generic Closest Facility location service and that seemed to work fine with the sample for me using my API Key

<string name="closest_facility">https://route-api.arcgis.com/arcgis/rest/services/World/ClosestFacility/NAServer/ClosestFacility_World</string&gt;

If your api key doesn't have scope to perform closestfacility task, it should have failed even to load the closesfacilitytask. But looks like you were able to load the task but unable to solve closest facility operation.

Do you use Charles or fiddler to track network traffic? If so you can see the http request parameters thats causing service to throw the error.

Thanks

Rama

maglourenco1

Please ignore the error.

I realized the code was written to output that SanDiego message no matter the error.

After changing to get the real cause of the error, I received this message that I previously received

2022-12-13 18:37:22.808 12829-12829 System.err              com.example.testsample2              W  java.util.concurrent.ExecutionException: com.esri.arcgisruntime.io.JsonEmbeddedException: Unable to complete operation.
2022-12-13 18:37:22.808 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.concurrent.b.get(SourceFile:18)
2022-12-13 18:37:22.809 12829-12829 System.err              com.example.testsample2              W  	at com.example.testsample2.MainActivity.lambda$populateParametersAndSolveRoute$2$com-example-testsample2-MainActivity(MainActivity.java:899)
2022-12-13 18:37:22.809 12829-12829 System.err              com.example.testsample2              W  	at com.example.testsample2.MainActivity$$ExternalSyntheticLambda13.run(Unknown Source:4)
2022-12-13 18:37:22.809 12829-12829 System.err              com.example.testsample2              W  	at android.os.Handler.handleCallback(Handler.java:938)
2022-12-13 18:37:22.812 12829-12829 System.err              com.example.testsample2              W  	at android.os.Handler.dispatchMessage(Handler.java:99)
2022-12-13 18:37:22.813 12829-12829 System.err              com.example.testsample2              W  	at android.os.Looper.loopOnce(Looper.java:201)
2022-12-13 18:37:22.813 12829-12829 System.err              com.example.testsample2              W  	at android.os.Looper.loop(Looper.java:288)
2022-12-13 18:37:22.814 12829-12829 System.err              com.example.testsample2              W  	at android.app.ActivityThread.main(ActivityThread.java:7839)
2022-12-13 18:37:22.814 12829-12829 System.err              com.example.testsample2              W  	at java.lang.reflect.Method.invoke(Native Method)
2022-12-13 18:37:22.814 12829-12829 System.err              com.example.testsample2              W  	at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:548)
2022-12-13 18:37:22.819 12829-12945 EGL_emulation           com.example.testsample2              D  app_time_stats: avg=99.62ms min=12.52ms max=351.34ms count=10
2022-12-13 18:37:22.823 12829-12829 System.err              com.example.testsample2              W  	at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:1003)
2022-12-13 18:37:22.823 12829-12829 System.err              com.example.testsample2              W  Caused by: com.esri.arcgisruntime.io.JsonEmbeddedException: Unable to complete operation.
2022-12-13 18:37:22.823 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.io.JsonEmbeddedException$b.a(SourceFile:43)
2022-12-13 18:37:22.824 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.io.JsonEmbeddedException$b.deserialize(SourceFile:1)
2022-12-13 18:37:22.824 12829-12829 System.err              com.example.testsample2              W  	at com.google.gson.internal.bind.TreeTypeAdapter.read(TreeTypeAdapter.java:69)
2022-12-13 18:37:22.826 12829-12829 System.err              com.example.testsample2              W  	at com.google.gson.Gson.fromJson(Gson.java:991)
2022-12-13 18:37:22.826 12829-12829 System.err              com.example.testsample2              W  	at com.google.gson.Gson.fromJson(Gson.java:956)
2022-12-13 18:37:22.827 12829-12829 System.err              com.example.testsample2              W  	at com.google.gson.Gson.fromJson(Gson.java:905)
2022-12-13 18:37:22.827 12829-12829 System.err              com.example.testsample2              W  	at com.google.gson.Gson.fromJson(Gson.java:876)
2022-12-13 18:37:22.828 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.io.JsonEmbeddedException.fromJson(SourceFile:1)
2022-12-13 18:37:22.829 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.l.b(SourceFile:3)
2022-12-13 18:37:22.830 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.m.a(SourceFile:61)
2022-12-13 18:37:22.830 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.m.a(SourceFile:2)
2022-12-13 18:37:22.831 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.c.a(SourceFile:169)
2022-12-13 18:37:22.831 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.c.f(SourceFile:1)
2022-12-13 18:37:22.831 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.r.x(SourceFile:1)
2022-12-13 18:37:22.833 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.r.d(SourceFile:1)
2022-12-13 18:37:22.833 12829-12829 System.err              com.example.testsample2              W  	at com.esri.arcgisruntime.internal.io.handler.request.c$a.call(SourceFile:1)
2022-12-13 18:37:22.840 12829-12829 System.err              com.example.testsample2              W  	at java.util.concurrent.FutureTask.run(FutureTask.java:266)
2022-12-13 18:37:22.842 12829-12829 System.err              com.example.testsample2              W  	at java.util.concurrent.ThreadPoolExecutor.runWorker(ThreadPoolExecutor.java:1167)
2022-12-13 18:37:22.842 12829-12829 System.err              com.example.testsample2              W  	at java.util.concurrent.ThreadPoolExecutor$Worker.run(ThreadPoolExecutor.java:641)
2022-12-13 18:37:22.846 12829-12829 System.err              com.example.testsample2              W  	at java.lang.Thread.run(Thread.java:920)

One interesting phenomenon is that by checking my ArcGIS for Developers dashboard, I can see my account is consuming the Closest Facility service thus the error could be in handling the result.

Hope I was clear and I'm sorry for the confusion

maglourenco1

So apparently I'm still getting some strange bug.

So I tried changing from the San Diego closest facility service to the generic one.

Everything worked well for the San Diego area, but as soon as I was outside San Diego, I got an error saying 'Incident not within the San Diego Area!'

I don't understand since I'm not using the San Diego closest facility service but rather the normal one.

San Diego closest facility service

<string name="san_diego_network_service_url">https://sampleserver6.arcgisonline.com/arcgis/rest/services/NetworkAnalysis/SanDiego/NAServer/ClosestFacility</string>

Generic Closest Facility location service.

<string name="closest_facility">https://route-api.arcgis.com/arcgis/rest/services/World/ClosestFacility/NAServer/ClosestFacility_World</string>

I changed from

mClosestFacilityTask = new ClosestFacilityTask(this, getString(R.string.san_diego_network_service_url));

To this

mClosestFacilityTask = new ClosestFacilityTask(this, getString(R.string.closest_facility));

Thus, for some reason, I'm apparently still using the San Diego Closest Facility service because it says I'm outside San Diego. Or something else that I'm missing ..!

P.S. I used the code from this sample

Cheers

RChintapalli

Sample might be using a different service, so don't forget to switch.

Also as per Doc, the service being used should be used for short transactions,
https://developers.arcgis.com/documentation/mapping-apis-and-services/routing/closest-facility-routing/#direct-2

How many facilities and incidents do you typically use?

Thanks
Rama

maglourenco1

Thank you for the answer.

1. API Key

2. Yes.

3. I will try next week the official example with my API Key to see if the same error is returned or not.

I will post here if everything went smoothly or not. If yes, than the error was in the code.

Cheers

RChintapalli

HI,

This seems to be an error coming from the service itself.

Few questions:
1. What are using to authenticate the service. API Keys or Named User ?
2. Is the error happening on the `solveClosestFacilityAsync` ?
3. Does the following samples work for you ?
https://github.com/Esri/arcgis-runtime-samples-android/tree/main/java/find-closest-facility-to-an-incident-interactive

https://github.com/Esri/arcgis-runtime-samples-android/tree/main/java/find-closest-facility-to-multiple-incidents-service

If the samples work and your code has issues, we might need go through the Esri support and look into the request parameters being sent here for the solve operation.

Thanks
Rama

Find more posts tagged with

Accepted answers

All comments

Join the Conversation

Quick Links
