Imagery layers not displaying properly in new map viewer

jpilbeam

Hello,

I published a digital terrain model and a digital surface model from pro to my AGOL account. They do not display correctly in the new map viewer. However, they look fine in the classic map viewer. The problem is, I want them in the new map viewer because there you can group the layers. Any ideas why the imagery is not displaying correctly?

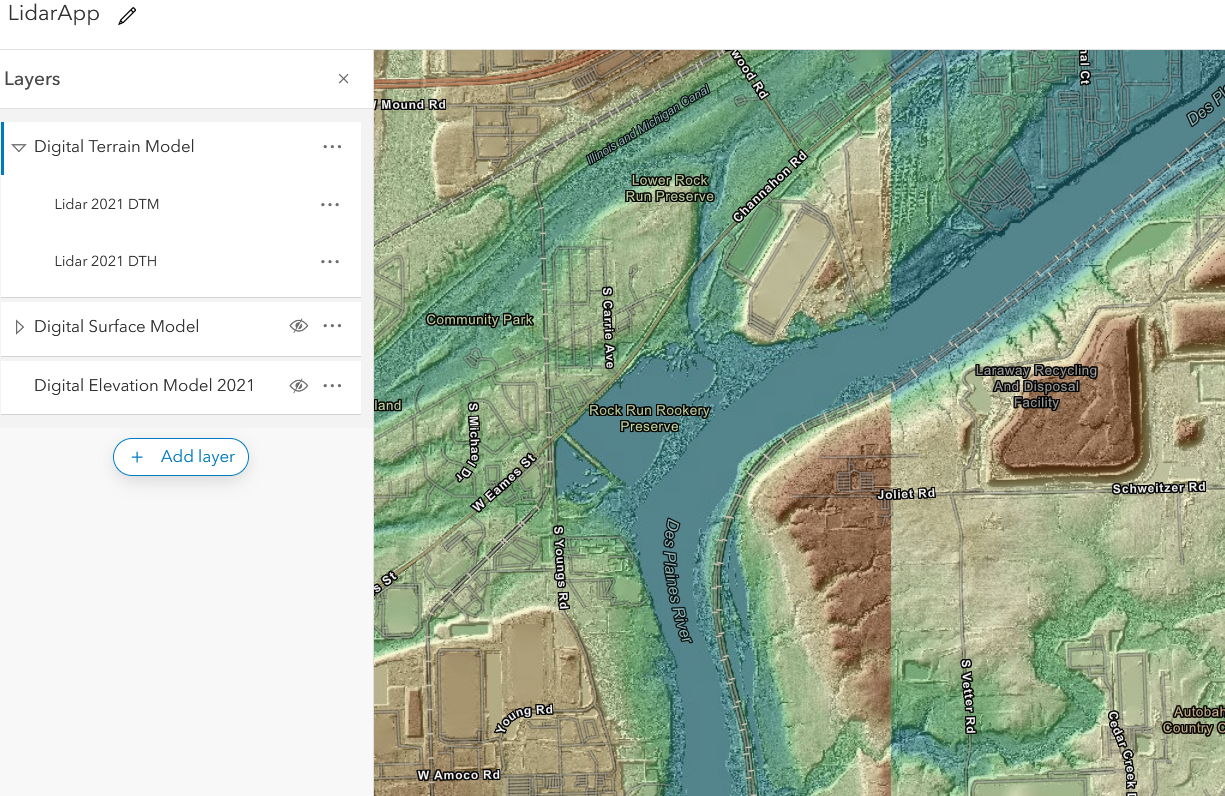

New Map Viewer:

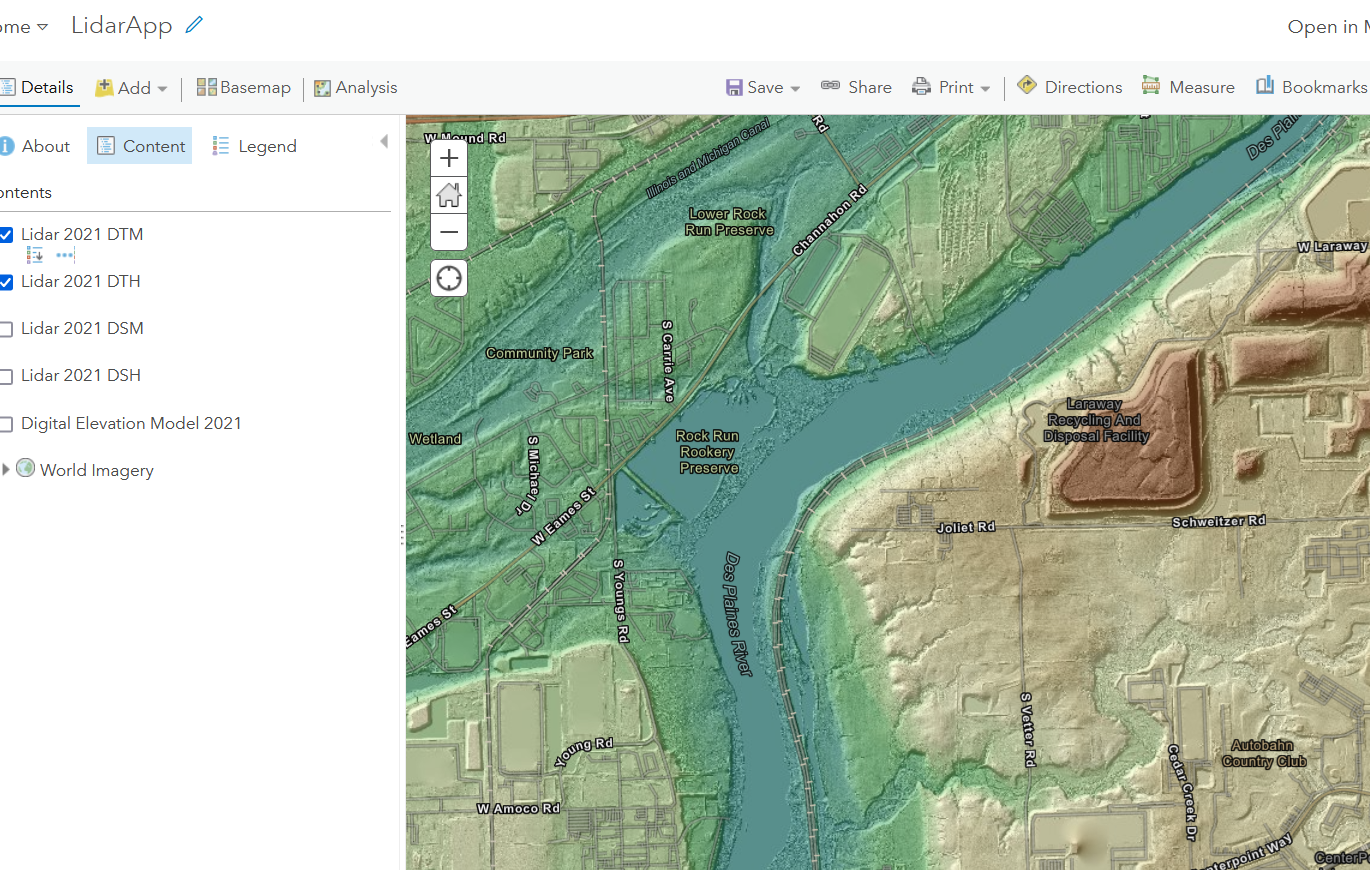

Classic Map Viewer:

Find more posts tagged with

Accepted answers

RussRoberts

I think the issue is the apply dynamic range and this is applying and you can see that tiling in Map Viewer Classic at times too. You see the exportImage under the console shows the tiling in the image coming from the service.

Disabling the dynamic option I was able to generate a result I think you are expecting

All comments

RussRoberts

Can you share the layer showing the issue?

jpilbeam

Hi @RussRoberts ,

Absolutely. I'll just give you the webmap. Open it in the new map viewer to see the DTM and DSM not displaying correctly. The symbology is not even showing up currently for the DSM. I have it set for a multi-part color scheme (blue -red) but it's displaying as black - white.

https://willcountygis.maps.arcgis.com/apps/mapviewer/index.html?webmap=c2b23dda0ba941a4a17397acdbabad50

EDIT: I have a case going with ESRI Support, btw. Case #03189149.

RussRoberts

Disabling the dynamic option I was able to generate a result I think you are expecting

jpilbeam

Thanks, disabling the DRA did correct the DTM. However, disabling the DRA on the DSM did not correct the coloring scheme. It will still only show black - white.
