On Select Multiple, Need option to explain each selection to user as a pop-up/hover over/expand selection, etc.

JaviVasquez1

My form needs to describe the short selection choices so the user knows what they are agreeing to. For example, "John completed his morning tasks" could be selected. Now I need John to be able to click somewhere and find out what all those morning tasks actually are so he can confirm that he did them all. Details of those tasks are for reference only. I might even want to include a picture as a reference, if possible.

I could not figure out how to use "guidance_hints" - not sure if that is an option here but I understand you can't fit much text in it anyway.

Any help is appreciated.

Javi

Find more posts tagged with

Accepted answers

dougbrowning

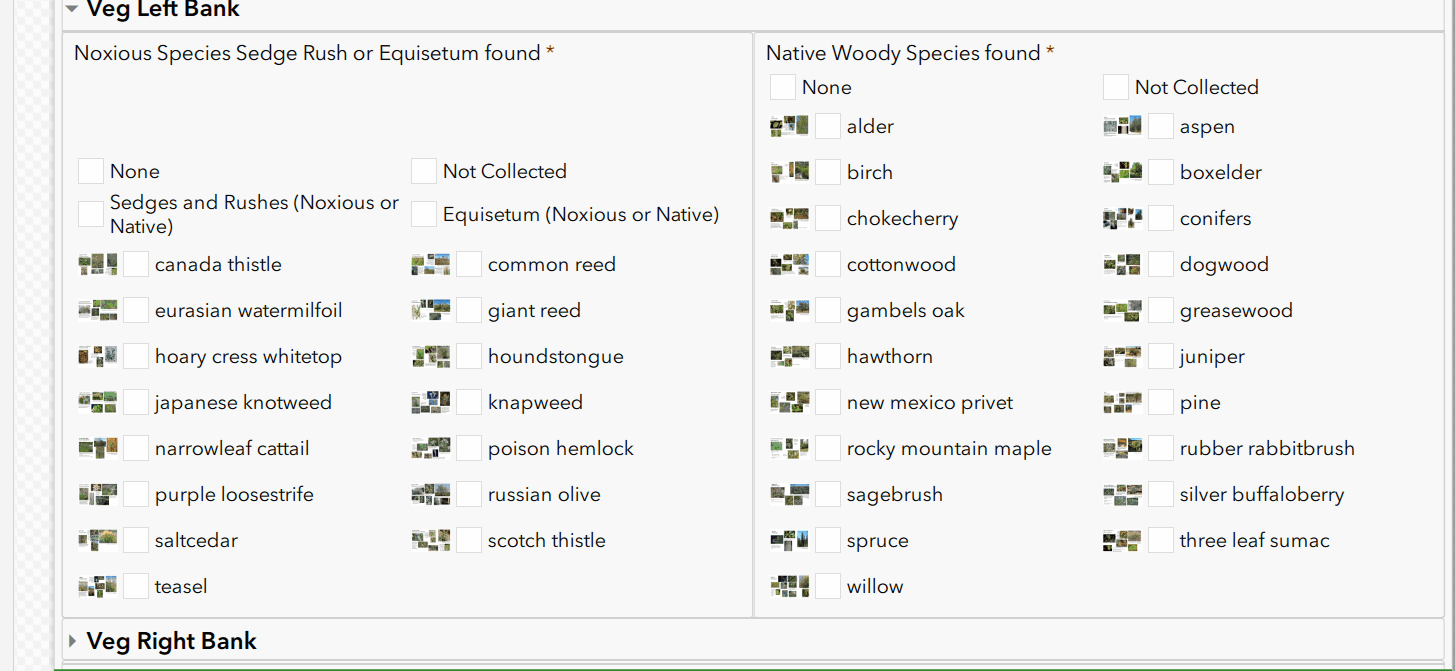

I use images for each choice and it works well. I can then have text and photos.

Species List with images.gif

All comments

AlfredBaldenweck

Guidance Hints only work if you already have a hint set up.

This isn't perhaps as clean as you want, but you can combine the normal hint with a calculate question to have expository text appear as your question gets answered.

Make a calculation question, then put the name of that question in the hint column. (You can also do this in the Guidance Hint column if you already have something in the hint column)

if(${example1}='1', 'I hated this', if(${example1}='5', "I loved this", "I feel indifferent to this"))

Spoiler

Your syntax will probably have to change to be

selected($question, answer) or selected($question, answer2) in your calculation question if you're doing a multi-select, but this should be a good start.

dougbrowning

I use images for each choice and it works well. I can then have text and photos.

Species List with images.gif

AlfredBaldenweck

This looks great!

Would you mind explaining the process for it?

dougbrowning

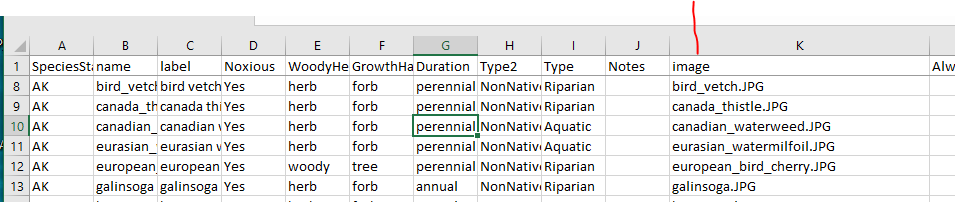

Just use the image column in the choices list tab or in an external csv for each option like this. Just add the images to the media folder. Note the files names are case sensitive.

Hope that helps

JaviVasquez1

Will try this. THANKS!

JaviVasquez1

This works for me as a solution! Much appreciated. The only hang-up now is when I start adding images, it duplicates the names of the choices with images. Really weird. Like if I have choices blue, red, and yellow - if I add images to the choices blue and red in the choices tab, they will read as red and carry the same red image in the form after I save and update. Yellow would remain the same. It takes the choice that had the last image in the sequence. I checked the media folder and copy pasted the name so it's exact. Still does this. Hope this makes sense - I'm sure it's simple. If I can get over that, I'm golden. Thanks!

PS - I didn't try it as a CSV yet.

Javi

dougbrowning

Sorry never seen that. Post the form I guess.

JaviVasquez1

OK - I'll comb through it first to see if I missed something. Any idea why all the boxes check when I check the first one on the form? If I double-click it, I can isolate that choice. Thanks for the patience.

JaviVasquez1

Just figured it out! They all had the same name...so I added _1, _2, _3 to each one. Sometimes it's the simplest thing. Fixed both issues and now I can run with this. THANKS for the help.

dougbrowning

name is what will be stored in the actual data so keep that in mind. I tend to have the name and label match exactly but with no spaces its hard to do.
