Filter Widget - Multiple Selection

TheGamer

So, I'm trying to select multiple names however it only allows me to select 1 name. There are times when I can select them but I have to click on the boxes really fast and even when I'm able to select them. The filter does not work properly. Basically, I want the user to select a province, and based on that it should only show the user the names associated with the selected province, and from there they should be allowed to select multiple names. The filter is working for one of my views, however, when I replicate the process for other views (the layer being filtered for each view is the same), I'm only able to select it once. Could you please help @TonghuiMing @ShengdiZhang @jcarlson?

Find more posts tagged with

Accepted answers

TonghuiMing

@TheGamer It seems like the configuration of the Clause set has some logical defects.

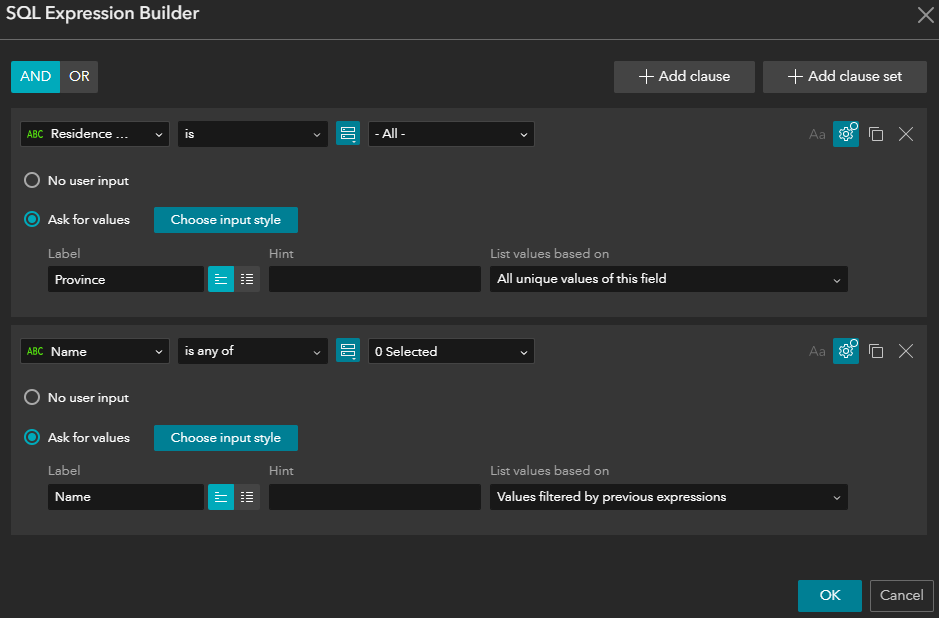

In view2, the configuration contains two single clauses; while in view1, it is two clauses within one clause set:

Currently, you could change Filter1's setting to two single clauses, like that of Filter2, as a workaround.

In the meantime, we'll try to fix the problem. Thanks for bringing it up.

All comments

K_Smyth4

Hi there, yes I am still seeing the issue and can create a test app for sharing, the filter works perfectly in the web map and it only seems to be an issue in Experience Builder, I am using AGOL and not an Enterprise version. I've taken a look online and have found a workaround for not seeing the list but it is for sharing with a customer and keen to see if there are any simple solutions, will share the app as soon as possible

TonghuiMing

@K_Smyth4 Are you still seeing this in the AGOL environment and it is possible to share a sample app? I could not reproduce it with a clause set. Or are you in a previous Enterprise/dev edition version?

K_Smyth4

Hi there, I am having a similar issue with the filter widget on an application I have built, I have added in single clauses and haven't used a clause set has had come across issues using this. I am looking to filter a dataset by Council area in Northern Ireland which has 11 Councils but each time I configure the widget and filter in the application, it only shows me 3 of the 11 Councils to chose from? Thanks

TonghuiMing

@TheGamer This issue has been fixed in the latest AGOL 10.3 release. Thanks.

TheGamer

@TonghuiMing I have shared the web map. The thing is in View1, I'm able to only select 1 option but view2, I'm able to select multiple options from filter dropdown

TonghuiMing

@TheGamer Unfortunately, I got the "Create map failed" message, which I believe is due to the fact that the web map used is not shared.

However, based on the sight of your app configuration, I believe what you saw is as expected, because of the two filters "contains the same data being filtered". Once you've filtered the data in view2 when you open the filter widget in view1, it should and will be automatically updated in sync - otherwise, it is a bug (the time when you saw a full list probably was caused by a slow network or loading process).

In ExB, filters on the default data view affect all widgets that use the data or its views. Filters on a specific data view only affect widgets that use the same data view. You can refer to the detailed doc on ExB > Select data.

If you do not want these two Section views to have filters affecting each other, try creating separate Data views for each and then choose the correct data view for filtering - this is the expected way to achieve similar cases:

TheGamer

@TonghuiMing basically for my app I have created the same filter for each view as each web map contains the same data being filtered. When you run this app you will notice the glitch happens in view1, but works perfectly fine in view2

https://experience.arcgis.com/experience/0f6f563037924b22b329f472d69a9087/

TonghuiMing

@TheGamer What is the 'view' you are referring to? Data views?

I am not able to reproduce your case, do you mind sharing the app/data with the reproducible steps?
