ArcGIS Pro query layer loses selected workspace

JulianInskip1

I have a number of query layers in my ArcGIS Pro map. When I try and perform and arcpy code on these query layers it loses the connection to the workspace.

A simple task I am trying to do is update the Display Field for all these query layers (see code below).

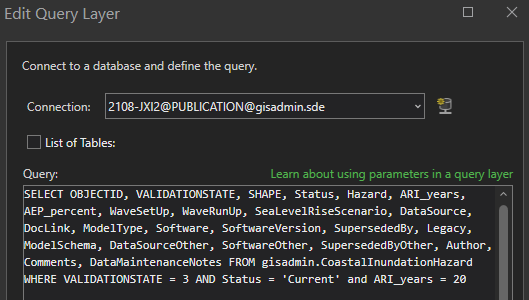

When I run this, I get the datasource missing red exclamation mark next to my query layers. When I go to the Source in the layer's Properties and view the query, the connection to my enterprise gdb is still showing there but the code syntax colours are not shown (only white text) (I also can't select the List of Tables - ERROR: The selected workspace is invalid):

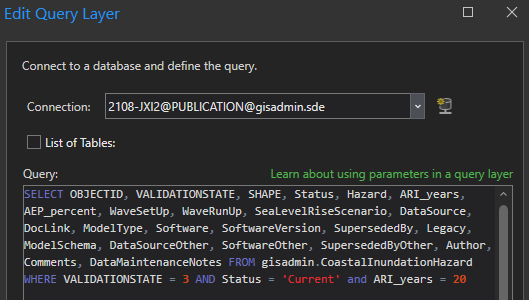

If I select another database connection, then reselect my correct connection it restores the connection again:

Why does it loose the database connection? I checked the CIM in an exported lyrx file for both and the connections seem to be the same.

Is there at least a way I can automate the connection re-connection with python instead of having to do the above for every layer?

Python code to update the displayField:

aprx = arcpy.mp.ArcGISProject("CURRENT")
for m in aprx.listMaps():
    for lyr in m.listLayers():
        if lyr.isFeatureLayer:
            cim_lyr = lyr.getDefinition("V2")
            cim_lyr.featureTable.displayField = "NAME"
            lyr.setDefinition(cim_lyr)



Thanks.

Julian.

JeffMoulds

This is has been fixed ArcGIS Pro version 3.2. In the Updating Data Sources help topic, go to the CIM Section, and check out the third code sample:

# Reference project, map and layer
p = arcpy.mp.ArcGISProject(r'C:\Projects\USA.aprx')
m = p.listMaps('USA')[0]
l = m.listLayers('States')[0]

# Get the layer's CIM definition
lyrCIM = l.getDefinition('V3')

# Update the sql query where clause for the layer
sql = lyrCIM.featureTable.dataConnection.sqlQuery
newsql = sql.replace("WHERE SUB_REGION = 'Mtn'", "WHERE SUB_REGION = 'Pacific'")
lyrCIM.featureTable.dataConnection.sqlQuery = newsql

# Set the layer's CIM definition
l.setDefinition(lyrCIM)



The above sample changes the sql query, but other properties of the Query Layer, such as the Display Field, can also be updated using similar logic.
