Legend moves after exporting layout

Question

Hello,

I am having an issue when I export my layout to pdf where the legend moves. In the first screenshot, the legend is located in the bottom left, and when I publish it moves right. I am using the same settings I usually do and can not figure this out. I have tried restarting program and restarting computer.

I did install an update yesterday, is it possibly a bug?

Thank you.

Layout in ArcGIS Pro:

Exported PDF:

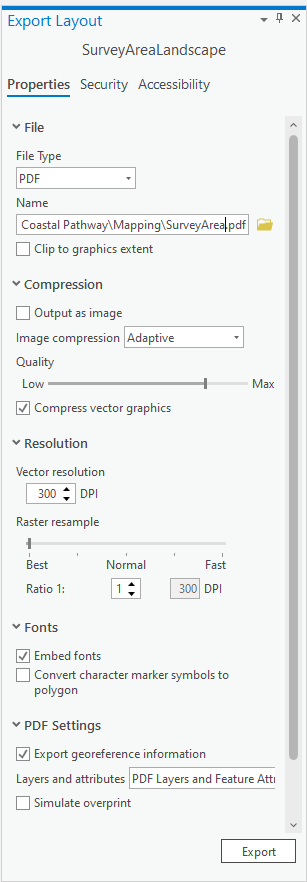

Export settings:

LarissaBoundy · Answer

Hi,

Yes, should have mentioned I have tried PDF and JPEG, happens with both. I will contact technical support, thank you.

AubriOtis · Answer

That does look like a bug. I'm so sorry. Does it happen in all export formats? For example, does the same thing occur in a PNG export? If you can, would you please reach out to technical support? They have the resources to get a reproducible case to the proper development team to fix.
