Dotted stroke and other stroke effects

Question

Hello!

I am new to ArcGis Pro! So i have some questions and I would be grateful if someone could help me by posting step-by-step or URL link to any kind video which is related to this topic or any help at all.

So I have a problem creating new symbols:

* I don't know how to make dotted stroke instead of dashed stroke.
* where I can set the interval (like in ArcMap Desktop - it was somewhere under cartographic line-templates etc.)?
* how to set stroke to not change when I'm zooming in/out?

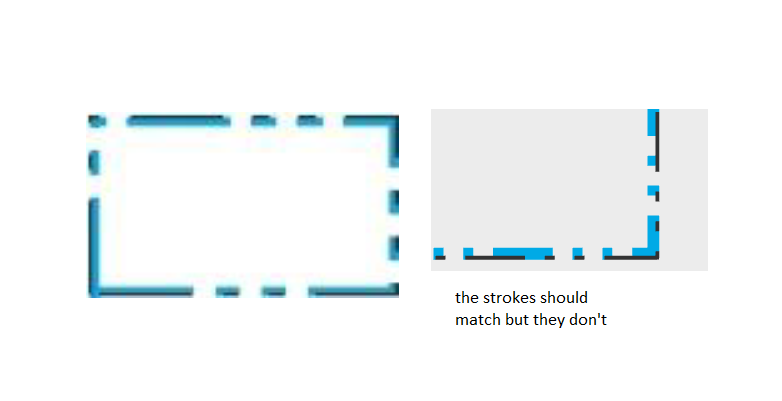

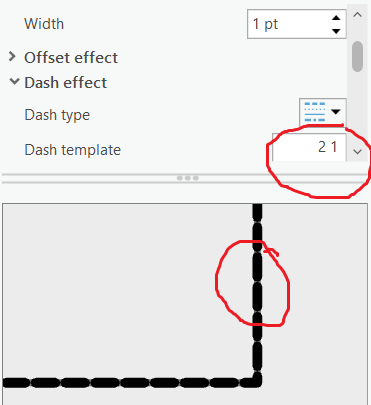

* and what to do with dash template - I enter necessary values like 2 1 and it doesn't not match with needed symbol example - see added photos;

*

THANK YOU! 🙂

KeithAddison1 · Answer

Here's an example of the phantom linetype CAD loves:

It looks all wrong if cap is anything but Butt.

CarlMorrison · Answer

A great source for style tips and tricks is John Nelson's blogs and YouTube videos. https://www.esri.com/arcgis-blog/author/j_nelson/?page=31

jcarlson · Answer

Check your line's cap settings.

A round or square cap will make your dashes appear longer than intended.

The way the dashes line up depends a lot on where the line starts and ends, which would be defined by the polygon's vertices, or at least how much of it is visible. You can adjust the constraints to get the symbol to start/end with some portion of the pattern / gap.

With the symbology scaling problem, you can set a reference scale on your map. With the reference scale set, your symbology will not adjust as you zoom in and out anymore.
