Editing features on another class with attribute rules - Points

Jake_S

Hey folks,

Stumbled upon this post, Advanced Attribute Rules - Editing features on another class with attribute rules where inserting a point created a buffer polygon feature class. I wanted to use this when a user creates an annotation feature a similar rule would create a point feature class. When I use almost identical code just pointed to a point feature class.





var featureGeo = Geometry($feature);
return {
      "result": $feature.OBJECT__ID,
      "edit": [
        {
            "className" : "LocalPoints",
            "adds" : [
                   {
                         "attributes":
                          {
                                "TextString": $feature.TextString
                            },
                         "geometry": featureGeo
                   }
          ]
         }
  ]
}

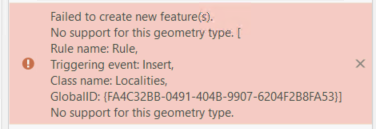

I get the following error..

Am I using the wrong function to return the annotation feature geometry? Or is it my Pro Version? 2.6.6

Any help for this noob is appreciated!

~j

JohannesLindner

Annotation features seem to be treated as polygons. So when you try to just copy the geometry to a point fc, it throws an error.

Depending on where you want the point to show up, you have a few options:

• Centroid(featureGeo), this will place the point in the center of the annotation
• featureGeo.rings[0][1], this will place the point at the bottom left corner of the annotation
• featureGeo.ring[0][X], where X is 0, 2 or 3, this will place the point at one of the other corners
