Arcade conditional color text label not working in Pro

Jen_Zumbado-Hannibal

I have been trying to create an arcade expression base on the condition of an attribute. I'm on the latest 2.9.2 of ArcGIS Pro.

Here is my expression in label properties:



if(DomainName($feature, 'Private')=="Yes") {
return "<CLR red= '197', green= '0', blue='255'>"+ $feature.AssetId+ "</CLR>"
}
else {
return "<CLR red= '56', green= '168', blue='0'>" + $feature.AssetId + "</CLR>"
}



The first color is purple

The second is green

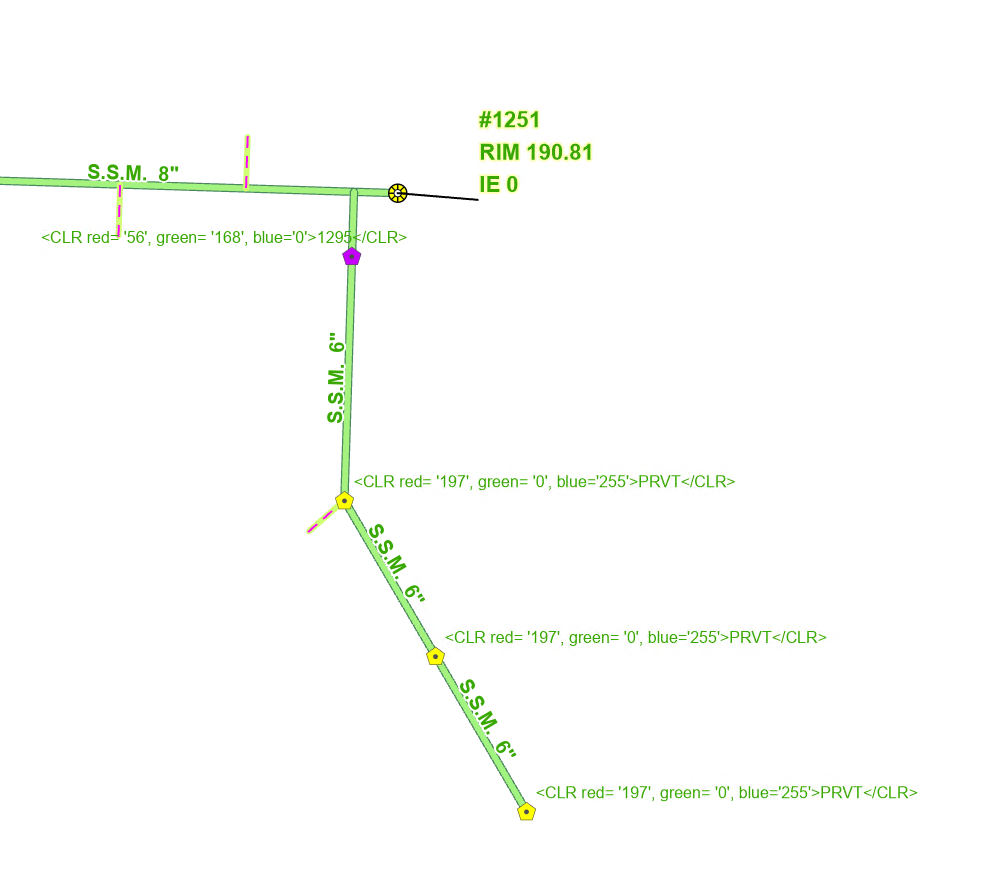

But instead, I get the actual code and not the color text I want. Plus, the colors are backward. Purple sewer cleanout should match RBG color purple for when (DomainName($feature, 'Private') == "Yes") or else when it's "No", RBG color should be green.



What am I doing wrong?



JohannesLindner

What am I doing wrong?

Remove the commas inside the CLR tag.



the colors are backward

I don't know your data structure, but from the screenshot it seems to be correct? The purple asset has an AssetID (1295), so it shows as green text. The yellow assets have AssetID "PRVT", so the labels are purple.

Maybe try using the actual field values instead of the DomainName.
