ArcGIS Pro Attribute Rule to pass a value from child to parent

mmarkovic

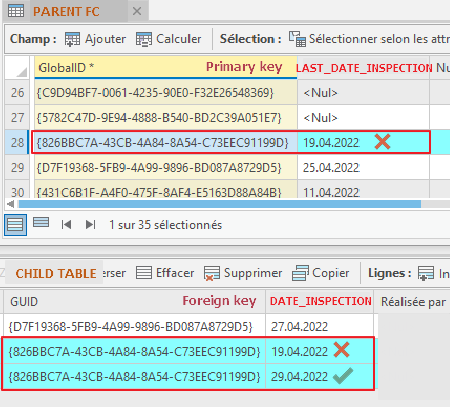

I have an ArcGIS geodatabase with a parent feature class related to a child stand alone table containing the various inspections made on each parent feature. Primary key is GlobalID and foreign key is GUID.

In ArcGIS Pro, I'm trying to edit an attribute rule to automatically populate a LAST_DATE_INSPECTION field in the parent feature class with the most recent inspection (DATE_INSPECTION field in the child table).

The code I did is only updating the parent LAST_DATE_INSPECTION field with the first inserted inspection date of the child table, not the most recent date. Looks like my filter isn't working.







    // calculation attribute rule on child table, field DATE_INSPECTION
    // triggers: Insert, Update, Delete

    //Foreign key in child table
    var fk = $feature.GUID

    //Load all inspections of the feature
    var related_inspection = FeatureSetByName($datastore, "CHILD_TABLE_NAME",['GUID'],false)

    //Filter the most recent inspection date of the feature
    var last_inspection = First(Filter(related_inspection, 'GUID = <a href="https://community.esri.com/t5/user/viewprofilepage/user-id/225383">@fk</a>'))

    //Return nothing if no date found
    if(IsEmpty(last_inspection)){
    return ;
    }

    //Updating DATE_INSPECTION field in parent feature class
    return {
    "result": fk,
         "edit": [{
            "className" : "PARENT_FC_NAME",
               "updates": [{
                 //selecting the parent feature to update
                 "GlobalID" : last_inspection.GUID,
                 //Update the LAST_DATE_INSPECTION field in parent feature class
                 "attributes" : {'LAST_DATE_INSPECTION': last_inspection.DATE_INSPECTION
    }
                           }]
                  }]
    };



JohannesLindner

You're missing a step.

You return the first entry of the filtered feature set, which is the first inspection for that asset.

What you want to do:

• load the feature set and filter it
• sort the related features by date, descending
• return the first feature



//Foreign key in child table
var fk = $feature.GUID

//Load all inspections of the feature
var inspections = FeatureSetByName($datastore, "CHILD_TABLE_NAME",['GUID'],false)
var related_inspections = Filter(inspections, 'GUID = <a href="https://community.esri.com/t5/user/viewprofilepage/user-id/225383">@fk</a>')

// (if you have a relationship class, you can also do it like this)
var related_inspections = FeatureSetByRelationshipName($feature, "RelationshipName", ["GUID"], false)

// (also, you have a trigger on delete. if you delete an inspection, it will
// still be in the table when the rule is executed, so you should filter it out:)
if($editcontext.editType == "DELETE") {
    var pk = $feature.PrimaryKeyOfChildTable
    related_inspections = Filter(related_inspections, "PrimaryKeyOfChildTable <> @pk")
}

//Filter the most recent inspection date of the feature
var last_inspection = First(OrderBy(related_inspections, "DATE_INSPECTION DESC"))
