Create a single line from a point using the attributes of that point

LarisaJohnstone

Hello,

Does anyone know if it is possible to create a line feature from a point using an angle and distance field defined in that point attribute data?

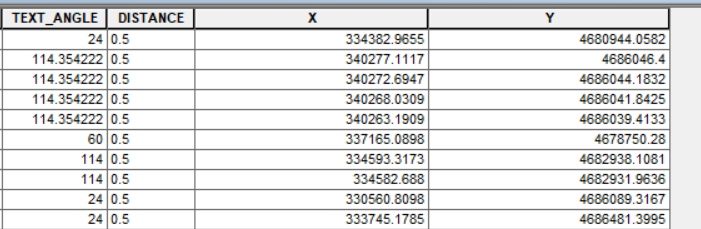

Basically I want a line to be drawn from the point at a specified distance and angle. The end resultant line can have the point as a centre point starting point or end point, it does not matter. Also, I have thousands of points to do this too...they all have the same length, but various angles.

Thanks

Larisa

Find more posts tagged with

Accepted answers

DanLee

You can use Bearing Distance To Line tool:

https://pro.arcgis.com/en/pro-app/latest/tool-reference/data-management/bearing-distance-to-line.htm

All comments

DanLee

You are welcome. Glad it worked for you. 🙂

LarisaJohnstone

Thank you DanLee

This worked perfectly. I was not aware of this tool. Thank you for educating me!

Larisa

DanLee

You can use Bearing Distance To Line tool:

https://pro.arcgis.com/en/pro-app/latest/tool-reference/data-management/bearing-distance-to-line.htm

RobertBorchert

Actually pretty simple. Use SOH CAH TOA to determine the O and A and add them to the original X,Y

The generate your lines from the table
