Building Cypher Query using spatial relations?

xingchenc

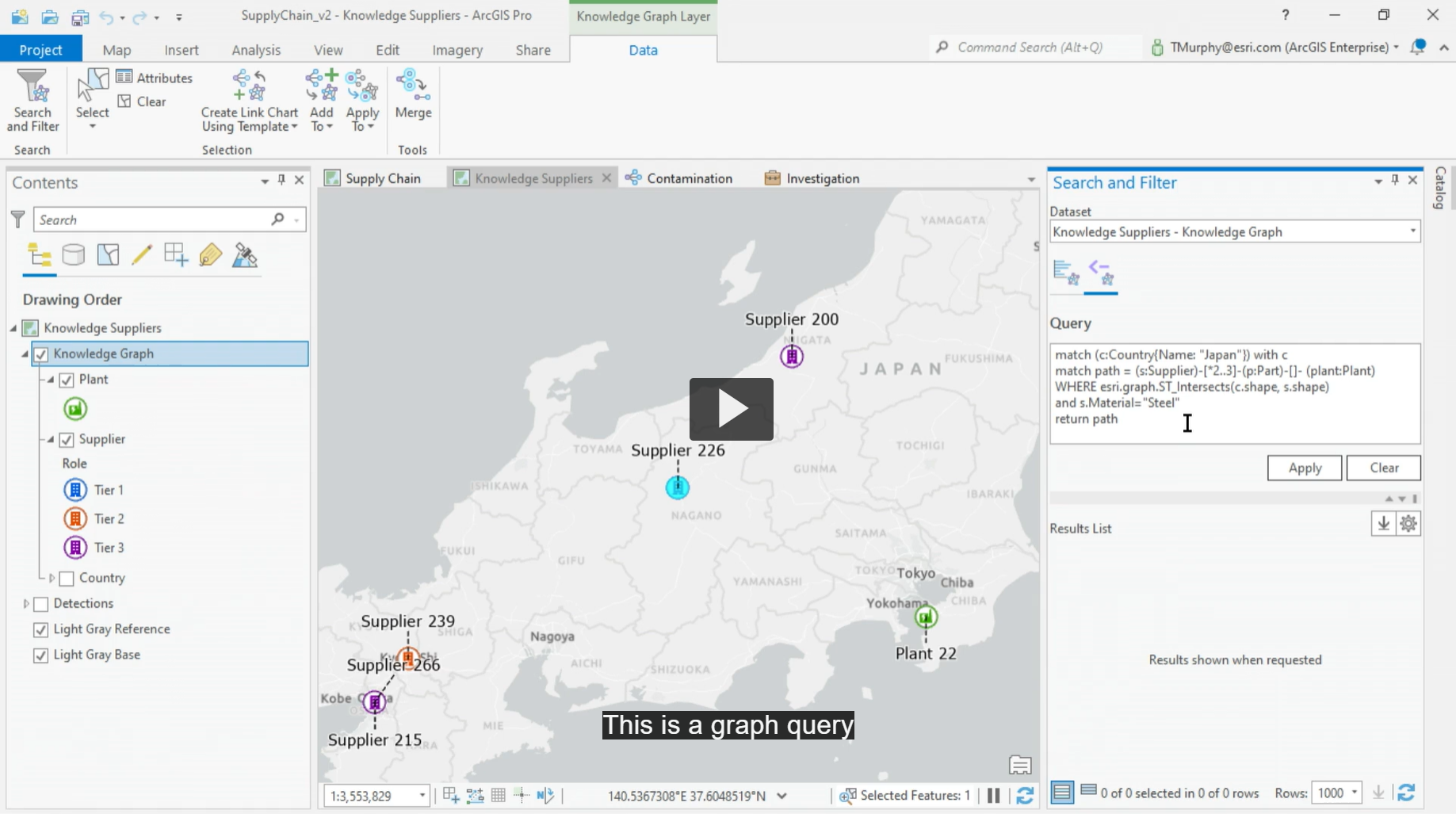

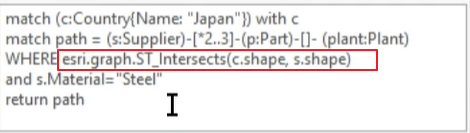

When I look closely at the supply chain demo shown at Esri 2022 developer summit(Plenary | 2022 Esri Developer Summit - Esri Videos: GIS, Events, ArcGIS Products & Industries), I noticed that inside the Cypher Query, it compares the spatial relationship between the two entities and returned the path that has the correct relationship(in this case, "Intersect").

The capability to query entities using spatial relations is a huge bonus when extracting information from the Knowledge Graph. However, when I was looking for detailed explanations regarding how this is done in the ArcGIS Pro help, I found nothing. I was wondering if anyone know where should I look?

@MeganBanaski1 Hi Megan, I was wondering if you have more information on this stuff?

Find more posts tagged with

Knowledge graphs

Accepted answers

MeganBanaski1

@xingchenc Currently, supported spatial relation operators are esri.graph.ST_Equals(<geom>, <geom>), esri.graph.ST_Intersects(<geom>, <geom>), and esri.graph.ST_Contains(<geom>, <geom>).

For spatial utility, there is esri.graph.ST_GeoDistance(<geom>, <geom>) and for spatial construction there is esri.graph.ST_SKTToGeometry(string).

All comments

MeganBanaski1

Hello, there is not currently a spatial function in openCypher to return an entity's Length or Area. You could use other tools to calculate these and populate them as properties on the entities, then in the query return the values in those properties.

xingchenc

@MeganBanaski1

Hi Megan, could you please share with us the newest suppoted spatial funtions on a Neo4j /ArangoDB knowledge graphs?

specifically, we currently would like to use cypher query to return an entity's Length and Area, is there a way to achieve it?

xingchenc

Thanks Megan!

MeganBanaski1

Apologies there was a typo in there, it is esri.graph.ST_WKTToGeometry(string). It constructs a geometry from the OGC simple feature access well-known text format.

xingchenc

Hi Megan,

Thanks a lot, this is really helpful!

BTW, can you elaborate on the esri.graph.ST_SKTToGeometry(string) method?

MeganBanaski1

@xingchenc Currently, supported spatial relation operators are esri.graph.ST_Equals(<geom>, <geom>), esri.graph.ST_Intersects(<geom>, <geom>), and esri.graph.ST_Contains(<geom>, <geom>).

For spatial utility, there is esri.graph.ST_GeoDistance(<geom>, <geom>) and for spatial construction there is esri.graph.ST_SKTToGeometry(string).
