Adding Shape Marker on Extremities of Polyline

Question

Hello,

I am working with Road layer and I need to put arrows on the end points of road, like this:

I am adding Shape Marker at extremities of polyline and it is the easiest part.

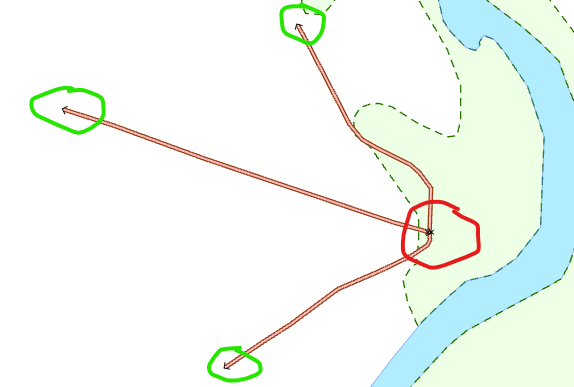

Sometimes I have to merge roads (because they have the same ID) in the middle of one for roads. In this case the road should have 3 endpoints and I need to put arrows on these.

The problem is that it puts arrows on the merge point, but I do not need it there and can't find how to remove these arrows from the merge point.

Anyone could help me with this please?

BrianMoT · Answer

Thank you Dan,

it seems that it is not the problem of overlap, I have tried different styles also. I do not need any symbol on the vertex where polylines are merged. I need arrows on the endpoints only and I do not have idea why it puts arrows on the merging point.

danretired · Answer

Other than changing the style completely, this individual had a potential solution for overlaps

Solved: shape markers covering each other - Esri Community
