Search symbols does not return any style items

KarthikAditya

I'm trying to find a Line Symbol in the project style items but the function returns an empty collection. This is my reference

//Get all styles in the project
var styleProjectItem2D = Project.Current.GetItems<StyleProjectItem>().FirstOrDefault(s => s.Name == "ArcGIS 2D");

//Get a specific style in the project by name
var arrowLineSymbol = styleProjectItem2D.SearchSymbols(StyleItemType.LineSymbol, "Arrow Line 2 (Mid)")[0];

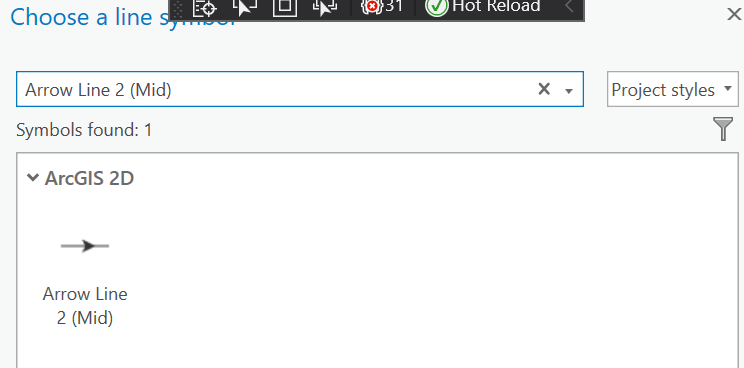

The 'Arrow Line 2 (Mid)' symbol cannot be found even though it is available in the ArcGIS Pro project style





GKmieliauskas

Hi,

You can repair project manually. Project file is renamed zip file. You can extract it and modify damaged part.

More info in my own question here:

https://community.esri.com/t5/arcgis-pro-sdk-questions/styleprojectitem-method-searchcolorramps-always/m-p/1141613#M7747
