Attribute Rule - Calculation Type - Not working

Raj-Chavada

Hello,

We have two feature classes A & B in enterprise geodatabase environment. They are participating in a relationship class.

A - Projects

B- Sewer upgrades

Our goal/requirement is to automatically update the common attributes on existing features in B if the same attribute fields are updates in A.

To accomplish this, base on the example available here, I came up with following (immediate calculation rule on A):



//s1 - get all the features from sewer upgrades feature class
var destination = FeatureSetByName($datastore, "GEO_DB.ENG_SD.SewerUpgrade", ["DBNUMBER","TECH_REV", "CONS_ST", "CONS_ED", "EST_CON_DUR", "STATUS"], false);

//s2 - get dbnumber edited in the projects developments feature class
var dbnumber = $feature.DBNUMBER;

//s3 - filter feature based on the existing edit
var match = Filter(destination, "DBNUMBER = @dbnumber");

//s4 - update records in sewer upgrades
var sewerupgradelist = [];
var counter = 0;
var numfeatures = Count(match);

if (numfeatures > 0) {
    for (var feature in match)  {
           sewerupgradelist[counter] = {
                'OBJECTID' : feature.OBJECTID,
                'attributes' : {
                         'CONS_ST' : $feature.CONS_ST,
                         'CONS_ED' : $feature.CONS_ED,
                     'EST_CON_DUR' : $feature.EST_CONS_DUR,
                        'TECH_REV' : $feature.TECH_REV,
                          'STATUS' : $feature.STATUS
                        }
                     }
                     counter++
                  }
                  return {
                         'result' : numfeatures + ' sewer upgrades features found.',
                          'edit' : [{
                               'className' :  "GEO_DB.ENG_SD.SewerUpgrade",
                                'updates' :   sewerupgradelist
                             }]
                      }


  }else {
    return 'No features found under sewer upgrade with matching DBNUMBER.'
  }

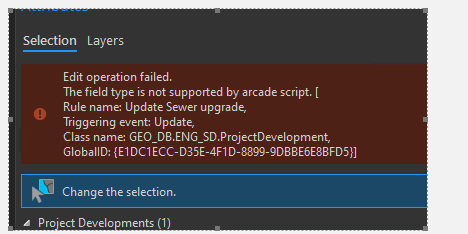

While there are no validation errors, ArcGIS Pro comes up with following error during testing:





Any help in resolving the issue will be appreciated.



JohannesLindner

According to the documentation of the attribute rule dicitonary keywords ,

• the "result" field in the returned dictionary is either
  • a value for the field definied as return field for the rule
  • a dicitionary for the geometry and/or attributes of the feature, if you haven't set a return field in the rule
• You return a log message. If you haven't set a text field as output field of the rule, this should throw an error.
• The ObjectID in the update array should be given in the dictionary field "objectID", not "OBJECTID", don't know if this would cause an error, though.



So, try this:

//s1 - get all the features from sewer upgrades feature class
// you only need DBNUMBER (to filter) and OBJECTID (to send edits)
var destination = FeatureSetByName($datastore, "GEO_DB.ENG_SD.SewerUpgrade", ["DBNUMBER","OBJECTID"], false);

//s2 - get dbnumber edited in the projects developments feature class
var dbnumber = $feature.DBNUMBER;

//s3 - filter feature based on the existing edit
var match = Filter(destination, "DBNUMBER = @dbnumber");

//s4 - update records in sewer upgrades
var sewerupgradelist = [];
var counter = 0;

for (var feature in match)  {
    sewerupgradelist[counter] = {
        'objectID' : feature.OBJECTID,
        'attributes' : {
            'CONS_ST' : $feature.CONS_ST,
            'CONS_ED' : $feature.CONS_ED,
            'EST_CON_DUR' : $feature.EST_CONS_DUR,
            'TECH_REV' : $feature.TECH_REV,
            'STATUS' : $feature.STATUS
        }
    }
    counter++
}
return {
// only use this if you have set a text field as return field for the rule
//    'result' : numfeatures + ' sewer upgrades features found.',
    'edit' : [{
        'className' :  "GEO_DB.ENG_SD.SewerUpgrade",
        'updates' :   sewerupgradelist
    }]
}
