Retrieve feature attributes from the Attributes Pane via a context menu

Michael Hirschheimer

I've added a context menu to the Attributes Pane when you right click on a feature.
Upon clicking on the context item, I want to retrieve attributes from the feature.

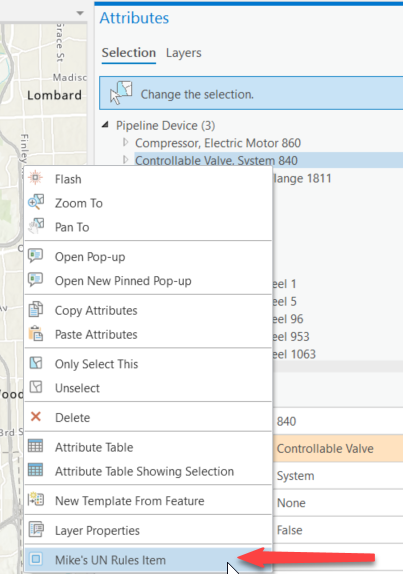

Using the screenshot, upon clicking on 'Mike's UN Rules Item', I want to retrieve the Objectid and it's layer name. Results would be: 840 and Pipeline Device

Does anyone have an example of how to get this information?

I'm using Pro SDK 2.8

Thanks,

Mike

Find more posts tagged with

Accepted answers

NarelleChedzey

Mike,

I have added an issue to our backlog for this to be addressed. It is too late for it to be included in ArcGIS Pro 2.9 but we will consider it for the next release.

Thanks

Narelle

All comments

NarelleChedzey

Hi Mike,

Typically with items on a context menus you would use the FrameworkApplication.ContextMenuDataContext property (https://pro.arcgis.com/en/pro-app/latest/sdk/api-reference/#topic10164.html) and then cast this to an appropriate public API class to retrieve the context object.

Unfortunately in this case there is no public API class in the Editing module that corresponds to an item in the Attributes tree view. We can look at adding something to a future release to facilitate your scenario.,

Thanks

Narelle

Michael Hirschheimer

Hi Narelle,

I thought the “Flash” context menu item was using the same attributes that I’m trying to get retrieve, the FeatureLayer and the objectid. Is the Flash item being handled differently than what I’m trying to do?

Thanks,

Mike

NarelleChedzey

Mike,

Essentially the flash item you see on the context menu is a button (similar to what you have for Mikes UN Rules Item) that obtains the mapMember and objectID of the feature that you right click on in the Attributes pane. It would then call the FlashFeature API call that you referenced.

So in psuedo code it would be like this

  internal class FlashButton : Button
  {
    protected override void OnClick()
    {
      var context = FrameworkApplication.ContextMenuDataContext;
      var items = context as IEnumerable<AttributeTreeItem_InternalClass>;
      var item = items.FirstOrDefault();
      if (item != null)
      {
        MapView.Active.FlashFeature(item.Layer, item.ObjectID);
      }
    }
  }

So yes it is doing exactly the same thing that you want to do.

The key difference is that the AttributeTreeItem_InternalClass is internal only to the Editing code. As an add-in developer, you only have access to classes and methods that are in the public API. Right now, the public API is missing the class used in line 6 to translate from the context object in order to obtain the layer and objectID.

Hope this is clear.

Narelle

Michael Hirschheimer

Hi Narelle,

Thanks for the additional information. I now understand why this isn't do-able at Pro 2.8.

Is there anything I can submit to get this functionality considered for a future release?

Thanks,

Mike

VqSp85

Hi,

I resume this topic because we would need on a important project for big telco company to have access to these objects,
would it be possible to know in which version of the SDKs they will be made available?

Michael Hirschheimer

@newbiedotnetguy @VqSp85

The enhancement described in this thread will be included in the upcoming Pro SDK 3.1 release.

It will also be documented in the Editing Pro Concepts pages.

Thanks,

Mike
