WAB Developer Addition - Getting Related Objects to work without having tables in Layer List?

ipeebles

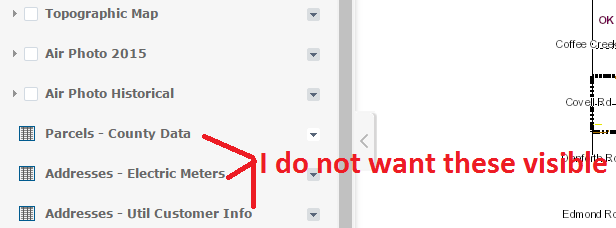

I have an application and services that contain related objects. Is there a way to have the related objects work without having the related objects as tables in the layer list? How can I hide these tables and still have the related objects work. I have had some end user raise concerns about the tables being visible.

Anyone have any ideas? Here is a sample:

Find more posts tagged with

Accepted answers

RobertScheitlin__GISP

Ian,

To exclude all tables you go to the LayerList widget folder and open the LayerListView.js and comment out the getTableInfoArray portion of the postCreate function:

postCreate: function() {
      array.forEach(this.operLayerInfos.getLayerInfoArray(), function(layerInfo) {
        this.drawListNode(layerInfo, 0, this.layerListTable, true);
      }, this);

      /*array.forEach(this.operLayerInfos.getTableInfoArray(), function(layerInfo) {
        this.drawListNode(layerInfo, 0, this.tableListTable, true);
      }, this);*/
    },

All comments

RobertScheitlin__GISP

Ian,

I actually don't know the answer to that one. I have not tried.

Don't forget to mark this thread as answered by clicking on the "Correct Answer" link on the thread that answered your question.

ipeebles

Robert, you are the man! I just did commented out those line and that works! Perfect! Also, my related objects still works.

BTW, does WAB support related objects on related objects?

That is.. I have a feature such as a traffic pole, the traffic pole then has a mast arm as a related object. The mast arm then has a signal head as a related object, the signal head has an LED as a related object. Can I drill down that far to get that information from a Popup.

Thank you so much for the feedback.

RobertScheitlin__GISP

Ian,

To exclude all tables you go to the LayerList widget folder and open the LayerListView.js and comment out the getTableInfoArray portion of the postCreate function:

postCreate: function() {
      array.forEach(this.operLayerInfos.getLayerInfoArray(), function(layerInfo) {
        this.drawListNode(layerInfo, 0, this.layerListTable, true);
      }, this);

      /*array.forEach(this.operLayerInfos.getTableInfoArray(), function(layerInfo) {
        this.drawListNode(layerInfo, 0, this.tableListTable, true);
      }, this);*/
    },
