Generate reports from view analysis layers

Question

Hello,

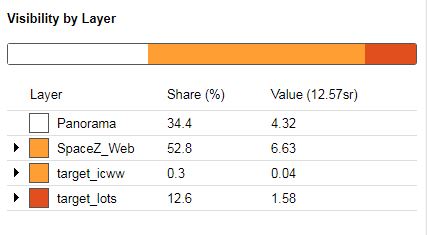

I am trying to generate a report from a viewdome analysis result (values in Visibility by Layer). Is it currently possible to extract this information in report?

I tried to apply report rule in cga, but was not able to apply it in this analysis layer.

KerryKang1 · Answer

Hello Thomas,

Thank you for your response. getVisibleSolidAngle function worked perfectly.

Regards,

ThomasFuchs · Answer

Hi Kerry There is 2 ways to do this: * In the Inspector highlight the table with the visibility information, then copy paste into a spreadsheet * Use Python to query the information and write it out to a .csv file, see: Python Scripting Command Reference getVisibleSolidAngle(self, viewshed, requestedLayers) Get the layers' visible solid angle from the viewshed. @param viewshed: The Viewshed . [Analysis] @param requestedLayers: An array of layers . [sequence of ] @return: result. [sequence of float] @example: # get the Solid Angles of the Viewshed per Object Layer viewshed = ce.getObjectsFrom(ce.scene, ce.isViewshed)[0] panoramaLayer = ce.getObjectsFrom(ce.scene, ce.withName("'Panorama'"))[0] newShapesLayer = ce.getObjectsFrom(ce.scene, ce.isLayer, ce.withName("'New Shapes'"))[0] layers = [panoramaLayer,newShapesLayer] solidAngles = ce.getVisibleSolidAngle(viewshed, layers) print "Panorama : ", solidAngles [0], " steradians" print "New Shapes: ", solidAngles [1], " steradians"‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍‍

KerryKang1 · Answer

Hello Cheryl,

Thank you for your response. so I assume that it is the same for other analysis layers -  no report available for view corridor and veiwshed. However, is there anyway to export that result into external files directly such as csv?

Thank you.
