Variable Integration with Extract by Attributes

AustinGootee

Hi Everyone Quick Question,

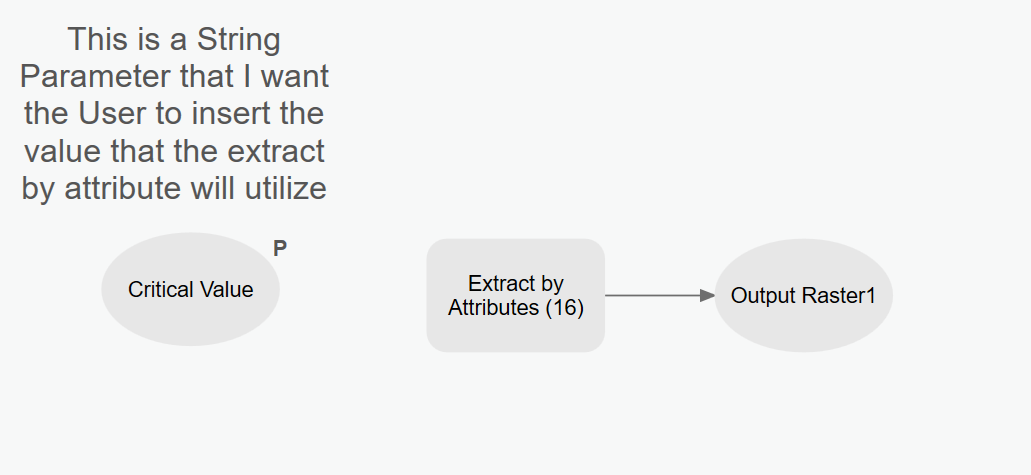

I am trying to build a model in model builder that ask for a user to define a value in a parameter (string variable) and then integrate this string variable into my raster's extract by attribute tool (spatial analyst). Basically I want a user to be able to enter say "3.2" which is related to a string variable and then utilize this string variable in the where statement of the extract by attribute tool.

Where value <= (User define value in string variable)

The problem I have is I don't know how to integrate the separate string variable into the sql where clause.

Find more posts tagged with

Accepted answers

GISMallku

Are you familiar using inline variable substitution in ModelBuilder? https://pro.arcgis.com/en/pro-app/latest/help/analysis/geoprocessing/modelbuilder/inline-variable-substitution.htm

I made a quick mock-up based on your screenshot and this works fine.

Note, though, that my Critical Value variable is a Float, not a String. Why do you need the variable to be a String when ultimately it has to be a number in order to compare against a numerical value in the raster? The users would be expected to enter a number for that parameter, correct?

All comments

AustinGootee

I am, I had wanted to use inline variable substitution but was unsure if it would work with the SQL coding. The reason I had used a string was simply because I couldn't find a number/float variable type in the model builder options and figured that I could just as easily utilize a float() function to transform the string into a float.

GISMallku

Are you familiar using inline variable substitution in ModelBuilder? https://pro.arcgis.com/en/pro-app/latest/help/analysis/geoprocessing/modelbuilder/inline-variable-substitution.htm

I made a quick mock-up based on your screenshot and this works fine.

DavinWalker2

Sorry I didn't explain it well enough. The FieldName represents the field you are doing the WHERE clause against. In your case it's VALUE

'"VALUE" = \'{0}\'' .format(NOAA_IH_Year_1_Crit_Value)

AustinGootee

I apologize, I am new to this whole sql coding, python is where my expertise lie, but i am trying to build my model out in model builder for other coworkers who are less skilled in python. I am still running into some errors and I think it's just because I am having a hard time wrapping my head around the coding.

DavinWalker2

Hi Austin,

This should hopefully help out.

Your SQL query should formatted like this:

'"FieldName" = \'{0}\'' .format(Critical_Value)
