Error when using arcpy.GenerateTessellation_management in ArcGIS Pro 2.6 with arcpy Python

Romero_Dario

sdf = pd.DataFrame.spatial.from_featureclass(os.path.join(gdb_file, gdb_layers[1]))
sdf.head()
# Describe the input feature and extract the extent
description = arcpy.Describe(os.path.join(gdb_file, gdb_layers[1]))
extent = description.extent
tessellation_extent = sdf.spatial.full_extent
spatial_ref = extent.spatialReference

I am trying to generate a Feature Class with hexagons by using the method GenerateTessellation_management with this code:

arcpy.GenerateTessellation_management(Output_Feature_Class=gdb_file+r"\hex_tessellation",
                                      Extent=tessellation_extent,
                                      Shape_Type="HEXAGON",
                                      Size="1000000 Square Foot",
                                      Spatial_Reference=spatial_ref
                                     )

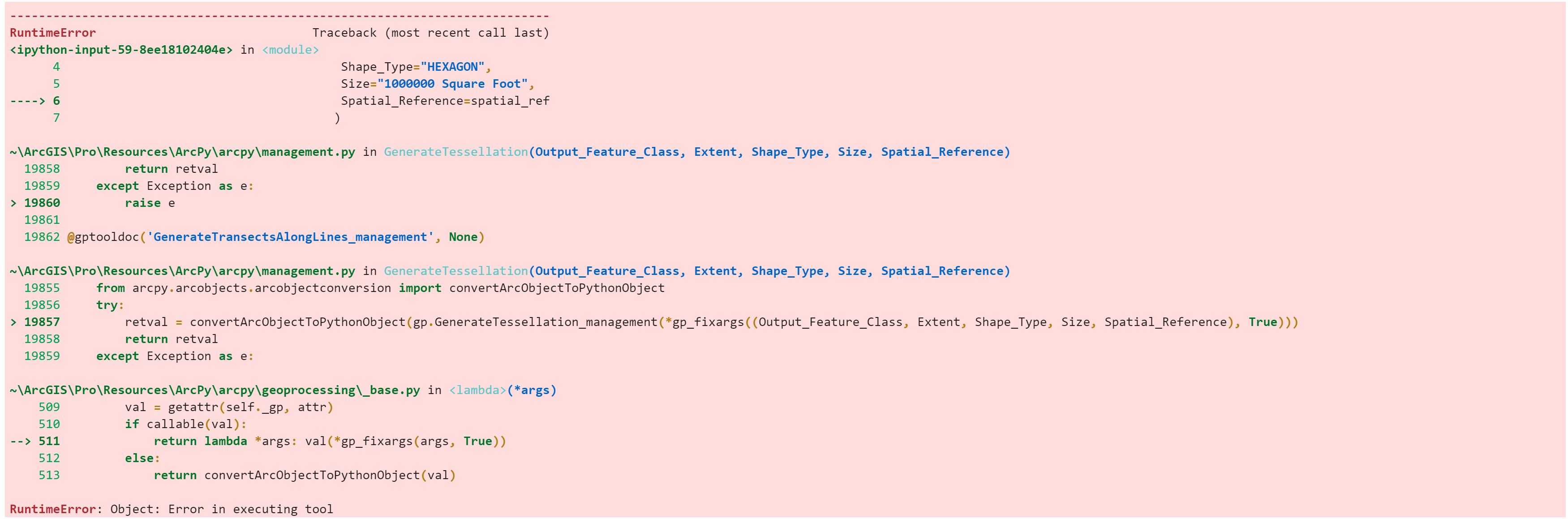

And I am getting this error:

I am following the documentation as per the following website:

https://pro.arcgis.com/en/pro-app/latest/tool-reference/data-management/generatetesellation.htm

Any idea why this is not working?

Thanks in advanced.

Dario

Find more posts tagged with

Accepted answers

All comments

danretired

0.1 degrees squared would be the area of each hexagon, not 5 degrees... that might be your full extent.

Just try something much smaller and check the coordinate system you want to use eg GCS WGS84 if you must work in degrees

Romero_Dario

... another idea would be to convert the layer to an Equal-area projection, run the procedure. And see what happen.

Romero_Dario

I am working on a global scale. Ideally the hexagon(s) should be 0.1 degrees on the side. Although I think the problem might be in the spatial reference. Don't you think.

Romero_Dario

I've changed it to be the area of equal size hexagons where the formula for the area is:

there I added this equation to have hexagon of 5 degrees each, consequently:

area = "{size} Square{unit}s".format(size=((3.0*math.sqrt(3.0))/2.0)*(a**2.0), unit=u)
area
'64.9519052838329 SquareDegrees'
... then the result is again the same error. Can this function deal with geographical coordinates rather than linear (like UTM)?
# Use the extent's spatial reference to project the output
spatial_ref = extent.spatialReference
spatial_ref

danretired

That is a horrendously large area and I suspect a reason that you might be having issues

Romero_Dario

Thanks for your reply.

Actually the Feature Class in on a shape that is on Degrees. I might use the area as:

w = extent.width
h = extent.height
u = extent.spatialReference.angularUnitName
w, h, u
(359.999999902, 179.491346668, 'Degree')
area = "{size} Square{unit}s".format(size=w/3 * h/3, unit=u)
area
'7179.653864765539 SquareDegrees'

but got the same error. Do you have any other suggestion.

Thanks.

danretired

from here

Generate Tessellation (Data Management)—ArcGIS Pro | Documentation

w = extent.width
h = extent.height
u = extent.spatialReference.linearUnitName
area = "{size} Square{unit}s".format(size=w/3 * h/3, unit=u)

have you confirmed setting the area unit? I looks like a different configuration is expected than what you have shown
