Dashed Polygon Outline Symbology Not Displaying Properly

ArielLow2146

I published a hosted feature service from ArcGIS Pro. When I view the layer in the ArcGIS Online Map Viewer the dashed part of the polygon outline keeps disappearing when I zoom in and out. Is there anything I can do to get my symbology to consistently appear?

Najděte více příspěvků označených jako

Mapping

Accepted answers

russell_roberts

Thanks for reporting!! This isnt a release regression but It looks like an issue with overlapping boundaries, will log an issue in with JS Maps SDK and hopefully get this fixed for the next release.

All comments

russell_roberts

No updates here - this is a limit when you have overlapping boundaries that are touching one another there will be cases where the dashes are not in sync based on scale, the segments and dash configuration so you will see similar issues in Pro

This is where I have used Johns technique above where you end up making a second boundary lines layer and you wont have dashes that can conflict with one another

rwrenner_abtglobal

@RussRoberts I am experiencing the same issue as @ArielLow2146. I'm mostly seeing the dashed polygon outline turn into a solid line (see below) rather than disappear completely, but this consistency also seems confusing for users. Would be interested in any update of this getting fixed.

Thanks,

-Rylee

ArielLow2146

@RussRoberts Thank you for sharing the video! I'm not sure it addresses the same issue I'm running into.

The video seems to focus on problems caused by dash patterns overlapping. I have a solid dashed stroke which is on top of a solid stroke for each polygon. This resolves the issue of dash patterns intersecting with each other in Pro (though I'm not convinced it's working as well in Online) and also helps with accessibility.

Screenshot 2026-03-05 121400.png

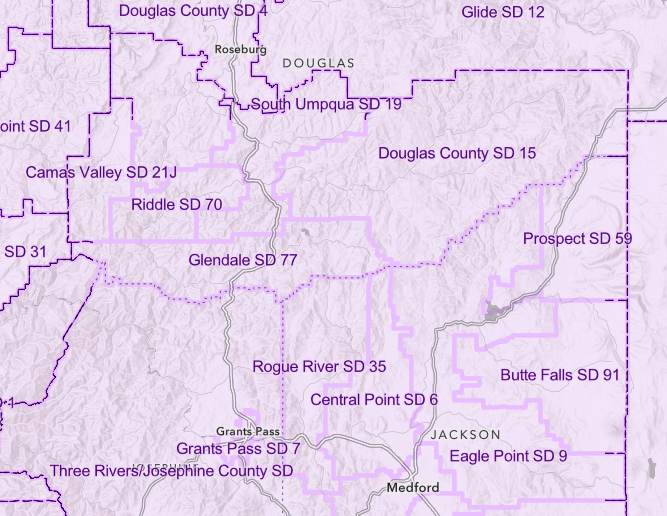

The issue I'm most concerned about is when I zoom in to certain areas of the map (only in Online) the dashed stroke disappears completely.

Screenshot 2026-03-05 122103.png

I can definitely explore publishing a hosted feature service with lines rather than polygons, just want to make sure we're talking about the same issue.

russell_roberts

So it is a limit that we have with rendering in this overlap case here and can also be seen in Pro. A workaround I have tried out and which maybe could fit your workflow was following the steps John did in this tutorial where he had multiple state boundaries that could conflict with one another. https://www.youtube.com/watch?v=yn7rxPeaGgw

ArielLow2146

@RussRoberts do you know if this issue ever got resolved? I'm still seeing the same behavior. Totally understand if it hasn't made it to the top of the list yet

ArielLow2146

@RussRoberts Thanks for looking into this and getting an issue logged!!

russell_roberts

Thanks for reporting!! This isnt a release regression but It looks like an issue with overlapping boundaries, will log an issue in with JS Maps SDK and hopefully get this fixed for the next release.

ArielLow2146

@RussRoberts Thanks! I just added your russell_jsapi account to a group. Once you accept the invite you should be able to see this feature service https://www.arcgis.com/home/item.html?id=05c37c7695c94c06b222431b61768d0b If you go to the visualization tab of the item details page and zoom in on the Douglas County area in south western Oregon I'm able to pretty consistently see the problem shown in the screenshot.

russell_roberts

If you can share your map I can take a look to see if I can spot any issues.

Faiez

Hi!

It is due to the range of visibility. You have applied different range/scale.
