unsupported CIM symbology on layer

469
3
06-03-2025 03:10 PM
Labels (1)
JGVadnais1
Regular Contributor

Hello,



The line layers I created in ArcGIS Pro, display an Unsupported CIM symbology on layer message when I add it to a Scene.  What does this mean and how do I fix it?



Thank you,

Jenn V

0 Kudos
3 Replies
AshtonSmithAssociates
New Contributor

I am having the same issue

0 Kudos
CarlosMazabanda1
New Contributor

In the layer menu "properties". Go to "Elevation", select "on the ground"

0 Kudos
FabioFornallaz
Esri Contributor

Thanks a lot for your valuable question and apologize for the late reply.

ArcGIS Pro uses Cartographic Information Model (CIM) symbols by default. This symbol type is not supported yet by all our web applications, including Scene Viewer. Therefore, you will see an error message in Scene Viewer.

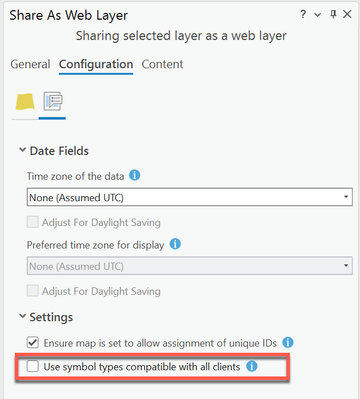

To be able to fix the issue you have to select the Use symbol types compatible with all clients checkbox within the configuration panel when sharing your ArcGIS Pro layer as a web layer. This will make sure that the symbology can be read as well in Scene Viewer.

More information can be found in the following documentation:

https://pro.arcgis.com/en/pro-app/latest/help/sharing/overview/configure-web-feature-layer.htm https://doc.arcgis.com/en/arcgis-online/create-maps/scene-style-layers.htm


Kind regards,

Fabio
