Hi..Is there a key to all the icons used in ArcGIS and ArcCatalog?

By "icon" I mean the graphic found beside the different file types such as the rectangle with three dots for point features, boxes for shapefiles and diamonds for geodatabases.

Thanks!

1 Solution

Accepted Solutions
Highlighted
MVP Frequent Contributor

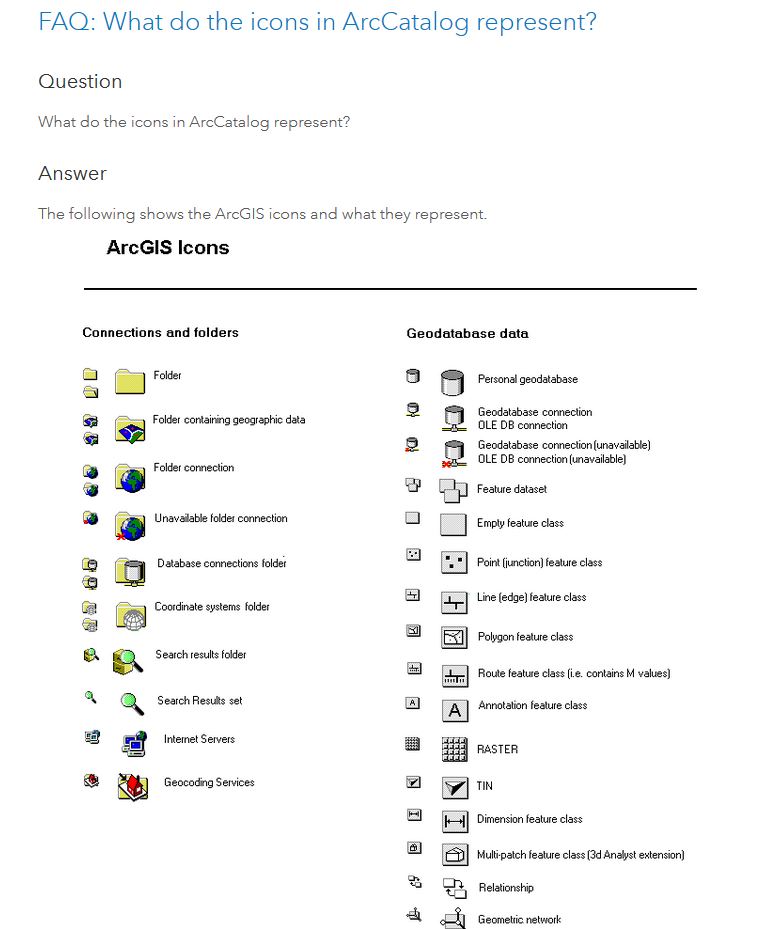

Wait, found it.  Check out the full list at this link:

FAQ: What do the icons in ArcCatalog represent?

-------------

(see above link for all the icons - this is just the first part)

Chris Donohue, GISP

View solution in original post

3 Replies
Highlighted
MVP Frequent Contributor

I don't know if there is a single source for all the icons, but many of them are depicted and labeled in the several help sections for ArcCatalog.  This will require a bit of reading and scrolling around, though.

ArcGIS Help (10.2, 10.2.1, and 10.2.2)  A quick tour of ArcCatalog

ArcGIS Help (10.2, 10.2.1, and 10.2.2)  Making connections in ArcCatalog

ArcGIS Help (10.2, 10.2.1, and 10.2.2)  The Catalog tree and item properties in ArcCatalog

For the ones that are not depicted, one can try creating items in a test environment and see what icon appears.  For example, try making a File Geodatabase and observe what icon ArcCatalog gives it.  Then make a Feature Dataset within the File Geodatabase.  Then Make a point Feature Class, etc.

Chris Donohue, GISP

Reply
0 Kudos
Highlighted
MVP Frequent Contributor

Wait, found it.  Check out the full list at this link:

FAQ: What do the icons in ArcCatalog represent?

-------------

(see above link for all the icons - this is just the first part)

Chris Donohue, GISP

View solution in original post

Highlighted
New Contributor II

Thanks Chris!
