I want to place lines along an existing line. For that im using the tool 'make route event layer'. In the event table are my lines. The problem is that the lines with a length of 1 meter are not showing in ArcGIS (no shape length) and the lines with a length of 2 meter are showing. What goes wrong here and what do i have to change?
Solved! Go to Solution.
Found your 1 meter segment.
This is what i did.
Check your route feature class M Resolution possibly, it's >= 1.
Also please make sure you are posting your questions to correct forum, Geonet Help forum is for the general form related topic, Best place for your question would be Managing Data. This will help you in getting better help.
Thank you for your help. The M-Resolution for the feature class is 0.0001 meter so i dont think thats the problem. Also you cant change the resolution of it. You can give the resolution if you make a new feature class but your are not able to change it in an existing feature class. Do you have another solution for this problem:)
Can you post some screenshots for my better understanding on what your issue is.
The first table has the lines (from_KP_km - to_KP_km) and it connects with the featureclass GDF (2nd picture) with FUGRO_CODE. With the tool make route event layer i want to put the lines from the table on the line in the feature class. The problelm is that only the lines with a length of 2 meter are showing (and not the lines of 1 meter).
Below are my trouble shooting suggestion.
If your route feature class and event table chainage are consistent and correct and there are no locating errors, your event should be located along the route feature class.
I've moved your post into the Managing Data space.You will get a much better answer here as the GeoNet Help is intended for community help and feedback. I have also added in a few additional tags. You can see more
on the community structure, and what topics are under each space from the following documents:
ArcGIS Discussion Forums Migration Strategy
Riyas trouble shooting tips are very excellent way to start. Generating a field for errors is invaluable when troubleshooting LRS events.
To add on to some of Riyas comments... the LRS measure (chainage) is unitless. Typically it is done multiplied by a factor when your referencing system was created to convert the projection units to a measure of the users choice. For example when I create a Linear Referencing System here in Florida, USA I use a projection of State Plane in US Feet. So my M values are in Feet. I then multiplied all the values by factor to convert the M's to Miles. So now when I event map I can use Miles From and To.... So Riyas suggestion to convert your KM to Meters (Assuming the Reference System Measure Unit is in Meters) is probably an excellent start.
The other note I noticed is that route G32 (guessing this is what you used for your route name) will have overlapping segments
One segment from G32 From 12.000 to 12.001
Another overlapping above G32 From 12.000 to 12.002
This will create a line segment of two lines on top of each other with the bottom one slightly longer
Hopefully this helps somewhat.
As Ted mentioned, for both of your examples, the sets of line segments have overlapping measures that will cause the 1 meter line to fall inside of a 2 meter line. Since all your lines are the same color and thickness and no end markers, there is no way you will ever see the overlapping lines as separate features, but they are actually there, whether you see them or not. It appears you have select both segments so that again only the longer one is visibly highlighted. To demonstrate that you actually have a real problem you need to filter out the 2 meter long segments by using a definition query like:
to_KP_km - from_KP_km < .0015
If the 1 meter lines still don't show then the problem is real. But if they do show up after applying the filter then this is simply due to the fact that you are obscuring the 1 meter lines by overlapping the segments.
To use symbology to show that there are actually 2 lines of different lengths that share a segment without using a filter, you would have to add end cap markers to the lines, and use a categorized or proportional symbol that varied the line colors and thicknesses according to the line lengths. I would change the values in the Length_M field to be correct (since they are not correctly reflecting the measure lengths for the 2 meter long lines) and use that to vary the symbols. Additionally, to ensure the lines draw in an order where thinner lines draw on top of thicker lines you would have to do a decreasing length sort of the event table so that the shorter events draw last on top of the longer events, or use separate layers with different definition queries to make shorter lines draw last in the top most layer.

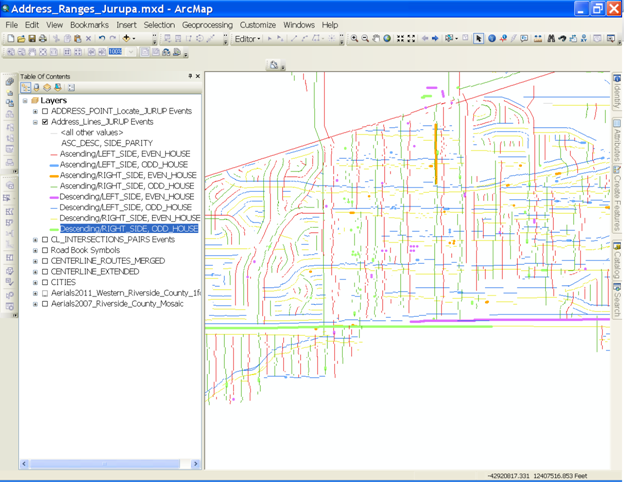

I am not clear what this data is showing or why you would want to create overlapping segments. Most event tables do not contain overlapping events for one attribute type, like speed zones or lanes, unless there is a right and left hand offset to separate the overapping line types. If a left and right hand offset applies then there is a setting to use a numeric field with positive/negative values that will offset the lines left and right so that they do not overlap. Below is an example where I use different symbol categories from two fields to separate overlapping line types using color. Another field is used in the event layer set up to control the left and right hand offsets. These lines represent house number address range data patterns for each side of the road. The side offsets were determined by the position of the actual address point relative to the central lines (the Centerlines are not being shown in this example, only the offset lines). The thicker lines are highlighting unexpected addressing patterns between house pairs with the same types of Orientation and Parity and the events were actually sorted according to their category and measure values to display them in a specific order. The order of the Symbol Categories in the layer symbology list also affects the order in which the lines are drawn, so technically I should move the thicker lines below the thinner lines in the symbol list to get the thin lines to always draw on top of the thicker lines wherever an actual overlap occurs between two different categories.
Thank you all for your help! I use the 2 overlapping lines only to show that the 1 meter line is not showing and the 2 meter line is showing. In the attribute table i see that the shape lenght is '0' for the 1 meter line so it doesnt exist. I had also generating an error field and for the 1 meter lines it says 'zero length extent'. Also i tried to change the distance in meters but then nothing is showing.
