problem rotate, symbol change

425
6
05-20-2021 09:38 AM
Labels (1)
Jenhy_YohannaCaceres
New Contributor II

I need help with the tool rotate by attribute, when I save the value of the angle for the object, the symbol change, I mean, the symbol rotate but is desorganized, the parts that component it doesn't conserve the original form and I don`t how fix this issue...

thanks

Tags (2)
0 Kudos
6 Replies
JayantaPoddar
MVP Esteemed Contributor

Could you share screenshots of the issue?



Think Location
0 Kudos
Jenhy_YohannaCaceres
New Contributor II


this hydrant has angle 0 in this image and the symbol looks normal


but in this I change the angle and the form changes, the circle is not in the center, its the same for the junction near the lines are moved

0 Kudos
RobertBorchert
Frequent Contributor III

I think the simple answer is that your symbol is to complex.  Meaning you created a symbol with many layers.  Some of the layers are rotated within the building of the symbol. Try to create the symbol with out any rotation inside of the symbol.

0 Kudos
RobertBorchert
Frequent Contributor III

Could you do a screen capture of your symbol as it is built?

0 Kudos
Jenhy_YohannaCaceres
New Contributor II

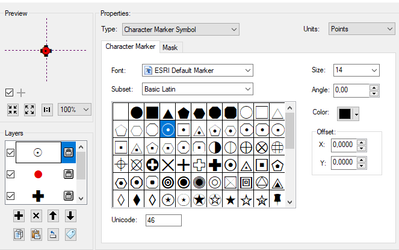

this are the properties

0 Kudos
ErinNovakovich
New Contributor III

When I looked at this close up I can see that your symbol isn't quite centered. If you go into the symbology settings and increase the magnification you will find that each piece is off centered slightly to the left. Try adding to the offset x and y values until it centers in the preview cross hairs.
