Chart options in webapp builder

637
3
02-05-2018 07:43 AM
GUNASEKARANJOSEPH_IRWIN
New Contributor

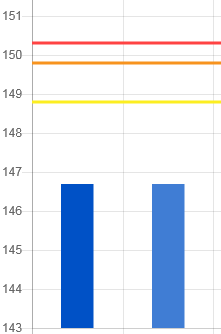

Is there anyway I can create a chart as follows in the webapp builder?any custom widget available?.



0 Kudos
3 Replies
DerekLaw
Community Moderator

Hi Gunasekran,

Charting capabilities in Web AppBuilder are enabled with the Infographic widget,

Infographic widget—Web AppBuilder for ArcGIS | ArcGIS

Although, I don't think it can render exactly what your image shows. I know this is possible in Operations Dashboard for ArcGIS with the Serial Chart element.

Hope this helps,

0 Kudos
JOSEPH_IRWINGUNASEKARAN
New Contributor

Hi Derek,

Thank you. It is a mixed chart with a line(Y) and a bar(x) .Is there any way I can insert the js into the chart widget.I don’t know where I can insert my custom code taken from a chart.js



Just as below.

var myChart = new Chart(ctx, {

  type: 'bar',

  data: data,

  options: options

});

At this point we have a standard bar chart. Now we need to convert one of the datasets to a line dataset.

var mixedChart = new Chart(ctx, {

  type: 'bar',

  data: {

    datasets: [{

          label: 'Bar Dataset',

          data: [10, 20, 30, 40]

        }, {

          label: 'Line Dataset',

          data: [50, 50, 50, 50],



          // Changes this dataset to become a line

          type: 'line'

        }],

    labels: ['January', 'February', 'March', 'April']

  },

  options: options

});



Please let me know ,if there is any possibilities.



Thank you



Joseph Irwin.

0 Kudos
DerekLaw
Community Moderator

Hi Joseph,

Sorry, I am not a developer - so I can't help with your question. I suggest you re-post your 2nd post as a new question in this forum, Web AppBuilder Custom Widgets.

Also, since you mentioned,

> It is a mixed chart with a line(Y) and a bar(x)

Ops Dashboard does not support mixed charts. I thought your lines were guideline markings for the bar chart.

Hope this helps,

0 Kudos
