Create a Connectivity Association via a Feature Template

654
3
Jump to solution
03-14-2022 09:25 AM
by Anonymous User
Not applicable

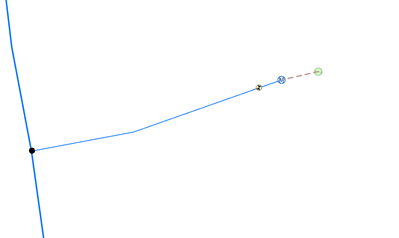

I am trying to create a feature editing template for a water utility network that will create connectivity associations between a meter and a flow valve.  This can be done manually--the rules work just fine.  This is all part of a residential service creation process.  A Tap |  3/4" residential service | service valve | Meter | Association | flow valve.


The meter to flow valve was historically managed with a line segment however that line segment didn't actually exist.  It was there to provide connectivity so we dropped it.

Question: How can a feature template be built to handle the association between the Meter and the Flow Valve?  I've tried different approaches but can't figure out how to add it to the template so the line after the meter isn't created but an association is.  If it can't be handled with feature templates is there another cool solution out there?  Thanks!

0 Kudos
1 Solution

Accepted Solutions
MikeMillerGIS
Esri Frequent Contributor

You will need to use a preset template

- Place the Meter and Flow valve and create the association

- Select the features

- Click Move on the Editor Toolbar, a yellow circle will appear in the middle of the two features

- Hold Control Key and hover the yellow circle, click and drag this to the flow valve

- Open Manage Templates

- Go to Flow Valve and generate a new preset template



This will use the flow valve as the insert point and the snapping.  You can use the point and rotate tool to place the feature and rotate it.

I would like to see group templates support Junction to Junction associations, so please log the enhancement.

View solution in original post

0 Kudos
3 Replies
AnthonyRyanEQL
Occasional Contributor III

Randall,

Is the Meter & Flow Value part of the same template? In the electricity distribution company I work for, we have many templates in the ArcGIS Pro project file that have features within containment & attached to other features within the same template (eg. substation attached to a pole and that substation contains a transformer, etc). When the template is used, those features have the associations in place.

0 Kudos
MikeMillerGIS
Esri Frequent Contributor

You will need to use a preset template

- Place the Meter and Flow valve and create the association

- Select the features

- Click Move on the Editor Toolbar, a yellow circle will appear in the middle of the two features

- Hold Control Key and hover the yellow circle, click and drag this to the flow valve

- Open Manage Templates

- Go to Flow Valve and generate a new preset template



This will use the flow valve as the insert point and the snapping.  You can use the point and rotate tool to place the feature and rotate it.

I would like to see group templates support Junction to Junction associations, so please log the enhancement.

0 Kudos
by Anonymous User
Not applicable

Thanks Mike!  That will get us what we need in the interim, but I will submit an enhancement request for junction to junction associations. Hope all is well!
