ArcGIS Pro 2.5: How to allow snaping between edges of different groups\types without the need to have junctions?

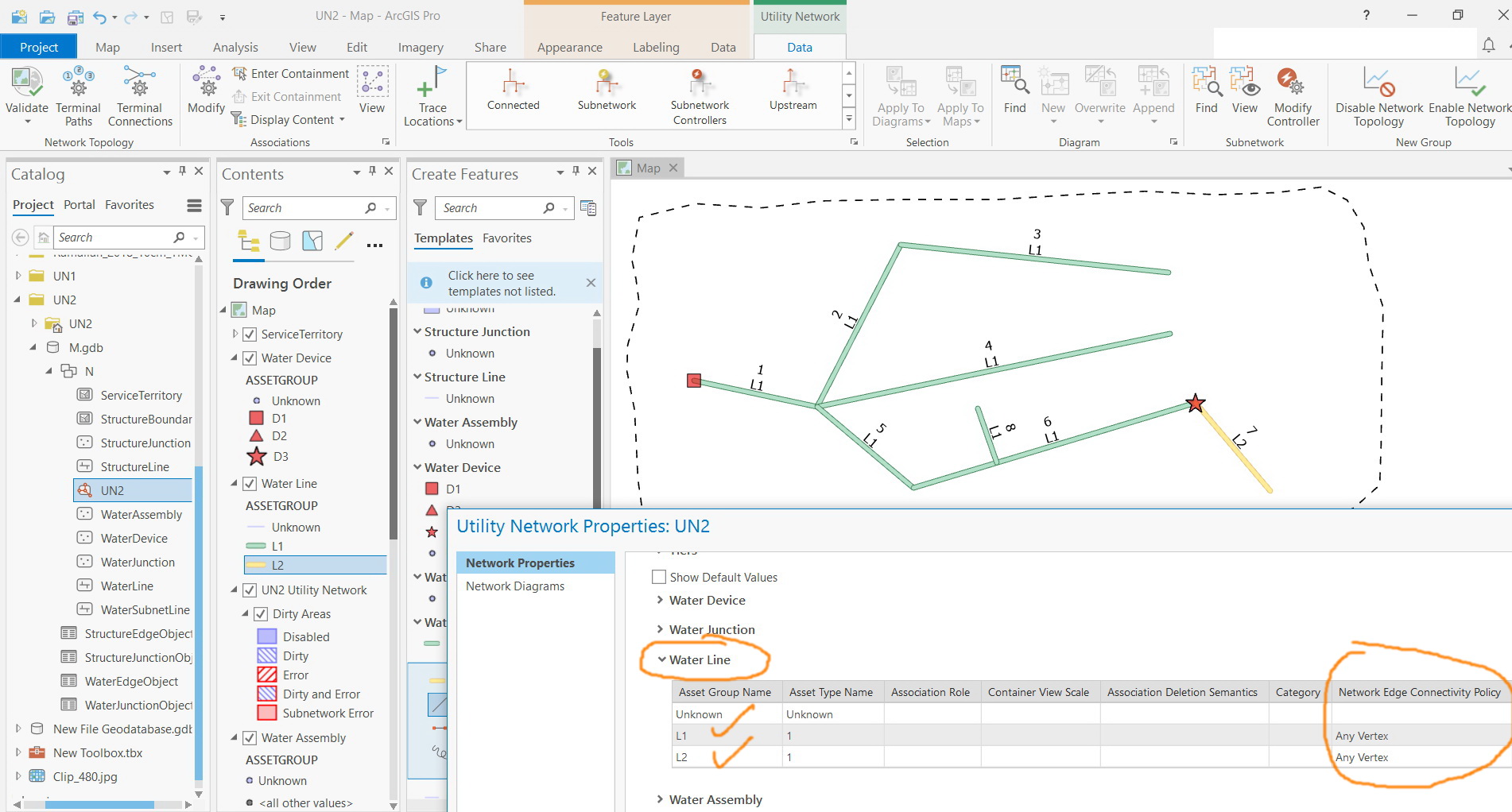

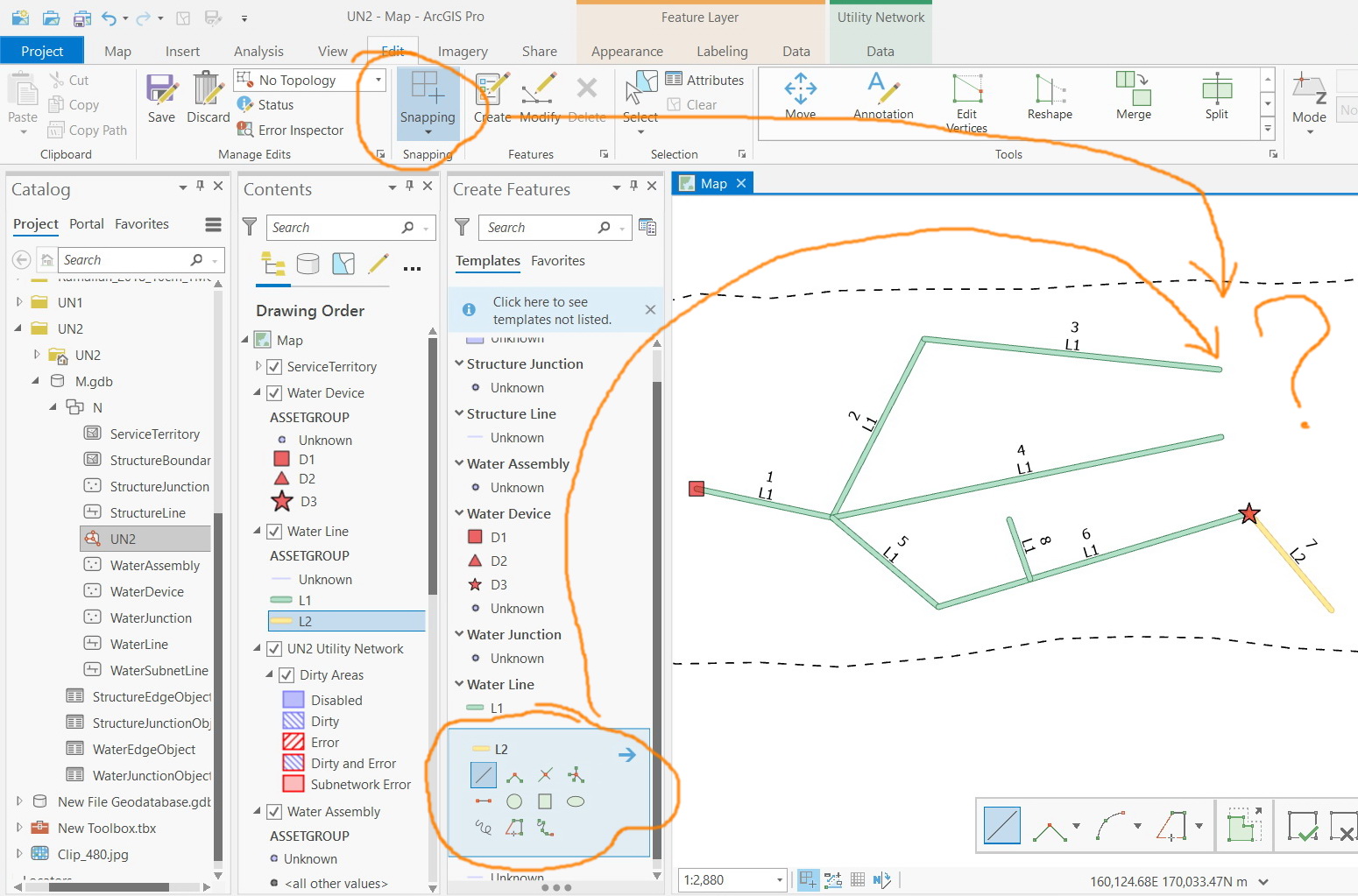

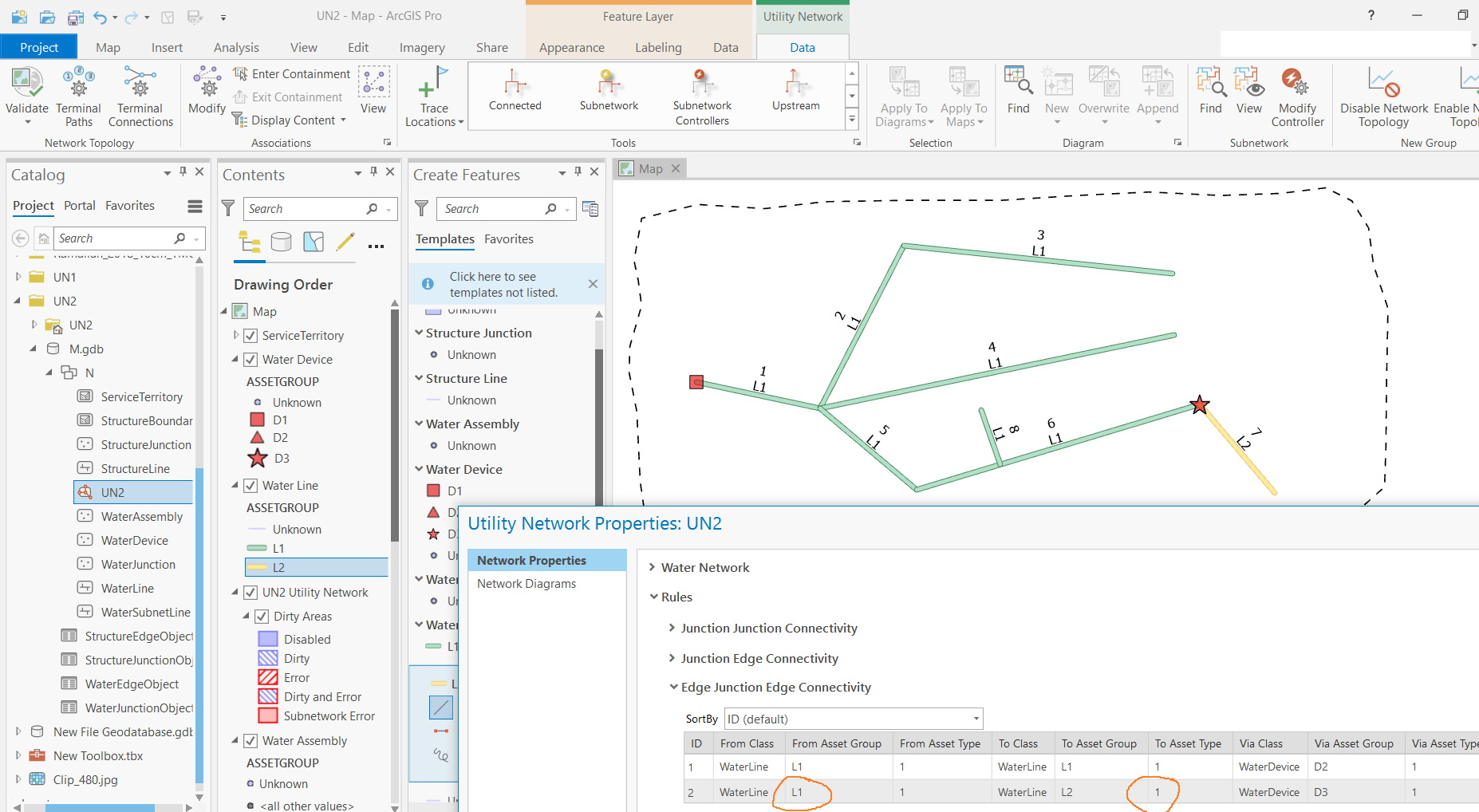

For example, in the screenshot below, L2 is not snapped to L1 despite the fact that a rule is defined between them in addition to the fact that the “network edge connectivity policy” is set as “any vertex” for both L1 and L2



Is there still a configuration that allows snaping between edges of different groups\types without the need to have junctions?

----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
