Adding Survey123 Connect Form to Experience Builder to Edit Existing Record - Error

LJackson29

Hi -

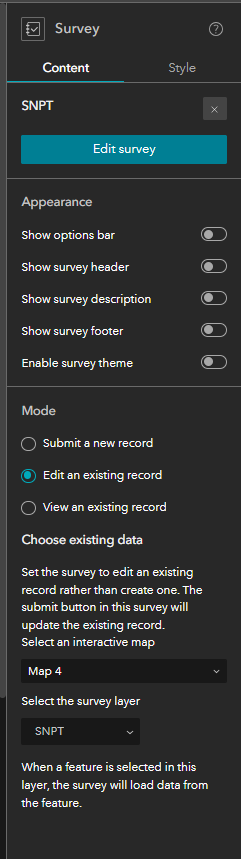

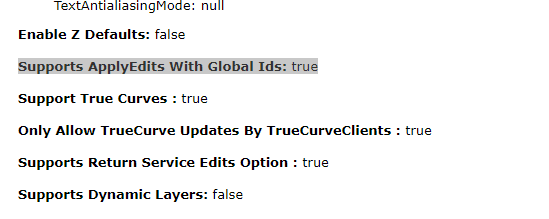

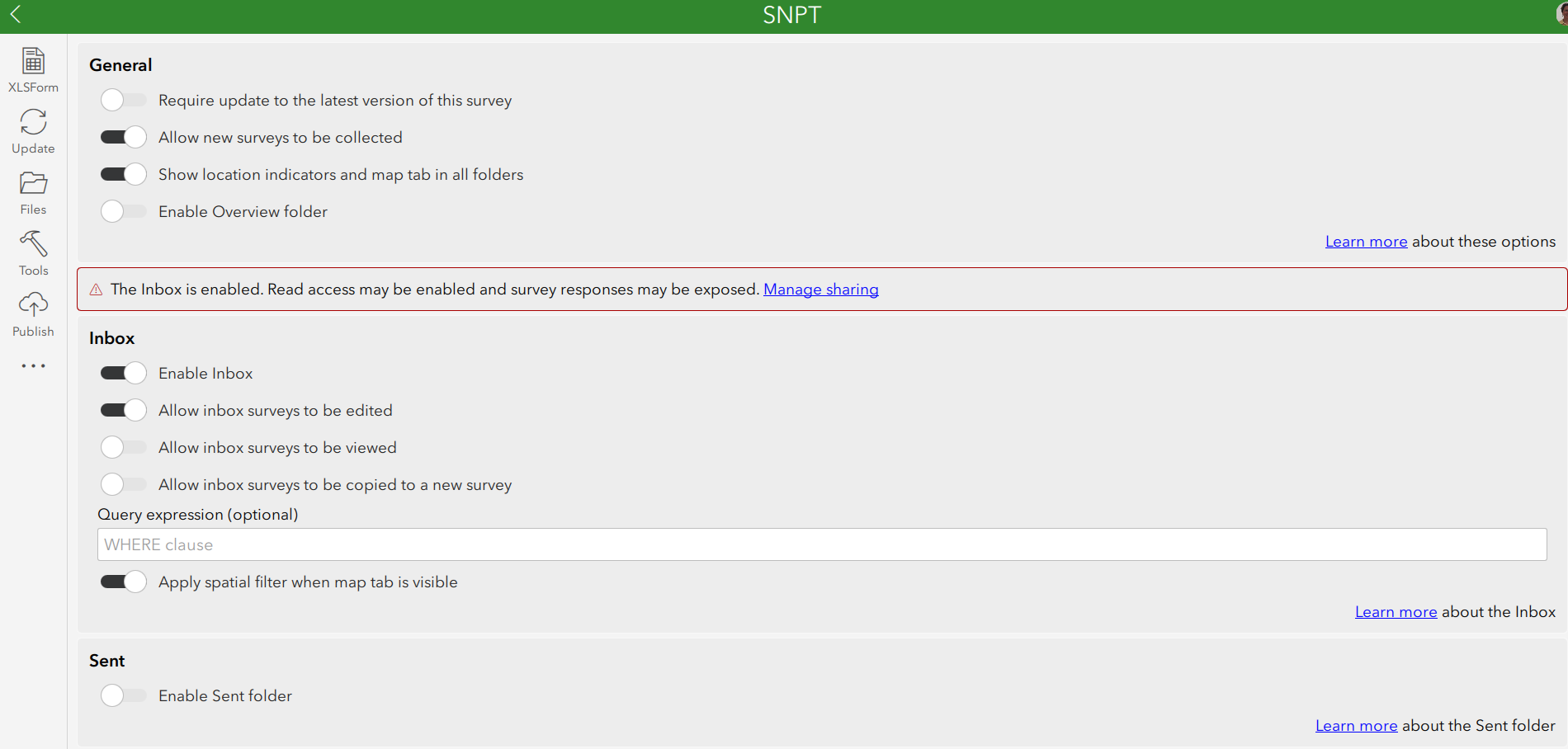

I am trying to add a Survey123 Connect Form to an Experience Builder app to Edit Existing Records, but am getting this error: "Editing is not possible because the globalId parameter was not provided". Can anyone tell me what I am doing wrong? The form is built off an existing feature service with a related layer/repeat. Supports ApplyEdits with Global Ids is turned on in the service. Below are my settings in Survey123 Connect and Experience Builder.

Thanks!

Find more posts tagged with

Accepted answers

LJackson29

Thanks everyone for their input. I figured out the issue. I had to add the GUID field to my repeat and then everything worked.

All comments

LJackson29

Thanks everyone for their input. I figured out the issue. I had to add the GUID field to my repeat and then everything worked.

LJackson29

Thanks @DougBrowning. I added the above to it to the XLS Form, and republished, but unfortunately, that did not fix the error.

dougbrowning

Yes add this in connect.

LJackson29

@DougBrowning Thanks for your response. There is nothing in the bind::esri:parameters column for the repeat. Can I add this in within Survey123 Connect or should it have been added when I created the form from the feature service? If I can add it within Survey123 what should it be exactly?

In regards to the global IDs, both layers have global ids enabled, and the repeat layer has a GUID with the relationship between the main layer GlobalID and Repeat GUID fields. This is how we have setup other survey123 forms from feature services with related layers.

LJackson29

@EliasRex I do have a map in my experience builder, and have tried selecting a feature and it does not populate the Survey123 form - sorry for leaving that out before.

dougbrowning

On the begin repeat line do you have query allowUpdates=true in the column bind::esri:parameters?

In the service are globalids on both layers? You may also have to have a field in the repeat called parentglobalid - I am not sure if it can use a different name. That is what 123 is using to relate t

EliasRex

Hi, do you have a map in your experience builder? and have you tried selecting a record on the map? It could be that the survey edit widget is waiting to receive the global Id from a selected record.
