Drawing Frustums in Scene in Pro

515
1
06-19-2019 01:16 PM
VedantBajaj
Esri Contributor

Is there any way to create a 3D Frustum (similar to a Polygon Geometry in 2D) in Pro from a Mesh JSON.

Eg

{"hasZ":true,"spatialReference":{"latestWkid":3857,"wkid":102100},"vertexAttributes":{"position":[-13046305.747554563,4036513.961925541,2.271428552327948,-13046308.475389563,4036513.3601753656,2.271428552327948,-13046308.475389563,4036513.3601753656,0.7285714476720521,-13046305.747554563,4036513.961925541,0.7285714476720521,-13046287.22455069,4036495.551872659,10.07142835919942,-13046317.533828478,4036488.865759594,10.07142835919942,-13046317.533828478,4036488.865759594,-7.071428359199423,-13046287.22455069,4036495.551872659,-7.071428359199423]}}

Tags (2)
0 Kudos
1 Reply
jauhari_mani
Regular Contributor

Hi @VedantBajaj ,

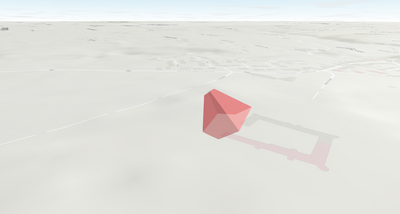

I'm curious if you were able to find a solution to the issue you were facing. Additionally, I'm interested in achieving a similar outcome using the ArcGIS JS SDK, as shown in the image I provided. Do you happen to have any resources or examples on how this can be accomplished with the JS SDK?
