Labeling Changes Color Without Prompting

Katherine_Rudzki

Hello - I've run into something weird. When adding a Callout line, some text turns bright red. Is this a new way to show an issue with placement? I'm ultimately fine with where the labels end up for the most part, but I'd like the text to remain the same color.

I have one label Class for the map, so it's not an issue with conflicting classes.

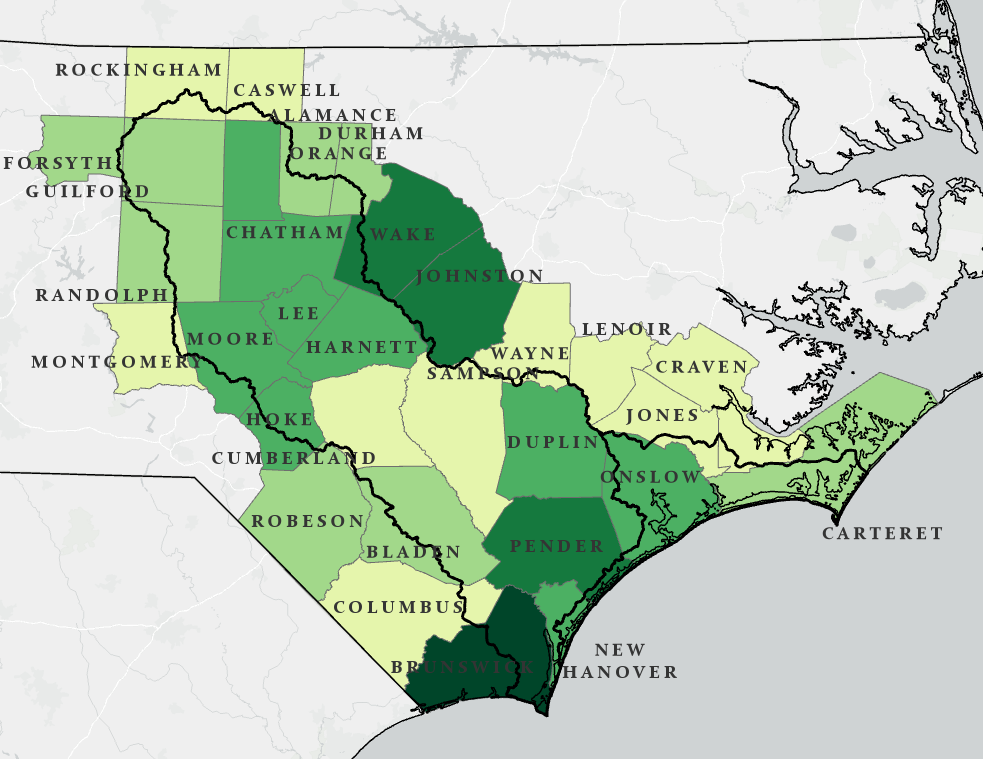

No Callout:

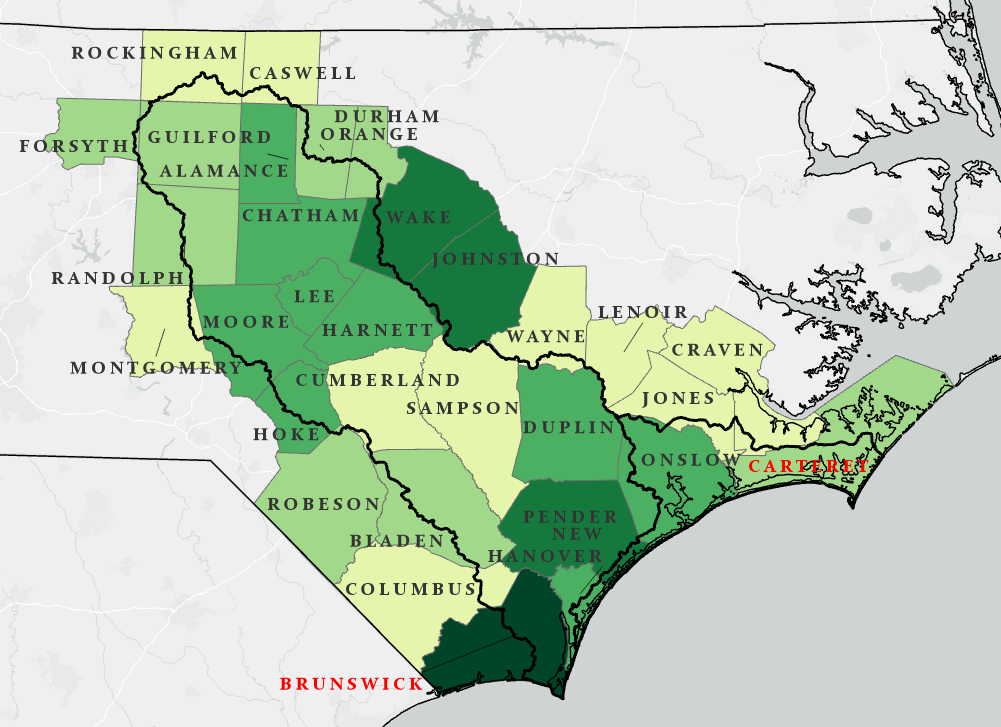

Adding Callouts:

Find more posts tagged with

Accepted answers

Robert_LeClair

Bright red label text in ArcGIS Pro is typically an indicator that the label is unplaced (it can’t find a valid position based on your placement/conflict rules), not a “normal” symbol color. Callouts/leaders can make this show up more because they add additional placement constraints.

Here are some steps you can try to keep the text the intended color (by getting the labels to place normally):

Allow overlaps so labels don’t become unplaced
- Open Label Class pane > Conflict resolution tab
- Under Unplaced labels, enable Never remove (place overlapping)
  (This forces placement rather than leaving labels unplaced.)
Loosen fitting rules so labels can be placed
- Label Class pane > Fitting strategy tab
- Allow options like Reduce font size, Compress, and/or a bit more overrun (depending on geometry type)
Relax placement restrictions
- Label Class pane > Position tab
- Broaden the allowed positions (more candidate placements usually resolves “unplaced” labels)

All comments

Robert_LeClair

I'm glad it worked out! All the best!

Katherine_Rudzki

Thank you! The Place Overlapping was able to solve the conflict.

Robert_LeClair

Here are some steps you can try to keep the text the intended color (by getting the labels to place normally):

Allow overlaps so labels don’t become unplaced
- Open Label Class pane > Conflict resolution tab
- Under Unplaced labels, enable Never remove (place overlapping)
  (This forces placement rather than leaving labels unplaced.)
Loosen fitting rules so labels can be placed
- Label Class pane > Fitting strategy tab
- Allow options like Reduce font size, Compress, and/or a bit more overrun (depending on geometry type)
Relax placement restrictions
- Label Class pane > Position tab
- Broaden the allowed positions (more candidate placements usually resolves “unplaced” labels)
