Are these circles attached to the vertices a setting?

519
3
Jump to solution
03-15-2024 10:42 AM
Labels (1)
SeanT
by
Occasional Contributor

I've never encountered them, and would like to learn about them in case they are causing a problem with a feature I'm having.




0 Kudos
1 Solution

Accepted Solutions
ZachBodenner
MVP Regular Contributor

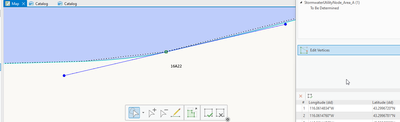

You're referring to the blue circles attached to blue lines? Those are handles for adjusting the curvature of the arc. They appear when one of the line segments on either side of the selected vertex is an arc as opposed to a simple line segment.

Happy mapping,
- Zach

View solution in original post

0 Kudos
3 Replies
ZachBodenner
MVP Regular Contributor

You're referring to the blue circles attached to blue lines? Those are handles for adjusting the curvature of the arc. They appear when one of the line segments on either side of the selected vertex is an arc as opposed to a simple line segment.

Happy mapping,
- Zach
0 Kudos
SeanT
by
Occasional Contributor

Thank you so much, I'd never had to draw an arc before I guess... also couldn't find a good search term to answer the question myself.
