ArcGIS Pro: How “Define classes of features and label each class differently” labeling is managed in Pro?

JamalNUMAN

I couldn’t figure out if the “Define classes of features and label each class differently” option has equivalency in Pro.

How this can be managed in Pro?

Find more posts tagged with

Accepted answers

Anonymous User

Hi Jamal,

Did you try using "Create Label Classes from symbology" option?

Cheers,

Rawan

All comments

JamalNUMAN

Many thanks guys for the help. It works fine with me.

KoryKramer

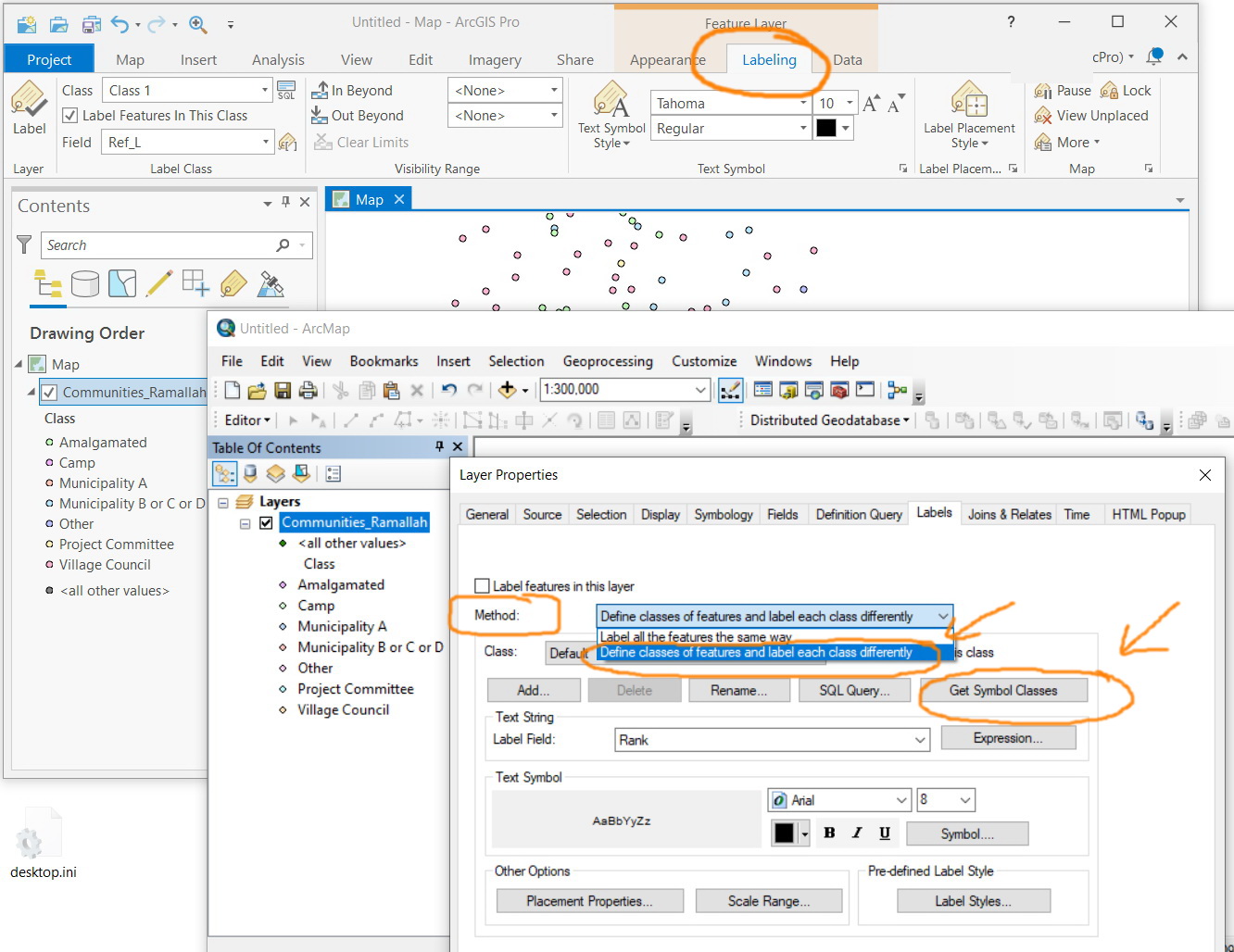

Based on the screenshot in the original question:

This was an equivalency issue delivered in Pro 2.3. See https://community.esri.com/community/arcgis-ideas/blog/2019/01/17/ideas-in-arcgis-pro-23 at 0:26 in the video.

MarcoBoeringa

That is actually a slightly different option and new in Pro. It creates separate label classes automatically based on symbol classes.

This, however, is not the same option as Jamal NUMAN‌ pointed out. In ArcMap, the “Define classes of features and label each class differently” is just a generic option to create multiple label classes with e.g. distinct SQL Queries to select certain features to label, it isn't tied to the symbol classes perse (although you could manually set it up to replicate the symbol classes).

To access the same functionality in ArcGIS Pro, open the Label Class pane from the ribbon, and access the menu option to create/rename or delete label classes, see screenshot.

Anonymous User

Hi Jamal,

Did you try using "Create Label Classes from symbology" option?

Cheers,

Rawan

JamalNUMAN

I didn’t get your point, Dan. This issue is addressed to check if the “Define classes of features and label each class differently” option has an equivalent property in Pro

DanPatterson_Retired

Did you activate the layout as suggested in your other open thread?
