ArcGIS Pro 3.0.2: The ArcGIS Pro catalogue fails to detect the Revit file of *.rte format,

4987
11
Jump to solution
07-22-2023 03:24 AM
JamalNUMAN
Legendary Contributor



ArcGIS Pro 3.0.2: The ArcGIS Pro catalogue fails to detect the Revit file of *.rte format,

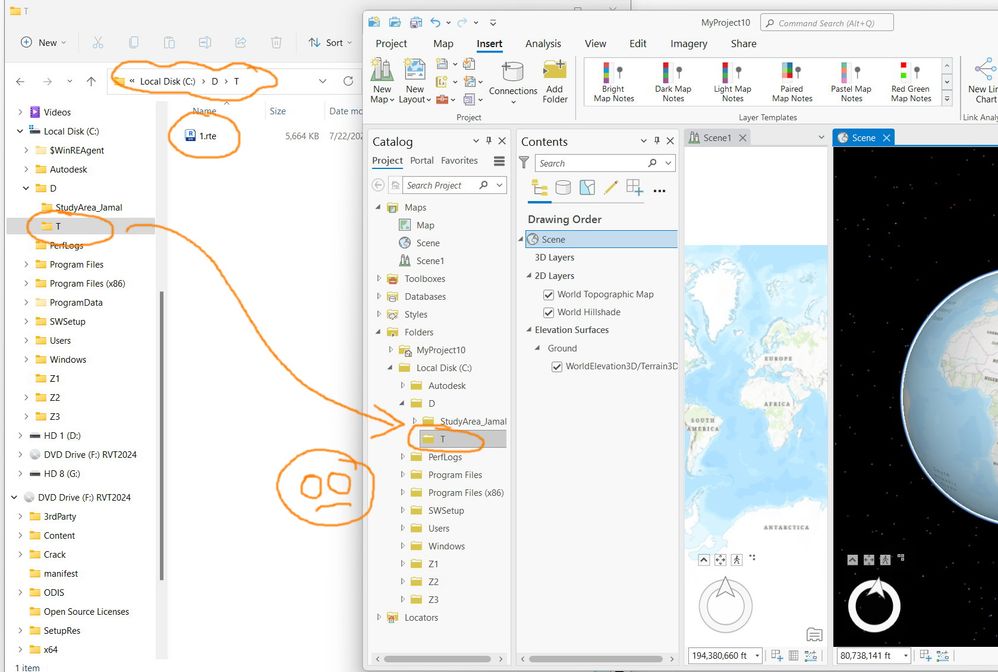

I couldn’t figure out how the Revit file of *.rte format can be inserted to Pro. It appears that the catalogue of The ArcGIS Pro is not able to recognize this format.



What could be the issue here?






----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
2 Solutions

Accepted Solutions
DanPatterson
MVP Esteemed Contributor

isn't *.rte a template and you need to save it as a *.rvt (eg., a project).


... sort of retired...

View solution in original post

DanPatterson
MVP Esteemed Contributor

You really need to check the help files for your version of Pro

Pro 3.0.x only supports ... Revit file versions 2016–2022

What is BIM data—ArcGIS Pro | Documentation

so you need to upgrade Pro since it came out in 2022, hence couldn't possibly support revit 2023 😉


... sort of retired...

View solution in original post

11 Replies
DanPatterson
MVP Esteemed Contributor

isn't *.rte a template and you need to save it as a *.rvt (eg., a project).


... sort of retired...
JamalNUMAN
Legendary Contributor

The rvt file fails to be inserted and ends up with “unsupported BIM file” error.



What could be the issue?




----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
BarryNorthey
Frequent Contributor

The Help indicates that version dependence might be the problem and explain the error message:

ArcGIS Pro supports Revit file versions 2018–2023. . . . Attempting to use unsupported BIM file versions will invoke the error message: Unsupported BIM file.

https://pro.arcgis.com/en/pro-app/latest/help/data/revit/what-is-bim-data-.htm#ESRI_SECTION1_414424A...

JamalNUMAN
Legendary Contributor

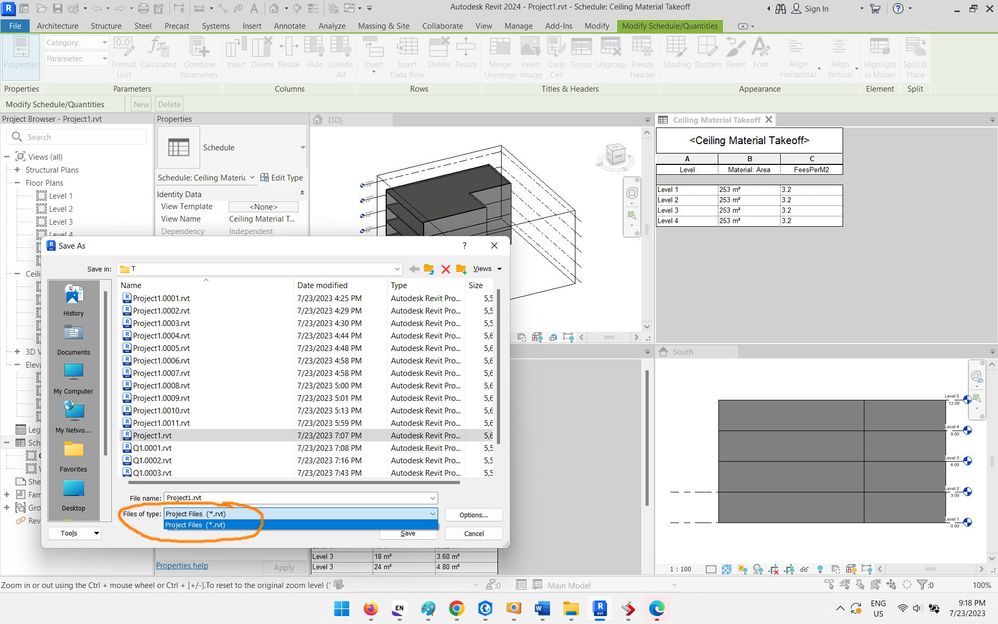

The Revit 2024 is not supported in ArcGIS Pro while there is no way to downgrade the Revit 2024 to lower version.



How to resolve this dilemma?






----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
DanPatterson
MVP Esteemed Contributor

Can the source software not save to a previous version?


... sort of retired...
MiguelParedes
Esri Contributor

Greetings @JamalNUMAN

You should be able to convert the file to an earlier version (2018 to 2023) as described in the following article:

How to save an AutoCAD drawing to a previous or older file format



Hope that helps 🙂

Miguel
JamalNUMAN
Legendary Contributor

ArcGIS 3.0.2 appears to fail to support the Revit 2023 as per the screenshot below



What could be the issue here?




----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
DanPatterson
MVP Esteemed Contributor

You really need to check the help files for your version of Pro

Pro 3.0.x only supports ... Revit file versions 2016–2022

What is BIM data—ArcGIS Pro | Documentation

so you need to upgrade Pro since it came out in 2022, hence couldn't possibly support revit 2023 😉


... sort of retired...
JamalNUMAN
Legendary Contributor

Pro 3.0.2 works fine with Revit 2022




----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
