ArcGIS Pro 2.9: How to plot xy by clicking on the map?

2884
9
01-06-2022 01:45 PM
JamalNUMAN
Legendary Contributor

ArcGIS Pro 2.9: How to plot xy by clicking on the map?



I couldn’t figure out if there is a tool by which one can plot xy by clicking on the map




----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
9 Replies
jcarlson
MVP Esteemed Contributor

It's not in the ribbon or in the templates, but when you are digitizing a point (or any sketch operation, really), you can right-click and select Absolute X,Y,Z, then enter the coordinates. If you're using a simple point construction template, this will automatically place a point at the entered coordinates.

- Josh Carlson
Kendall County GIS
JamalNUMAN
Legendary Contributor

I’m not digitizing here. All what I wanted is just to click on the map to plot the xy coordinate. Is this still doable with the capacity of Pro?




----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
AdminGIS2
Occasional Contributor

A few more I can think of:

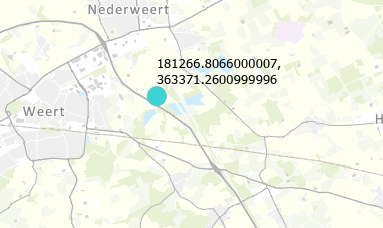

- Create a temporary feature class, create an arcade expression to label XY (actually labels it, also works in layouts)

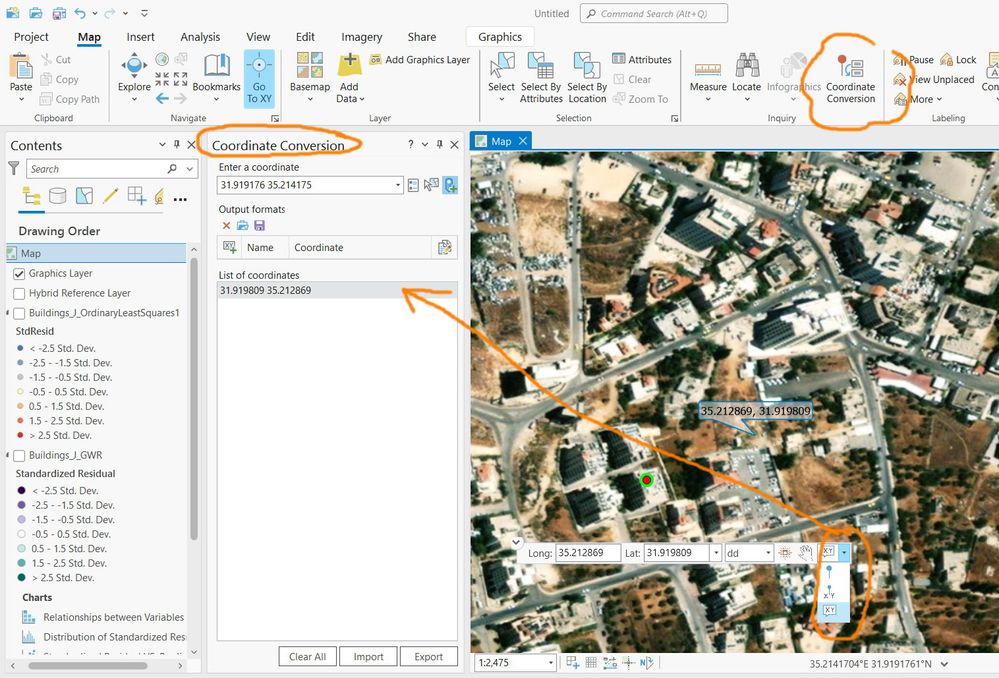

- Use the coordinate conversion tool (lists coordinates for a bunch of points you can create, export if you need)




0 Kudos
SarahHartholt
Frequent Contributor

Hi Jamal,

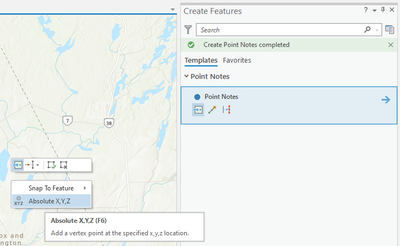

You can add a point map note layer from the insert tab, then click on the edit tab and open the create features pane. From there you can select the Point Notes template, right click on the map and chose Absolute X,Y,Z to add your coordinates or add a Point Note anywhere on your map, select the point (using the Edit Vertices or Move tool), right click the map note and choose Move To to insert your desired x, y coordinates.







JamalNUMAN
Legendary Contributor



Thank you for the input.

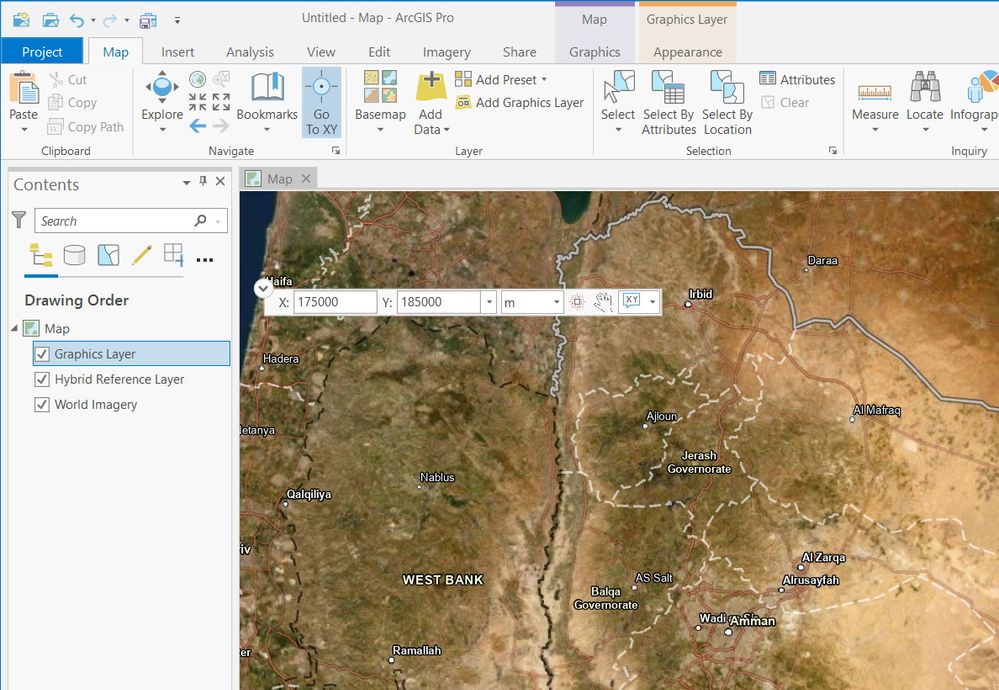

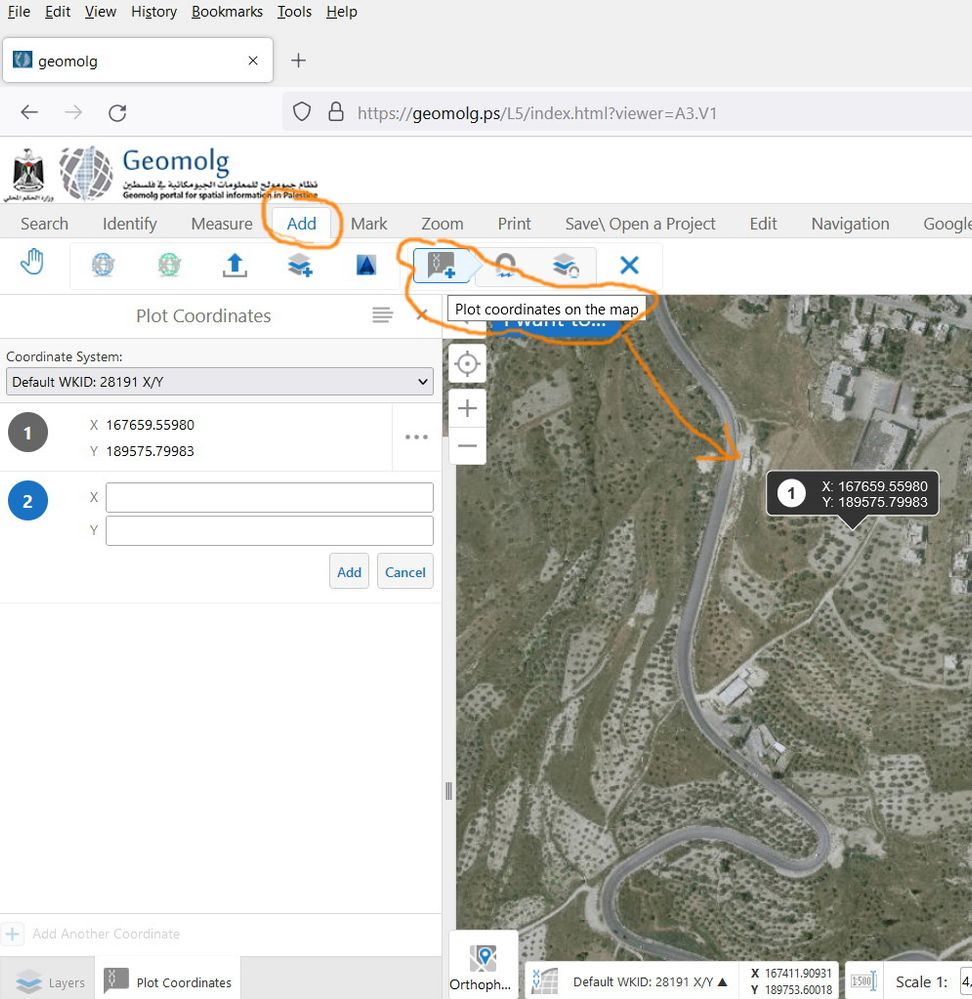

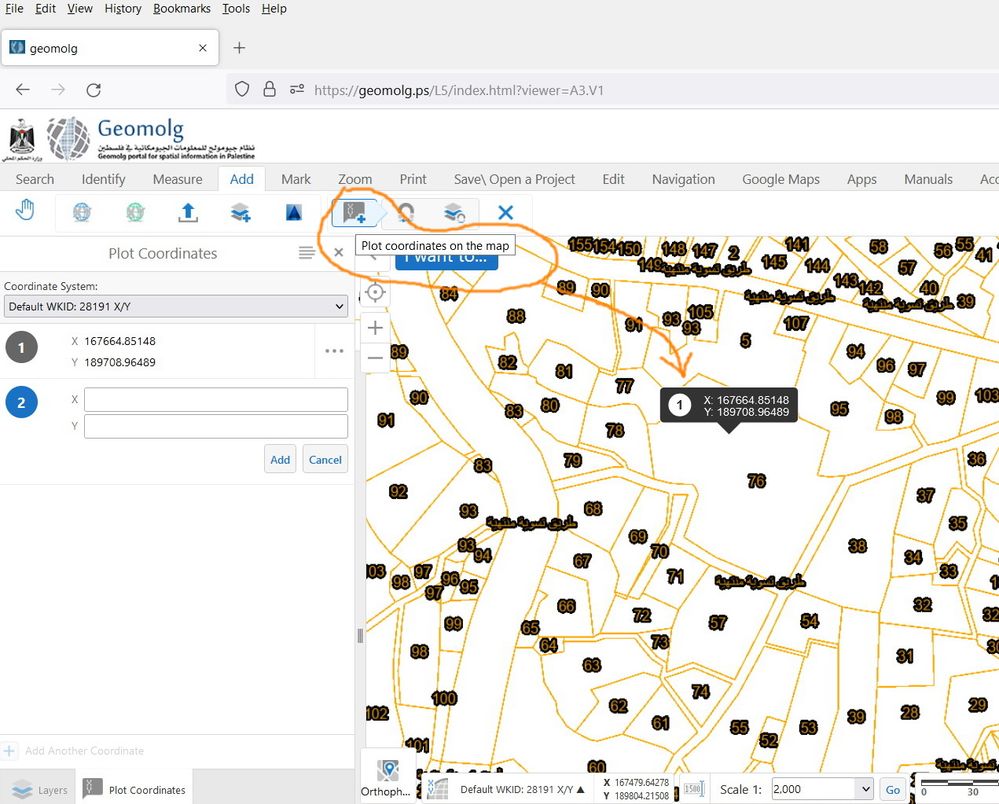

Not sure why there is no more decent tool such that one can click on the map and get the xy plotted as per the screenshot below




----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
SarahHartholt
Frequent Contributor

I agree to some extent. In ArcGIS desktop you could use the drawing toolbar to quickly add a marker, then double click on the marker and move it to a specified x,y location in the Size and Position dialog box. Less clicks for sure.

JamalNUMAN
Legendary Contributor

Is this avialable in Pro?

----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
JamalNUMAN
Legendary Contributor

I've posted it as an idea

https://community.esri.com/t5/arcgis-pro-ideas/arcgis-pro-2-9-having-a-tool-to-plot-xy-by/idi-p/1131...

----------------------------------------
Jamal Numan
Geomolg Geoportal for Spatial Information
Ramallah, West Bank, Palestine
0 Kudos
JamalNUMAN
Legendary Contributor

This is not implemented in 3.0.2




----------------------------------------
