ArcGIS Pro 2.5: How to label features based on two fields with each label on a separate line?

JamalNUMAN

ArcGIS Pro 2.5: How to label features based on two fields?

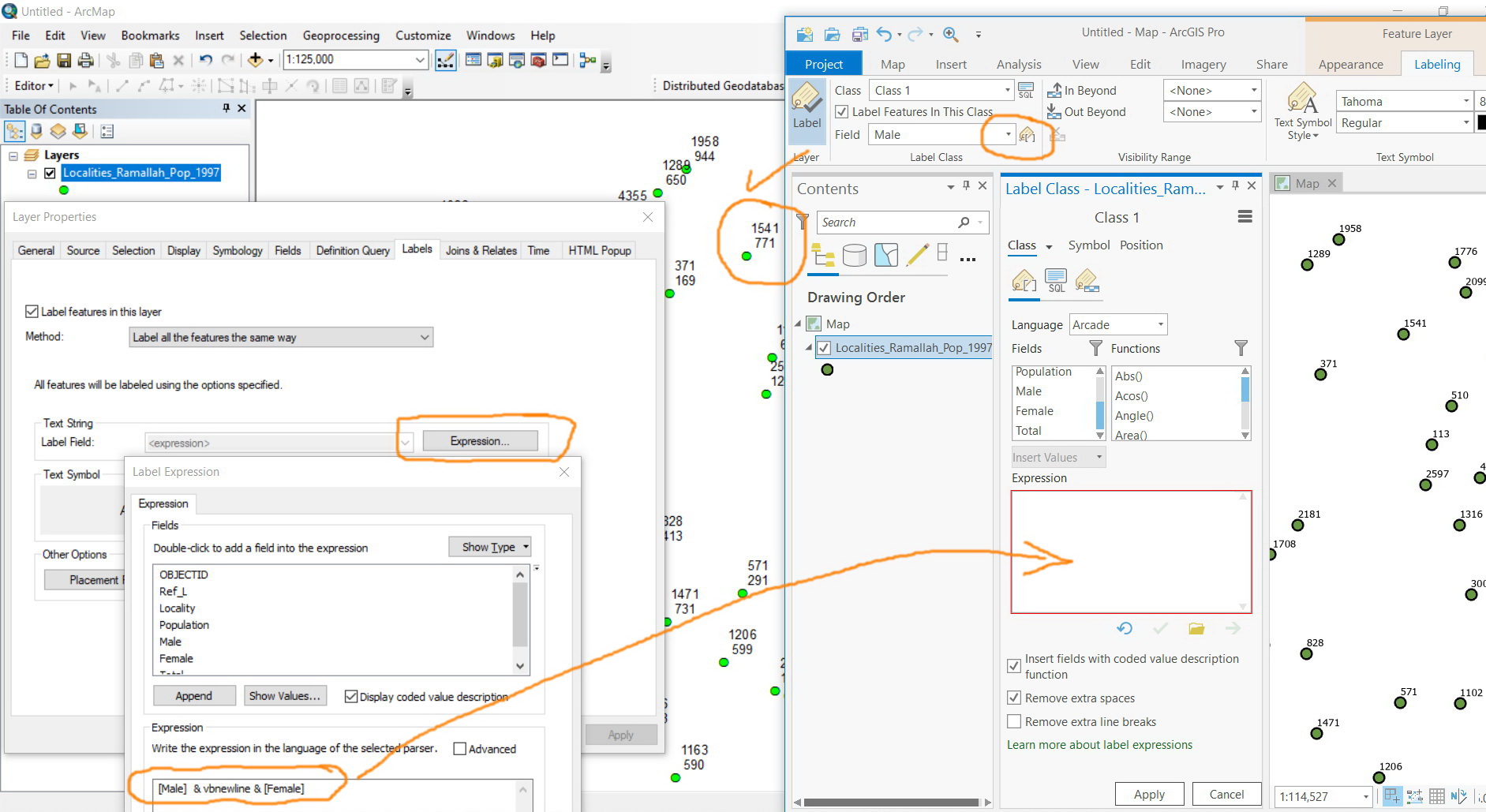

For example, in ArcMap features can be labeled based on two fields such that labels can aligned vertically by using the expression below:

[Male] & vbnewline & [Female]

How this can be performed in Pro?

Find more posts tagged with

Accepted answers

AhmadSALEH1

Honestly, I was mixing the Labels expressions with Field calculator operations!

in the Field calculator, there is no VBScript option anymore! but in the label expressions, it's still there and you can use it as the following.

<SPAN class="string token">"Area A: "</SPAN><SPAN class="operator token">&</SPAN> <SPAN class="punctuation token">[</SPAN>Area_A<SPAN class="punctuation token">]</SPAN> <SPAN class="operator token">&</SPAN> vbnewline <SPAN class="operator token">&</SPAN> <SPAN class="string token">"Area B: "</SPAN><SPAN class="operator token">&</SPAN><SPAN class="punctuation token">[</SPAN>Area_B<SPAN class="punctuation token">]</SPAN> <SPAN class="operator token">&</SPAN> vbnewline <SPAN class="operator token">&</SPAN> <SPAN class="string token">"Area C:"</SPAN><SPAN class="operator token">&</SPAN> <SPAN class="punctuation token">[</SPAN>Area_C<SPAN class="punctuation token">]</SPAN>
<SPAN class="line-numbers-rows"><SPAN>‍</SPAN></SPAN>

If you decided to use python here is how you can do it, but again I was under the assumption that the label expressions behave exactly as the field calculator; this is why I suggested using "!" instead of [] which was wrong.

here is the correct way to do it:

<SPAN class="keyword token">def</SPAN> FindLabel <SPAN class="punctuation token">(</SPAN> <SPAN class="punctuation token">[</SPAN>Area_A<SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="punctuation token">[</SPAN>Area_B<SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="punctuation token">[</SPAN>Area_C<SPAN class="punctuation token">]</SPAN> <SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">:</SPAN>
    mylabel<SPAN class="operator token">=</SPAN><SPAN class="string token">"Area A:"</SPAN><SPAN class="operator token">+</SPAN><SPAN class="punctuation token">[</SPAN>Area_A<SPAN class="punctuation token">]</SPAN><SPAN class="operator token">+</SPAN><SPAN class="string token">"\n"</SPAN> <SPAN class="operator token">+</SPAN><SPAN class="string token">"Area B: "</SPAN><SPAN class="operator token">+</SPAN><SPAN class="punctuation token">[</SPAN>Area_B<SPAN class="punctuation token">]</SPAN><SPAN class="operator token">+</SPAN><SPAN class="string token">"\n"</SPAN><SPAN class="operator token">+</SPAN><SPAN class="string token">"Area C: "</SPAN><SPAN class="operator token">+</SPAN><SPAN class="punctuation token">[</SPAN>Area_C<SPAN class="punctuation token">]</SPAN>
    <SPAN class="keyword token">return</SPAN> mylabel<SPAN class="line-numbers-rows"><SPAN>‍</SPAN><SPAN>‍</SPAN><SPAN>‍</SPAN></SPAN>

Or a more concise method by using .format to concatenate the string as Dan mentioned in his post

<SPAN class="keyword token">def</SPAN> FindLabel <SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">[</SPAN>Area_A<SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="punctuation token">[</SPAN>Area_B<SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="punctuation token">[</SPAN>Area_C<SPAN class="punctuation token">]</SPAN> <SPAN class="punctuation token">)</SPAN><SPAN class="punctuation token">:</SPAN>
    <SPAN class="keyword token">return</SPAN> <SPAN class="string token">"Area A:{}\n Area B:{}\n Area C:{}"</SPAN><SPAN class="punctuation token">.</SPAN>format<SPAN class="punctuation token">(</SPAN><SPAN class="punctuation token">[</SPAN>Area_A<SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="punctuation token">[</SPAN>Area_B<SPAN class="punctuation token">]</SPAN><SPAN class="punctuation token">,</SPAN> <SPAN class="punctuation token">[</SPAN>Area_C<SPAN class="punctuation token">]</SPAN> <SPAN class="punctuation token">)</SPAN><SPAN class="line-numbers-rows"><SPAN>‍</SPAN><SPAN>‍</SPAN></SPAN>

All comments

JamalNUMAN

Example:

Text($feature.Density, '#.###') + TextFormatting.NewLine + $feature.EACode

JamalNUMAN

With the vbscript language option, the Pro does take the table number formats to the label as it is used to work in ArcMap.

KoryKramer

Jamal NUMAN‌ please remember to close out your question by marking what you think is the best answer as Correct. (This goes for any of open questions...) This will help other community members find solutions more quickly. Thanks!

HamedFarzin

Resources for labels in ArcGIS Pro:

Specify text for labels—ArcGIS Pro | Documentation

JamalNUMAN

Thanks Dan.

The code is below:

[Male] + "\n" + [Female]

DanPatterson_Retired

"{},\n{}" plus the rest

\n is the newline in python

JamalNUMAN

Thanks Dan.

But what is the code that lets the labels appear vertically instead of horizontally?

def FindLabel ( [Male], [Female]):


    return "{}, {}".format ( [Male], [Female])

DanPatterson_Retired

check on the advanced checkbox
