AcGIS Pro 2.8.2: The label of a polygon appears in other polygons despite the level of zoom,

JamalNUMAN

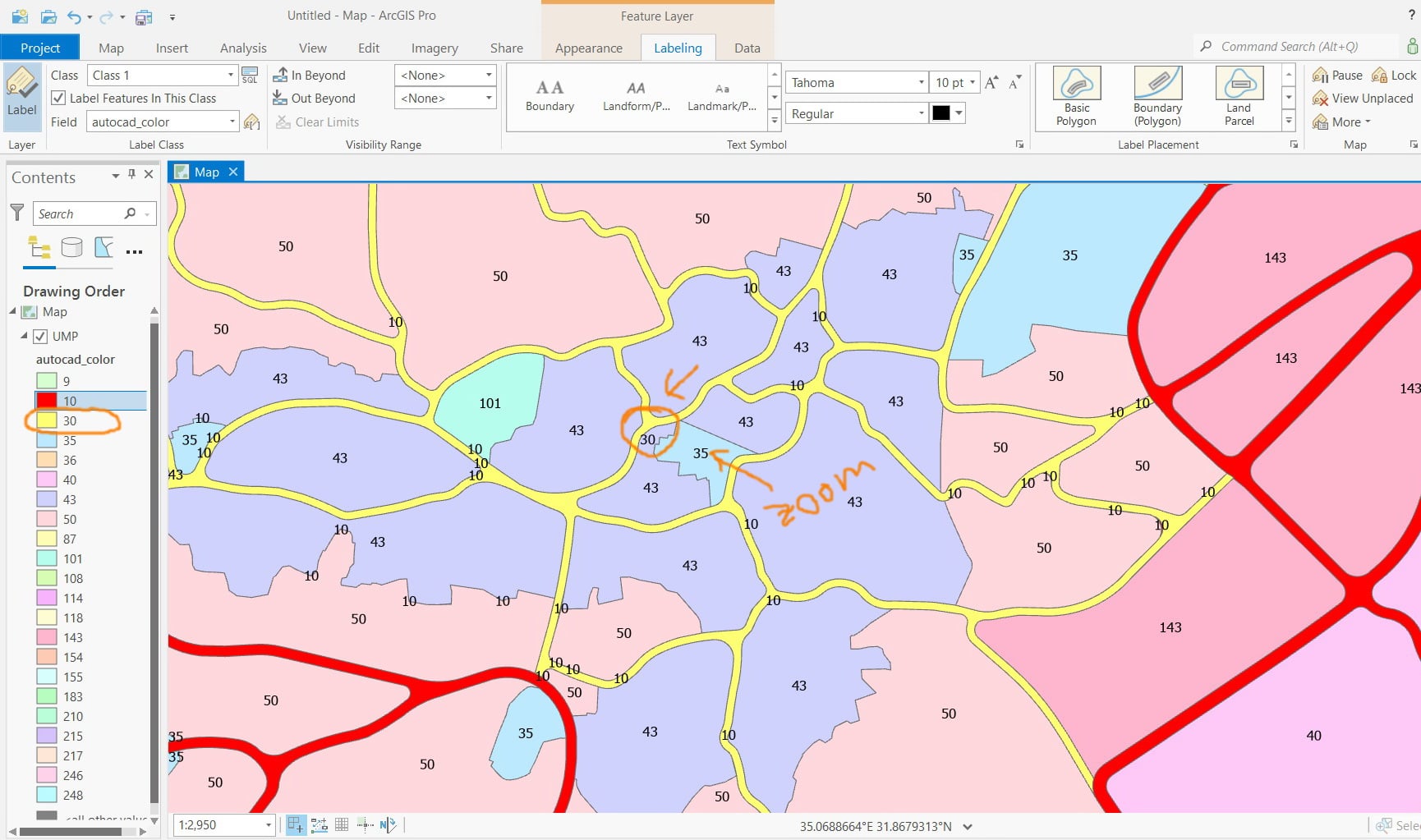

In the screenshot below, I couldn’t figure out why label 30 still appears in all other polygons despite the level of zoom. In return, label 10 performs correctly.

What could be the issue here?

The data is attached

UMP.gdb.zip


Find more posts tagged with

Accepted answers

All comments

DanPatterson

Are you using the Maplex labelling engine ? (which you should be)

and if so, what labelling properties did you specify?

Label with the Maplex Label Engine—ArcGIS Pro | Documentation

JamalNUMAN

This is the default labeling as the layer is added to Pro with no settings at all at any level.

The behavior in ArcMap is correct and as expected even if when the maplex is activated

Is this a bug?

JayantaPoddar

Try choosing a suitable Label Placement option.

JamalNUMAN

Hi Jayanta,

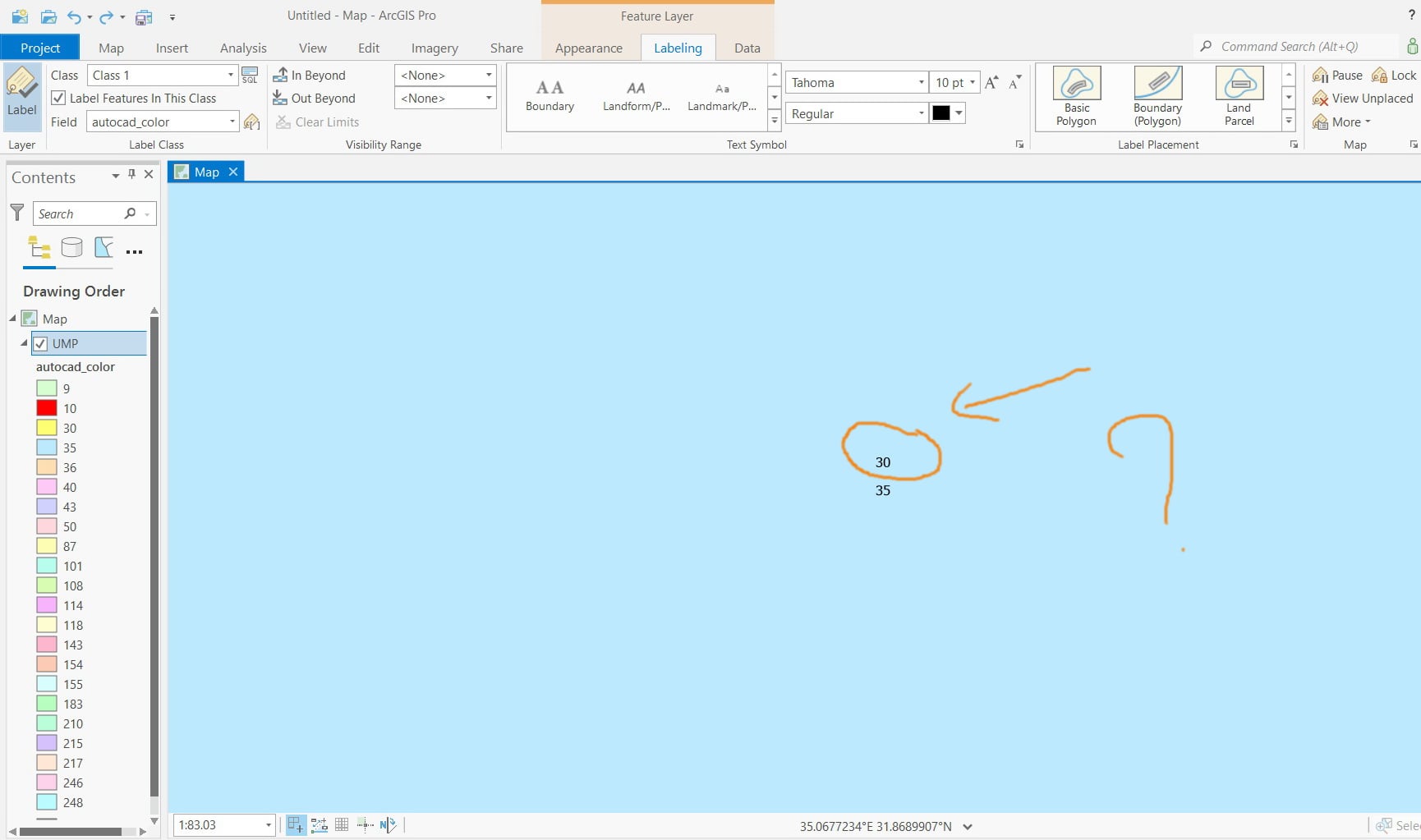

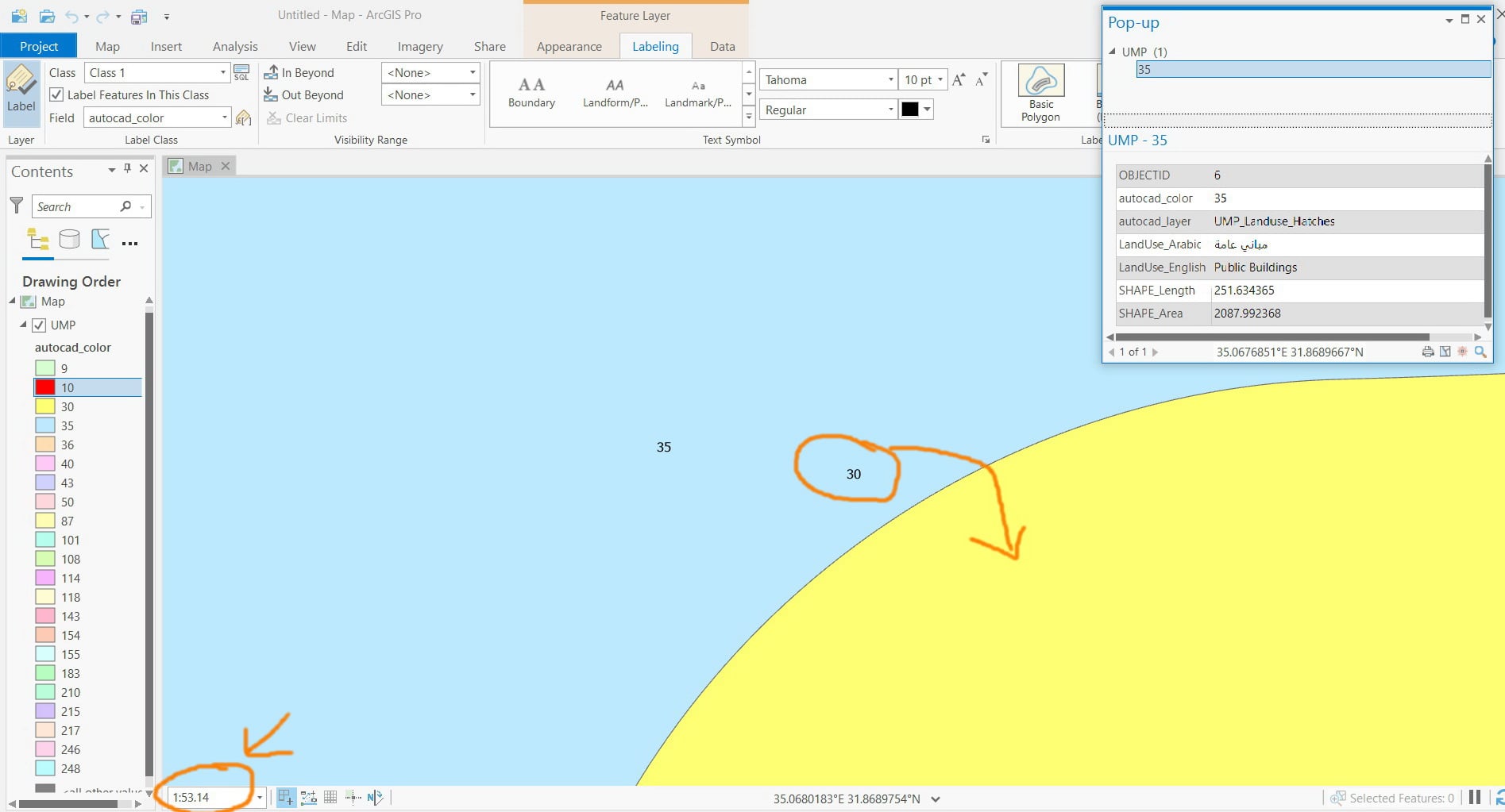

If you keep zooming, label 30 will appear in side the polygon.

I tried all the options but none of them worked for me?

Is this by design? Bug? Sort of settings?

DanPatterson

it is the "may place label outside polygons bounds" ... it doesn't say it "will place...."

JamalNUMAN

Unchecking “may place…” option doesn’t resolve the issue as per the screenshot below

DanPatterson

the polygons don't overlap do they?

If you tried it in Pro 2.9 and it is still the same, then

send your data to Tech Support for resolution

JayantaPoddar

On running Check Geometry, I could see a lot of self-intersecting polygons and short segments. This could be the reason the labels overrun to adjacent polygons.

Could you run Repair Geometry (on a copy of feature class), and check if the issues persist.

JamalNUMAN

But how it works as expected in ArcMap with no such issue?

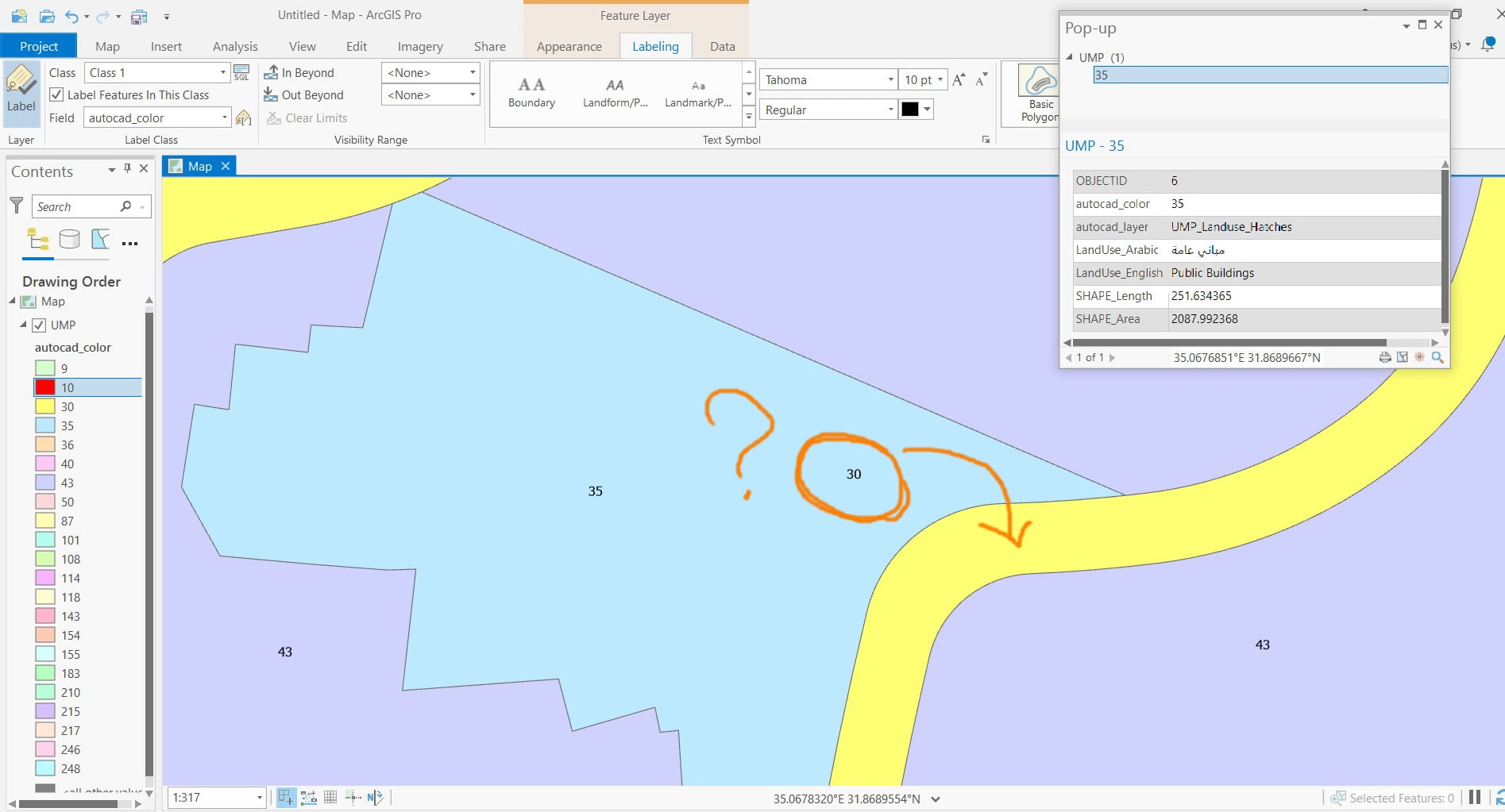

There is no overlap between polygon # 30 and #35 as per the screenshot below. And even if there is an overlap, the two labels should appear only at the area of overlap but not everywhere!

Jesse Wickizer

I confirmed with the provided dataset that after repairing geometry the label is placed correctly as long as the "Avoid holes in polygons" option is checked.

GeomolgPortal

But how come labels are placed correctly and as expected in ArcMap without the need to perform the “repair geometry” tool?
