Summary Statistics for Thematic Map Legend

232
7
06-11-2012 12:30 PM
Status: Open
Labels (1)
RichardMaaranen
New Contributor II
When you insert a thematic map legend into a map layout, you should have the option to include automatically additional column(s) that display select summary statistics for each map class such as: number of elements (geographic areas), proportion of elements, sum of elements, number of excluded elements.

I always have to get number of elements from under Symbiology -> Classify and then click on each class and look at the number displayed at the bottom of the screen. Then write the numbers down and calculate the proportions/percentages in another program like Excel. Then type them into my map layout with the text tool. Not very convenient.
Tags (1)
7 Comments
WilliamTrachtman
I second this...I thought it could already be done easily.  Now I owe my friend a dollar.
JohnNowlin

I want ArcMap to be able to display Layer/Feature statistics in the Table of Contents.

My original line of thinking leading me to this request was that I wanted to be able to show the dynamic count of features in a layer as a part of the layer label. Say I have a layer of points that is driven by a definition query from a dynamic dataset, such as recent earthquakes, or customers needing a service call. . . It would be great if I could get a count of these point events as a part of the layer name and/or the feature symbol label in the Table of Contents. This would be especially powerful if I was publishing the map to a web service and it was tied to a dynamic data source.

When I was goggling to see if this was an ArcMap capability I came across this post.

http://forums.esri.com/Thread.asp?c=93&f=993&t=188213


Now I agree with this poster, and I think this is an even better idea, instead of just counts, why not any of the statistics we could use to summarize data in the table view. This summary stats code is already wrtten and the functionality to display this data is written into the legend functions, so maybe these . . .

I would like to be able to label the layer name and/or the feature symbol with the feature statistics in the Table of Contents. An even better capability would be to have the ability to dynamically build the labels with static text concatenated to dynamic statistics.

So my layers could be like these examples:

___________

Table of Contents
---Earthquakes this week (count=120)
------>Magnitude 6 (count=5)
------Magnitude 4 to 6 (count=16)
------<Magnitude 4 (count=99)

OR

Table of Contents
---Open Service Calls (count=10)
------Appliance Repair Model A (count=3)
------Maintenance Model Q (count=6)
------Machine Repair Code 2 (count=1)
------Appliance Model 1 Installation (count=0)
_______________

An even better capability would be to have the selective ability to dynamically filter these counts by the area of the map falling within the display and/or within a user defined and drawn polygon and/or by selected features. . .

To be able to see the count, or average (or some other descriptive statistic) of features in the Table of Contents becomes very useful for comparing layers, or summarizing the layer without having to open any other screen and it translates from desktop-to-server-to-browser-to-mobile device as a functionally useful capabliity.

Best Regards,


John Nowlin
Systems Developer, National Service
Stiles Machinery, Inc.

DuncanHornby
Nice idea but I think the TOC would become "cluttered", especially if you have group layers.

I was wondering if these stats could be in another panel in the TOC? We are able to display by draw order, source, visibility and selection, maybe we could have a new panel for stats that can be for the whole dataset or filtered by the current extent?
MichaelVolz
I like Hornbydd's idea as this new feature in the existing TOC panel would clutter the TOC and that would make this an undesirable update even though you are getting more useful information.
FrankVeldhuis1
Feature count, great first step.

A simple sum of any field would be imense. Of course you couldn't have a number witout units like acres, gallons, etc. This would need to be configurable for the layer.

Other stats like average, medina, etc would be greatly helpful too.
DannyDong
I like the legend feature that easily shows the number of feature in the map extent for each feature type. It will be great that the legend can show other statistics info for each feature type, such sum of shape.length for lines and sum of shape.area for polygons. They should be bascially same (all are statistics information you can obtain by "summarize"), however, only count can be shown by default, without customization or coding. In the future other statistics info like total length and total area should be also options to show. It will be a huge plus to create report maps or add summary to the map without having to create a seperate summary table.
AubriKinghorn

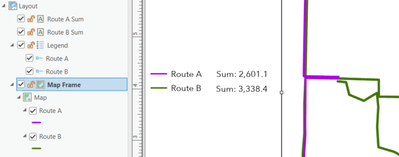

While there isn't a way to calculate statistics and have them display automatically in the legend, you can use table dynamic text to calculate statistics dynamically. You can then position this text anywhere on the layout, including near or on top of the legend. Learn more about  table dynamic text here: Add dynamic text—Layouts | ArcGIS Desktop
