Entering a traverse in ArcGIS Pro does NOT close but entering the same traverse in ArcMap DOES close. Help!

1367
3
12-02-2020 01:26 PM
Status: Open
MatthewBeal
Occasional Contributor III

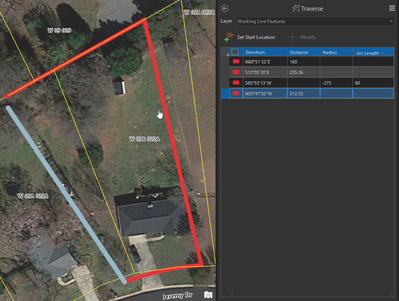

Here are the values  and drawing in ArcPro:

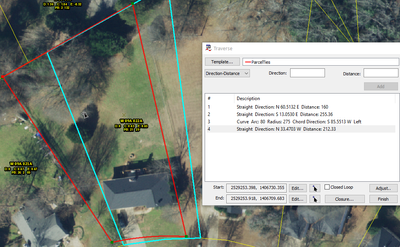

Here is the same thing done in ArcMap:


I hope I'm missing something obvious, but I've been trying for an hour now and can't figure it out. I'll also attach the traverse files from ArcMap and ArcPro.





3 Comments
jcarlson

The Pro traverse defaults to tangent direction when entering a curve. Try entering your curve bearing as 85-55-13-3 cb.

The "cb" tells Pro that you are entering a chord bearing rather than a tangent.

jcarlson

PS - You should check out the shortcuts for the Pro traverse, as there are a number of really handy ones. I don't see radial bearings and delta angles often, but being able to quickly and easily incorporate them into my traverse is really great.

https://pro.arcgis.com/en/pro-app/help/editing/enter-a-traverse.htm#GUID-5B9D1444-2C4D-4571-9A28-614...

AmirBar-Maor

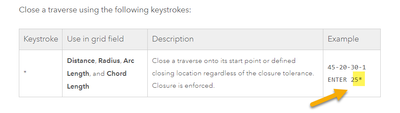

You can force closure with this shortcut or increase the closure tolerance.

https://pro.arcgis.com/en/pro-app/latest/help/editing/enter-a-traverse.htm#ESRI_SECTION1_48D0737641D...
