Feature service misallingment in ArcGIS Online. Alligns properly in ArcMap and Collector in offline mode.
Hi all,

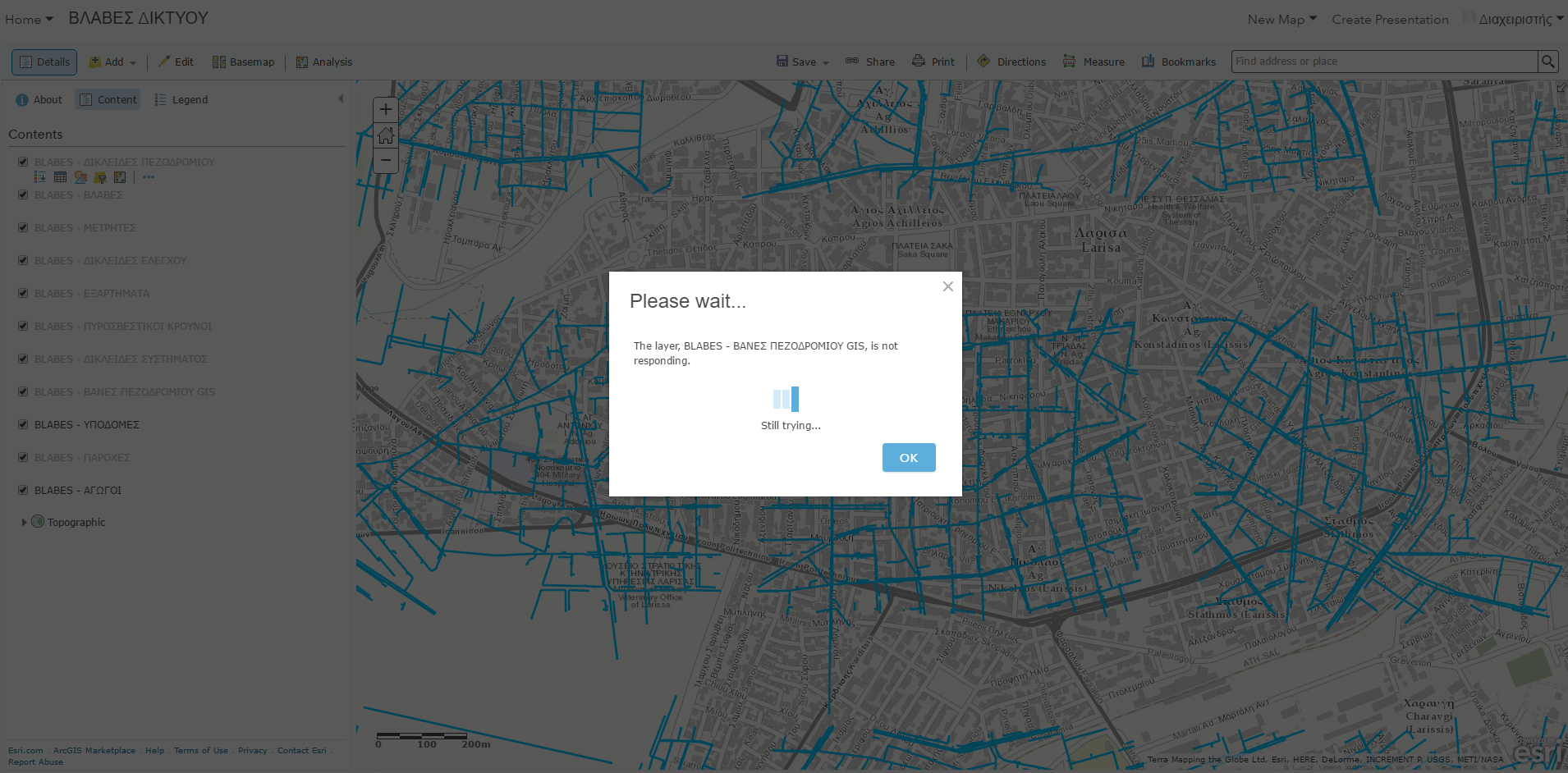

I have an issue with feature layers in ArcGIS Online. I am adding an ArcGIS server web service witch creates a feature layer and then i add the feature layer in a web map. There are 11 layers in the feature layer. When i try to open the webmap i get a message that a layer is not responding

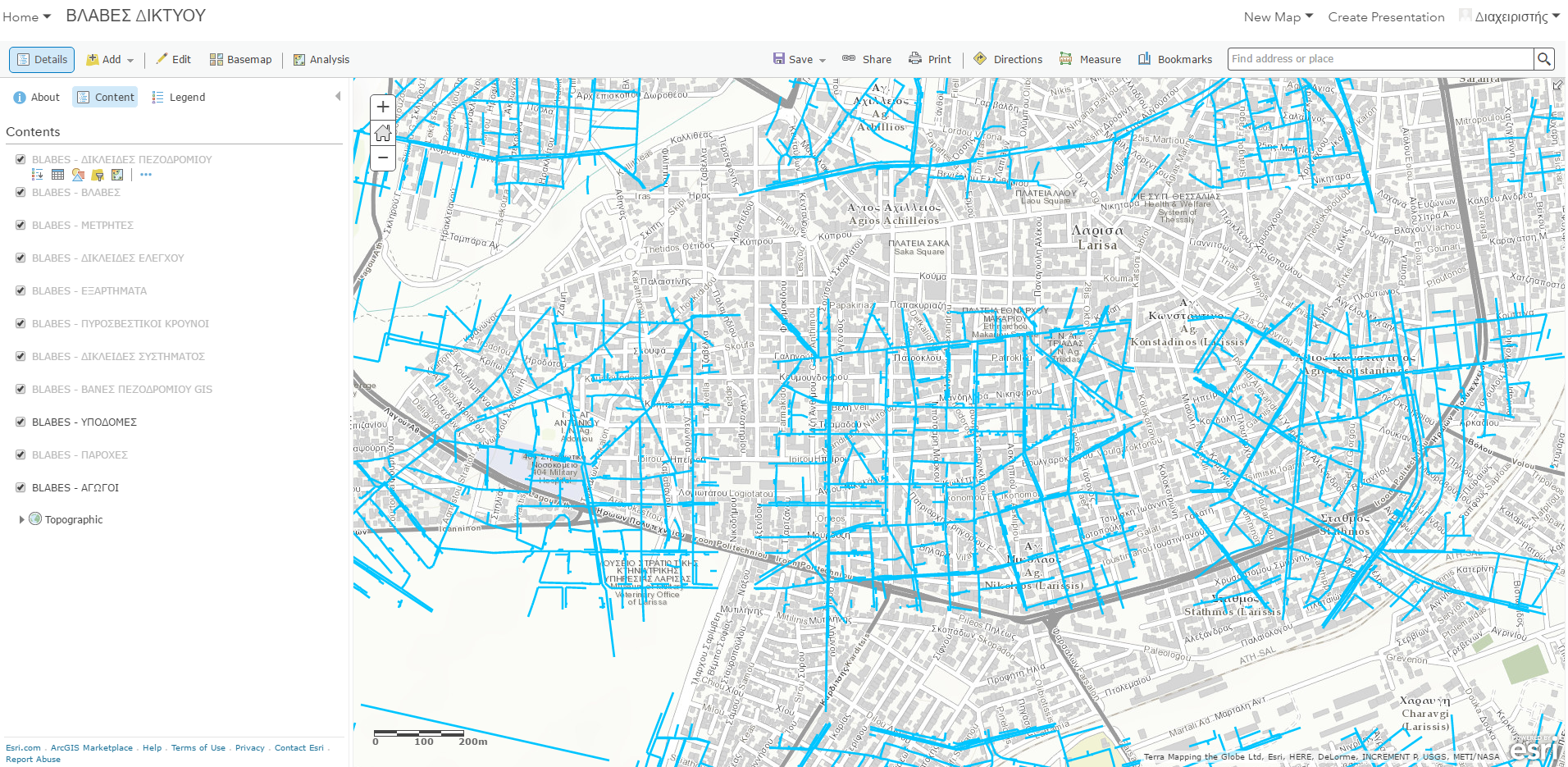

This is a water network map. As you can see the pipes are misalligned and some pipes are missing.
When i use the Collector app and download the map for offline use, they get alligned properly and there is nothing missing.
On another instance if i use a map image Layer everything shows up ok.
The spatial reference is Greek Grid (2100)
I am using ArcMap 10.4, Arcgis Server 10.4, the service details are as following (for one of the 11 layers)
Layer: ΔΙΚΛΕΙΔΕΣ ΠΕΖΟΔΡΟΜΙΟΥ (ID: 0)
Name: ΔΙΚΛΕΙΔΕΣ ΠΕΖΟΔΡΟΜΙΟΥ
Display Field: FACILITYID
Type: Feature Layer
Geometry Type: esriGeometryPoint
Description: This dataset contains a collection of features that represent the water distribution network in a community.
Definition Expression: N/A
Copyright Text:
Default Visibility: true
MaxRecordCount: 5000
Supported Query Formats: JSON, AMF, geoJSON
Min Scale: 2000
Max Scale: 0
Supports Advanced Queries: true
Supports Statistics: true
Use Standardized Queries: true
Supports ValidateSQL: true
Supports Calculate: false
Extent:
- XMin: 350329.08951833844
- YMin: 4373931.874201424
- XMax: 373356.6671507545
- YMax: 4398354.849961676
- Spatial Reference: 2100 (2100)
Symbol:
Label: Description:Transparency: 0
Labeling Info:Label Placement: esriServerPointLabelPlacementAboveRight
Label Expression:
Use Coded Values: true
Symbol:Color: [0, 0, 0, 255]
Background Color: [233, 255, 190, 255]
Outline Color: [0, 0, 0, 255]
Vertical Alignment: bottom
Horizontal Alignment: left
Right to Left: false
Angle: 0
XOffset: 0
YOffset: 0
Size: 8
Font Family: Arial
Font Style: normal
Font Weight: normal
Font Decoration: none
Min. Scale: 500.0
Max. Scale: 0.0
Advanced Query Capabilities:
- Supports Statistics: true
- Supports OrderBy: true
- Supports Distinct: true
- Supports Pagination: true
- Supports TrueCurve: false
HasZ: false
HasM: false
Has Attachments: false
HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText
Type ID Field:
Fields:
- too many to display
- too many to display
Drawing Tool: esriFeatureEditToolPoint
Sync Can Return Changes: true
Is Data Versioned: true
Supports Rollback On Failure: false
Supports ApplyEdits With Global Ids: false
Supported Operations: Query Apply Edits Add Features Update Features Delete Features Validate SQL Generate Renderer Return Updates
Does anyone have a clue?
Thank you.
