3D Multipatch not showing up in Web Scene

DevRobinson

My issue is kind of a double problem I'm having with ArcGIS Online's Web Scene viewer.

Firstly, it never lets me add a ground surface because I refuse to use the WGS coordinate system, I need state plane! So I am never able to have a 3D ground surface to view my 3D multipatches with. THIS IS A DUMB THING TO LIMIT, ESRI!

So I figured I would cheat and make a multipatch surface of my state's ground surface using a DEM, which worked fine. Where I'm pulling my hair out is trying to get it to show up in my web scene!

I upload the .slpk file I exported from ArcGIS Pro and loaded it into my content on ArcOnline, and then added it to my established web scene. And nothing happens! It says it's there, says it's loaded, but no multipatch surface anywhere! All of my other multipatch features show up just fine and in the coordinate system I want.

I checked EVERYTHING, and I mean everything. Transparency, color, it's just not showing up. And no, it's not because it's too big. I made sure it wasn't a crazy resolution. And it's not giving a load error or anything. And besides, an even bigger set of multipatch surfaces I have is able to load in just fine, so I am at a loss as to why this one is just being gas lit by ArcOnline.

And the file is there, I can download it from ArcOnline and load it back in ArcPro just fine, but it will not show up in my scene!

Somebody please help me explain why, especially Esri themselves. I am ripping my hair out over this.

Find more posts tagged with

Content Management

Sharing and collaboration

Mapping

Accepted answers

All comments

RussRoberts

Correct, you will need to use a 3D layer https://doc.arcgis.com/en/arcgis-online/reference/scene-layers.htm

For surfaces you could also publish an elevation layer and use that in your scene

https://doc.arcgis.com/en/arcgis-online/manage-data/publish-elevation-layers.htm

Koeller_Christine_A_-_DOT

Okay, so multipatch surfaces won't work with Scene viewer they way 3D polygons can be added and displayed, they have to be converted into SLPKs? Is there documentation on this? E.g., these z-enabled polygon features can be opened in Scene Viewer, and display fine. I think the enhancement would be enabling this same functionality for multipatch feature layers: Airport Trans 57 Approach Surfaces - Overview. Spatial Reference is: 102974 (102974)

RussRoberts

You will have to publish the multipatch as a scene layer. You can do this locally with a scene layer package and upload that to ArcGIS Online (for use in globe you can use web merc or WGS84). This case works if its just a static layer you do not expect to update often. If you ever need to update it we have a replace scene layer workflow where you swap out services within the items. If its one that requires updating you can publish a multipatch feature layer with a scene layer from Pro or you can publish the feature layer first to ArcGIS Online and then from the item details page publish that scene layer.

Some links to help

https://www.esri.com/arcgis-blog/products/arcgis-online/3d-gis/how-to-publish-scene-layers-in-arcgis-online

https://learn.arcgis.com/en/projects/share-digital-building-models-in-3D-web-scenes/

https://www.esri.com/arcgis-blog/products/arcgis-online/3d-gis/authoring-3d-layers-and-creating-web-scenes-in-arcgis-online

https://www.esri.com/arcgis-blog/products/arcgis-online/data-management/update-hosted-scene-layers-using-replace-layer

https://www.esri.com/arcgis-blog/products/arcgis-online/data-management/editing-and-updating-hosted-scene-layers

Koeller_Christine_A_-_DOT

Is there Esri documentation for using multipatch layers in the AGO Scene viewer? We have multipatch surfaces that we want to display, and we were told we had to use the web auxillary sphere CS to get them to display, which I agree is not ideal. But, I doubt I can get my IT to publish a custom 3D ground surface so I'm just looking for the documentation that tells me I have to use a certain CS with multipatch. 3D polygons work fine in other coordinate systems but MP doesn't? Help!

RussRoberts

If it is missing root node the scene layer could still be getting generated. If you are publishing from Pro check the jobs pane to check for it status or if you are publishing through Online you can track the job on the settings tab of the scene layer.

If the scene layer is not showing up can you share this case?

MatthewRBrennan

I am also having this problem. Either the 3D model successfully exports, but I get a "3D model cannot be added - scene service is missing root node" error, or alternatively, the 3D model simply doesn't show up, despite being "successfully" added to the web scene as a layer.

DevRobinson

I was not aware of this method, but I will try it going forward. Does it allow for a vertically exaggerated ground surface, though? I don't know of a way to change the vertical exaggeration of any layers in ArcOnline like in Pro. That's probably the main reason I used a multipatch for the ground in this case.

Thanks.

RussRoberts

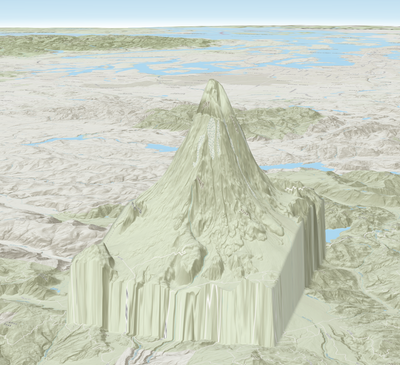

thanks taking a look at this now but I have one other question why not publish this DEM as an elevation layer vs. a multipatch and a 3D object and use that in KY state plane? This would be more performant vs trying to use a 3D Object scene layer across the state and you could drape layers over it for reference layers if you needed or offset layers against the ground.

https://doc.arcgis.com/en/arcgis-online/manage-data/publish-elevation-layers.htm

DevRobinson

How would I change the web scene to a local scene? Even when I export a local scene from ArcPro it doesn't carry over the ground, shouldn't it make a local web scene by default in that case? You're the first helpful answer to this problem.

And here is the scene layer that won't show up.

https://kygs.maps.arcgis.com/home/item.html?id=77bd682204334e2d9b2b8d1122b66793

RussRoberts

For your first question about using your own elevation layer - We don't allow mixed cached tiling schemes. You are trying to load in an elevation layer in a different tiling scheme which is in a projected coordinate system while the global web scene is in a geographic. Web clients currently cannot reproject tiles bc it would be an extremely heavy task and that is something a desktop client like Pro can do. If you change to a local scene and have a stateplane basemap for example you can add in the elevation layer that has the same tiling scheme.

Can you share the scene layer or SLPK and I can see what might be happening with displaying it in the web scene?
