Is it possible to make dashed line symbol with outline?

375
2
Jump to solution
11-09-2023 11:08 AM
ViktorSafar
Occasional Contributor II

Can a symbol like the one below be made? It is a line symbol, with outline, dashed.


I have played with CIMGeometricEffectDashes but it does not look good 🙂

https://codepen.io/viktor-safar-geodata/pen/abXWBVZ




0 Kudos
1 Solution

Accepted Solutions
AnneFitz
Esri Regular Contributor

The order that you apply the effects makes a difference -- so try doing dashes first, then the buffer effect.

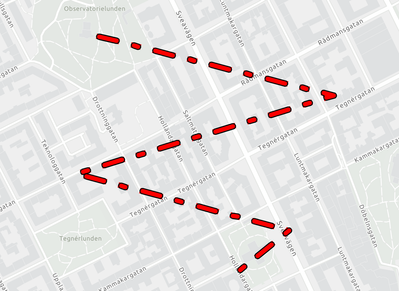

Screenshot 2023-11-09 at 11.32.55 AM.png

View solution in original post

2 Replies
AnneFitz
Esri Regular Contributor

The order that you apply the effects makes a difference -- so try doing dashes first, then the buffer effect.

Screenshot 2023-11-09 at 11.32.55 AM.png

ViktorSafar
Occasional Contributor II

If anyone is looking for this, I have updated the code pen

https://codepen.io/viktor-safar-geodata/pen/abXWBVZ
