CIM Symbol issue

604
3
11-02-2022 05:31 AM
MatthieuThery1
Occasional Contributor

Hi, I'm trying to add a CIM symbol to one of our Renderer but it doesn't seem to work. I'm not sure which bit of it is not supported (CIMTextSymbol with CIMVectorMarker seems to be supported according to doc?)

{
        "type": "CIMPolygonSymbol",
        "symbolLayers": [
          {
            "size": 10,
            "type": "CIMVectorMarker",
            "frame": {
              "xmax": 141.9824757732327,
              "xmin": 0,
              "ymax": 175.99649819859255,
              "ymin": 0
            },
            "enable": true,
            "clippingPath": {
              "path": {
                "rings": [
                  [
                    [
                      0.7087311602657206,
                      -0.7122125324085005
                    ],
                    [
                      142.70873116026573,
                      -0.7122125324085005
                    ],
                    [
                      142.70873116026573,
                      175.2877874675915
                    ],
                    [
                      0.7087311602657206,
                      175.2877874675915
                    ],
                    [
                      0.7087311602657206,
                      -0.7122125324085005
                    ]
                  ]
                ]
              },
              "type": "CIMClippingPath",
              "clippingType": "Intersect"
            },
            "respectFrame": true,
            "markerGraphics": [
              {
                "type": "CIMMarkerGraphic",
                "symbol": {
                  "type": "CIMTextSymbol",
                  "height": 82.99999505281448,
                  "symbol": {
                    "type": "CIMPolygonSymbol",
                    "symbolLayers": [
                      {
                        "type": "CIMSolidFill",
                        "color": [
                            0,
                            0,
                            0,
                            100
                          ],
                        "enable": true
                      }
                    ]
                  },
                  "depth3D": 1,
                  "hinting": "Default",
                  "kerning": true,
                  "fontType": "TTOpenType",
                  "haloSize": 1,
                  "textCase": "Normal",
                  "ligatures": true,
                  "countryISO": "GBR",
                  "fontEffects": "Normal",
                  "languageISO": "eng",
                  "letterWidth": 100,
                  "lineGapType": "ExtraLeading",
                  "wordSpacing": 100,
                  "fontEncoding": "Unicode",
                  "fontStyleName": "Regular",
                  "textDirection": "LTR",
                  "drawSoftHyphen": true,
                  "fontFamilyName": "Calibri",
                  "billboardMode3D": "FaceNearPlane",
                  "blockProgression": "TTB",
                  "verticalAlignment": "Baseline",
                  "horizontalAlignment": "Left",
                  "extrapolateBaselines": true,
                  "verticalGlyphOrientation": "Right"
                },
                "geometry": {
                  "x": 51.544664845568455,
                  "y": 51.3164065632746
                },
                "textString": "E"
              }
            ],
            "billboardMode3D": "FaceNearPlane",
            "markerPlacement": {
              "seed": 13,
              "type": "CIMMarkerPlacementInsidePolygon",
              "stepX": 16,
              "stepY": 16,
              "clipping": "ClipAtBoundary",
              "gridType": "Fixed",
              "randomness": 100
            },
            "anchorPointUnits": "Relative",
            "dominantSizeAxis3D": "Y",
            "scaleSymbolsProportionally": true
          },
          {
            "type": "CIMSolidStroke",
            "color": [
                0,
                0,
                0,
                100
              ],
            "width": 0.4,
            "enable": true,
            "capStyle": "Round",
            "joinStyle": "Round",
            "miterLimit": 10,
            "lineStyle3D": "Strip"
          },
          {
            "type": "CIMSolidFill",
            "color": [
                255,
                255,
                190,
                100
              ],
            "enable": true
          }
        ]
      }



0 Kudos
3 Replies
AnneFitz
Esri Regular Contributor

Hi - your symbol appears to be working as expected for me.  

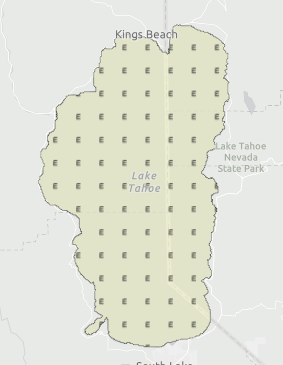

Screen Shot 2022-11-02 at 8.33.42 AM.png

Here's a codepen: https://codepen.io/annefitz/pen/yLEOgeE

Hope that helps! If you're still running into an issue with this symbol - then please provide some more information (screenshots, error messages, etc). Thanks!

0 Kudos
MatthieuThery1
Occasional Contributor

Based on your codepen it looks like it works fine with 4.25 (doesn't work with 4.24) so I guess there's some increased support for CIM symbols which is great

AnneFitz
Esri Regular Contributor

Oh sorry I didn't even notice that 😅 Yes, we have improved CIM support in 4.25, which is scheduled for release next week.
