JeffLiedtke
Occasional Contributor II

ArcGIS Enterprise configured for Raster Analytics enables large and small organizations to distribute and scale raster processing, storage and sharing to meet requirements for unique projects. This flexibility and elasticity also allows you to pursue projects that were previously out of reach due to hardware, software, personnel, or cost constraints. An overview of Raster Analytics concepts and advantages is described in the article Imagery Superpowers – Raster analytics expands imagery use in GIS.

Raster Analytics Processing Workflow

To help you become familiar with the benefits of Raster Analytics, Esri is offering a new Learn Lesson for ArcGIS Enterprise users. The lesson guides you through the process of configuring your Enterprise system for Raster Analytics, shows you how to use raster processing tools and functions to assess potential landslide risk associated with wildfire. The analysis is run on your distributed processing system, and the results are published to your Enterprise portal for ease of sharing across your organization. The lesson is a practical guide for implementing a Raster Analytics deployment, and demonstrating how standard ArcGIS Pro tools and functionality can be used to run distributed processes behind your firewall and in the cloud, and shared with stakeholders across your enterprise. Check out this story map, which gives you a more detailed overview of what the lesson involves.

Drag and drop tools into the function editor to create raster function chains.

Ready to try it out? If you want to extend your capabilities with Raster Analytics for increased productivity, test out the lesson and see why users are excited about the opportunity to address demanding projects in a more effective and efficient manner.

Many Thanks to Katy Nesbitt (knesbitt@esri.com) for co-authoring this article.

more
0 0 392
JeffLiedtke
Occasional Contributor II

Raster analytics using ArcGIS Enterprise is a flexible raster processing, storage, and sharing system that employs distributed computing and storage technology. Use raster analytics to apply the rich set of raster processing tools and functions offered in ArcGIS, build your own custom functions and tools, or combine multiple tools and functions into raster processing chains to execute your custom algorithms on large collections of raster data. Source data and processed results are stored, published and shared across your enterprise accordingly.

This extensive capability can be further expanded by leveraging cloud computing capabilities and resources.  The net result: image processing and analysis jobs that used to take days or weeks can now be done in minutes or hours, and jobs that were impossibly large or too daunting are now within easy reach.

What can raster analytics do?

By leveraging ArcGIS Enterprise, raster analytics enables you to:

  • Quickly process massive imagery or raster datasets in a scalable environment
  • Execute advanced, customized raster analysis
  • Share results with individuals, departments, and organizations within or outside your enterprise

Raster analytics is ArcGIS Image Server configured for raster analysis in a processing and storage environment that maximizes processing speed and efficiency.  Built-in tools and functions cover preprocessing, orthorectification and mosaicking, remote sensing analysis, and an extensive range of math and trigonometry operators; your custom functions can extend the platform’s analytical capabilities even further.

Fully utilize your existing ArcGIS Image Server on-site, or exploit the elastic processing and storage capacity of cloud computing and storage platforms such as Amazon Web Services and Microsoft Azure to dynamically increase or reduce your capacity depending on the size and urgency of your projects.  The scalable environment of raster analytics empowers you to implement computationally intensive image processing that used to be out of reach or cost-prohibitive. This implementation saves you time, money, and resources.

Raster analytics is also designed to streamline and simplify collaboration and sharing. Users across your enterprise can contribute data, processing models, and expertise to your imagery project, and share results with individuals, departments, and organizations in your enterprise.

Finally, Raster analytics using ArcGIS Enterprise integrates your image processing and analysis with the world’s leading GIS platform, and allows users to seamlessly draw on the world’s largest collection of online digital maps and imagery.

How does raster analytics work?

ArcGIS Image Server configured for the role of raster analytics provides software and user interfaces to organize and manage your processing, storage, and sharing of raster and feature data, maps, and other geographic information on a variety of devices. This integrated system manages the dissemination of processing and storage of results (1) on-premises and behind the firewall for classified deployments, (2) in cloud processing and storage environments, or (3) a combination of both environments.

The foundation of raster analytics is ArcGIS Enterprise, which includes an Enterprise GIS Portal, ArcGIS Data Store, Image Server configured for raster analytics, raster data store and ArcGIS Web Adaptor. ArcGIS Enterprise integrates the components of the raster analytics system to support scalable, real-world workflows.

Scale your powerful processing and storage capabilities by deploying ArcGIS Enterprise in the cloud via Microsoft Azure or Amazon Web Services (AWS). For example, you can automatically scale capacity up and down according to conditions you define, or automatically dispense application traffic across multiple instances for better performance. ArcGIS Enterprise makes deployment easier by providing Cloud Builder for Microsoft Azure or AWS CloudFormation with sample templates to configure and deploy your system in the cloud.

Develop, test and optimize your raster processing chains using Esri’s rich set of more than 200 functions and tools in the familiar ArcGIS Desktop or web map viewer. Once verified and optimized in the dynamic on-the-fly processing environment, submit your processing chain to ArcGIS Portal, which manages the distribution of processing, storage, and publication of results.

The ideal deployment of raster analytics is comprised of three server sites to perform the primary roles of the portal host server, raster analysis server, and the image hosting server. Two licenses are required for raster analytics, ArcGIS Enterprise and Image Server.

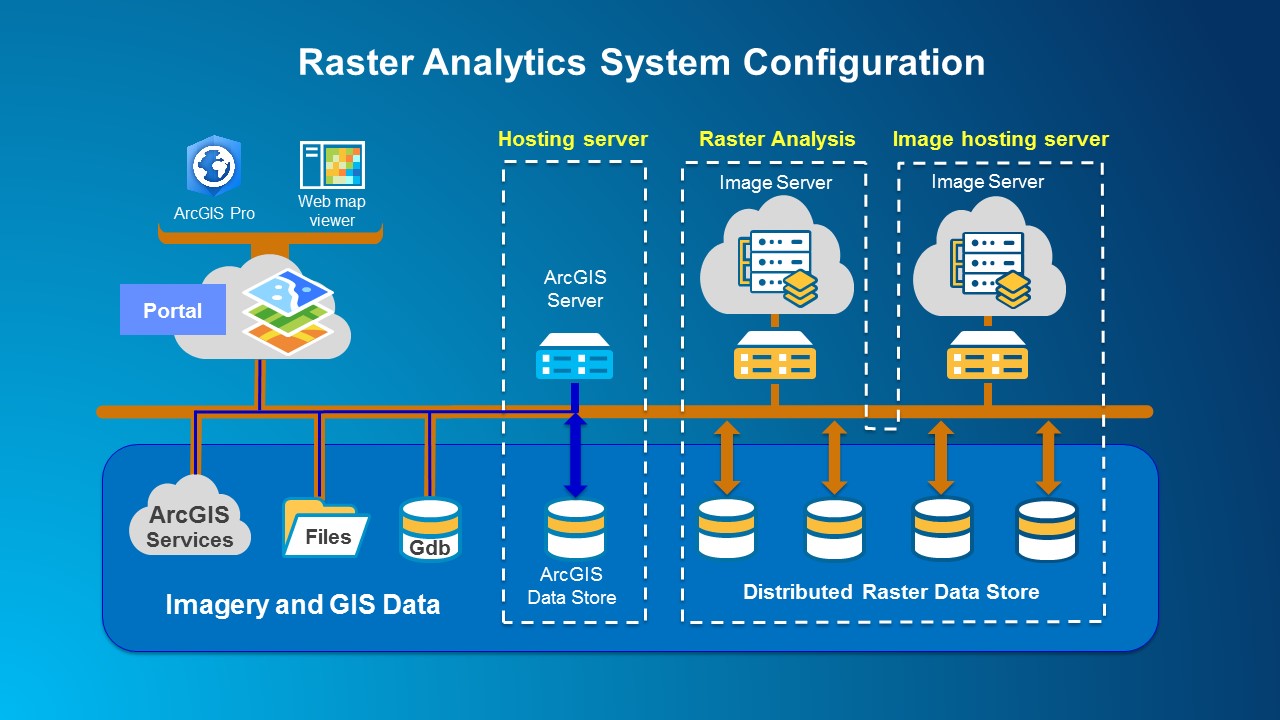

Raster Analytics System Diagram

The hosting server is your portal’s server for standard portal administration and operations such as managing and dispensing processing, storage, and publication of results to raster analysis servers, image servers, and data stores.  It also hosts the ArcGIS Data Store for GIS data and allows users to publish data and maps to a wider audience as web services.

Raster analytics jobs are processed by image servers dedicated for raster analytics, comprised of one or more servers, each with multiple processing cores. The image processing and raster analytics tasks are distributed at the tile level or scene level depending on the tools and functions used. Raster analytics manages the processing results to either the ArcGIS Data Store on the hosting server for feature data products, or to the raster data store for imagery and raster data products. The raster data store can be implemented using distributed file share storage or using cloud storage such as Amazon S3 or Microsoft Azure blob storage.

The image hosting server hosts all the image services generated by the raster analysis server. It includes the raster data store configured with the Image Server Manager, which manages distributed file share storage and cloud storage of image services using Amazon S3 or Microsoft Azure blob storage. The image hosting server stores and returns results requested by members of your enterprise.

System configuration apps assign the roles of the servers and data stores, and also set the permission structure for all the users across your enterprise. This facilitates optimal flexibility in configuring and implementing your raster analytics system to address specific projects. Multiple servers can be scaled up for raster analytics processing and storage as required.

See the tutorial to set up a base ArcGIS Enterprise deployment.

More Information

To learn more about raster analytics using ArcGIS Enterprise and ArcGIS Image Server, check out this video.

Explore these help topics to get started with raster analytics:

To see how raster analytics is being used, check out the Chesapeake Conservancy and Distributed Image Processing presentation, or attend the Plenary session at the 2017 Esri User Conference in San Diego to hear about Chesapeake Conservancy’s experience processing and sharing the entire Chesapeake watershed using raster analytics.

Please plan to attend a few presentations addressing raster analytics at the 2017 Esri User Conference:

Raster Analytics at Esri UC2017

more
1 0 609
JeffLiedtke
Occasional Contributor II

Imagery can add valuable information and context to a wide array of GIS projects. For example, you can detect impervious surfaces for storm water management, map and manage riparian corridors, or track what’s changing in your county. Sometimes, though, incorporating imagery into your GIS can feel overwhelming—how can your system handle that much data?

Enter raster analytics, a distributed processing, storage, and sharing system designed to quickly process large collections of aerial, drone, or satellite imagery, then extract and share meaningful information for critical decision support. Raster analytics can be run locally, but you can also pair it with distributed cloud computing to maximize efficiency. Image processing and analysis jobs that used to take days or weeks can be completed in minutes or hours, bringing imagery projects that were impossibly large or daunting within reach.

Raster analytics leverages ArcGIS Enterprise, expanded with ArcGIS Image Server configured for distributed raster analysis, to integrate the components of the raster analytics system to support scalable, real-world workflows

What can raster analytics do?

By leveraging ArcGIS Enterprise with ArcGIS Image Server, raster analytics enables you to:

  • Quickly process massive imagery or raster datasets in a scalable environment
  • Execute advanced, customized raster analysis
  • Share results with individuals, departments, and organizations within or outside your enterprise

The scalable environment of raster analytics empowers you to perform computationally intensive image processing that would otherwise be out of reach or cost-prohibitive. When implemented on-site, raster analytics uses distributed processing to improve efficiency. You can also maximize efficiency by exploiting cloud platforms such as Amazon Web Services or Microsoft Azure, which allow you to dynamically increase or reduce your capacity based on the size and urgency of your projects.  Either implementation can save you time, money, and resources.

Raster analytics uses all the advanced image processing and analysis capabilities of ArcGIS Pro to maximum advantage. Built-in raster functions cover preprocessing, orthorectification and mosaicking, remote sensing analysis, and an extensive range of math and trigonometry operators, while your custom functions can extend the platform’s analytical capabilities even further.

Raster Analytics System Diagram

Raster analytics is also designed to streamline collaboration and sharing. Users across your enterprise can contribute data, processing models, and expertise to your imagery project, then share results with individuals, departments, and organizations in your enterprise.

Finally, raster analytics integrates your image processing and analysis with the world’s leading GIS platform, and allows users to seamlessly draw on Living Atlas of the World, the world’s largest collection of online digital maps and imagery.

How is raster analytics used today?

The Chesapeake Conservancy, working with the University of Vermont and WorldView Solutions, was tasked by the Chesapeake Bay Program to produce one-meter-resolution land cover maps covering 100,000 square miles of the Chesapeake Bay watershed. These high-resolution land cover maps, which classify natural and man-made landscape features, are crucial for supporting watershed and storm water management, conservation, and for reducing pollution into the bay.

To produce this essential dataset, the Chesapeake Conservancy needed to process over 20 terabytes of raster data and categorize it into twelve land cover types. This project took a daunting 18 months to complete using their local machine resources. As a result, Chesapeake Conservancy is now working with raster analytics in the cloud to make this timeline more efficient and cost-effective going forward.

As a proof of concept, they used raster analytics to produce a persistent one-meter land cover dataset of Kent County, Delaware (798 square miles). The Kent County project—comprised of more than 30GB and 3.8 billion pixels of raster data—ran on a ten-machine cluster, each with twenty cores, and completed in less than 5 minutes. This same job took days to to process on their local machines.

The Chesapeake Conservancy is now engaged in reprocessing the entire Chesapeake watershed to benchmark time and cost savings using raster analytics for the project. Using raster analytics for projects in the future will mean that the Chesapeake Conservancy can accomplish ambitious projects in a timely and cost-effective manner, without having to spend resources to acquire, configure, and maintain a large computing and storage infrastructure.

See the Chesapeake Conservancy and Distributed Image Processing presentation for more details, or check out the Plenary session at the 2017 Esri User Conference in San Diego to hear about Chesapeake Conservancy’s experience processing and sharing the entire Chesapeake watershed using raster analytics

More Information:

To learn more about raster analytics using ArcGIS Enterprise and ArcGIS Image Server, check out this video.

Explore these help topics to get started with raster analytics:

Please plan to attend a couple presentations addressing raster analytics at the 2017 Esri User Conference:

Raster Analytics at Esri UC2017
