Legend creation - space character issue in 2.6

641
3
Jump to solution
11-16-2020 11:15 PM
ThanHtetAung_EsriAu
Esri Regular Contributor

Hi Guys,

I have code dynamically generate the legend.

Working well with 2.5

In 2.6, the spacing seem to be issue.

What is the changes in 2.6 related to layout tool legend objects?

I am using usual approach like create legend and changing font from the CIMLegend from definition.

Legend resultLegend = LayoutElementFactory.Instance.CreateLegend(activeLayoutView.Layout, leg_env, activedMapFrame);

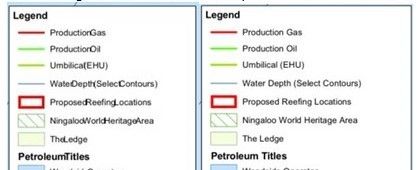

Below is the screenshot, left is 2.6, right is 2.5

Left legend is 2.6, Right Legend is 2.5Left legend is 2.6, Right Legend is 2.5



Any Idea? @UmaHarano  @Wolf

0 Kudos
1 Solution

Accepted Solutions
ThanHtetAung_EsriAu
Esri Regular Contributor

Hi Guys,

I managed to solve this issue.

The problem is at generating the text symbol.

Have to add the following properties to make spacing work properly in 2.6 and 2.7.

destinationTextSymbol.LetterWidth = 100;
destinationTextSymbol.WordSpacing = 100;
destinationTextSymbol.Kerning = true;
destinationTextSymbol.Ligatures = true;
destinationTextSymbol.FontType = FontType.TTOpenType;
destinationTextSymbol.ExtrapolateBaselines = true;
destinationTextSymbol.HaloSize = 1;



Best Regards,

Than

View solution in original post

0 Kudos
3 Replies
ThanHtetAung_EsriAu
Esri Regular Contributor

Hi Guys,

I managed to solve this issue.

The problem is at generating the text symbol.

Have to add the following properties to make spacing work properly in 2.6 and 2.7.

destinationTextSymbol.LetterWidth = 100;
destinationTextSymbol.WordSpacing = 100;
destinationTextSymbol.Kerning = true;
destinationTextSymbol.Ligatures = true;
destinationTextSymbol.FontType = FontType.TTOpenType;
destinationTextSymbol.ExtrapolateBaselines = true;
destinationTextSymbol.HaloSize = 1;



Best Regards,

Than

0 Kudos
GyanendraGurung
New Contributor III

Hi,

I am also trying to customize my legend. Your solution is to use destinationTextSymbol in controlling the text properties in the legend. Can you please elaborate a bit on this solution?

The following is my code for creating a legend. But after that, I am confused on HOW and WHERE to insert CIMTextSymbol reference such as your destinationTextSymbol. Can you please help me with that? Thanks.

Coordinate2D llLegend = new Coordinate2D(10, 10);
Coordinate2D urLegend = new Coordinate2D(100, 50);
Envelope leg_env = EnvelopeBuilder.CreateEnvelope(llLegend, urLegend);
LayoutElementFactory.Instance.CreateLegend(layout, leg_env, mfElm);



0 Kudos
ThanHtetAung_EsriAu
Esri Regular Contributor

Hi @GyanendraGurung ,



Here is the code snippet, the destinationTextSymbol is the variable actually,

Sorry, I didn't post full set of code earlier.

Let me know when you got issue,







//Separate method
public void FormatDefaultArialTextSymbol(CIMTextSymbol sourceTextSymbol, CIMTextSymbol destinationTextSymbol, string FontStyleName, double fontSize, double height)
        {
            destinationTextSymbol.CopyFrom(sourceTextSymbol);
            destinationTextSymbol.FontStyleName = FontStyleName;
            destinationTextSymbol.FontFamilyName = "Arial";

            destinationTextSymbol.Height = height;
            destinationTextSymbol.SetSize(fontSize);
            destinationTextSymbol.ExtrapolateBaselines = false;
            destinationTextSymbol.VerticalAlignment = VerticalAlignment.Center;
            destinationTextSymbol.BillboardMode3D = BillboardMode.None;
            destinationTextSymbol.Symbol3DProperties = new CIM3DSymbolProperties()
            {
                DominantSizeAxis3D = DominantSizeAxis.Z,
                ScaleY = 0,
                ScaleZ = 0,
                RotationOrder3D = RotationOrder.XYZ
            };
            //from 2.6 - word spacing and letter width are required to set and ,need to be 100
            destinationTextSymbol.LetterWidth = 100;
            destinationTextSymbol.WordSpacing = 100;
            destinationTextSymbol.Kerning = true;
            destinationTextSymbol.Ligatures = true;
            destinationTextSymbol.FontType = FontType.TTOpenType;
            destinationTextSymbol.ExtrapolateBaselines = true;
            destinationTextSymbol.HaloSize = 1;

        }


/// actual code
//Get layout and map frame first
 LayoutView activeLayoutView = LayoutView.Active;

 MapFrame activedMapFrame = activeLayoutView.ActiveMapFrame;

ProgressorSource ps = new ProgressorSource("Adding Legend...");
                    QueuedTask.Run(() =>
                    {
                        Console.WriteLine("Create legend area");
                        //Search for a style project item by name
                        StyleProjectItem arcgis_2dStyle = Project.Current.GetItems<StyleProjectItem>().First(si => si.Name == "ArcGIS 2D");
                        Envelope mapFrameExtent = (activedMapFrame.GetDefinition() as CIMMapFrame).Frame.Extent;
                        double xmin = mapFrameExtent.XMax - (mapFrameExtent.Width / 4);
                        double bufferX = mapFrameExtent.Width * 0.01;
                        double bufferY = mapFrameExtent.Height * 0.01;//1%
                        double xmax = mapFrameExtent.XMax - bufferX;
                        double ymax = mapFrameExtent.YMax - bufferY;
                        double ymin = mapFrameExtent.YMin + bufferY;
                        Envelope leg_env = EnvelopeBuilder.CreateEnvelope(xmin, ymin, xmax, ymax);
                        Legend resultLegend = LayoutElementFactory.Instance.CreateLegend(activeLayoutView.Layout, leg_env, activedMapFrame);

                        CIMLegend legendDef = resultLegend.GetDefinition() as CIMLegend;
                        legendDef.Title = "Legend";
                        legendDef.ShowTitle = true;
                        SymbolStyleItem paragraph = arcgis_2dStyle.SearchSymbols(StyleItemType.TextSymbol, "Paragraph").FirstOrDefault();
                        CIMTextSymbol aParaSymbol = paragraph.Symbol as CIMTextSymbol;

                        FormatDefaultArialTextSymbol(aParaSymbol, (legendDef.TitleSymbol.Symbol as CIMTextSymbol), "Bold",12,8);

                        legendDef.AutoAdd = true;
                        legendDef.AutoFonts = true;
                        legendDef.AutoVisibility = true;
                        legendDef.FittingStrategy = LegendFittingStrategy.AdjustColumnsAndSize;
                        ps.Message = "Adding Legend - Formatting Text";
                        foreach (CIMLegendItem legItem in legendDef.Items)
                        {
                            FormatDefaultArialTextSymbol(aParaSymbol, (legItem.HeadingSymbol.Symbol as CIMTextSymbol), "Regular",8, 8);
                            FormatDefaultArialTextSymbol(aParaSymbol, (legItem.LabelSymbol.Symbol as CIMTextSymbol), "Regular",8, 8);
                            FormatDefaultArialTextSymbol(aParaSymbol, (legItem.DescriptionSymbol.Symbol as CIMTextSymbol), "Regular",8, 8);
                            FormatDefaultArialTextSymbol(aParaSymbol, (legItem.LayerNameSymbol.Symbol as CIMTextSymbol), "Bold", 9, 8);
                            FormatDefaultArialTextSymbol(aParaSymbol, (legItem.GroupLayerNameSymbol.Symbol as CIMTextSymbol), "Bold", 9, 8);

                            legItem.AutoVisibility = true;
                        }

                        resultLegend.SetName("Legend");

                        resultLegend.SetDefinition(legendDef);
                    }, ps.Progressor);
